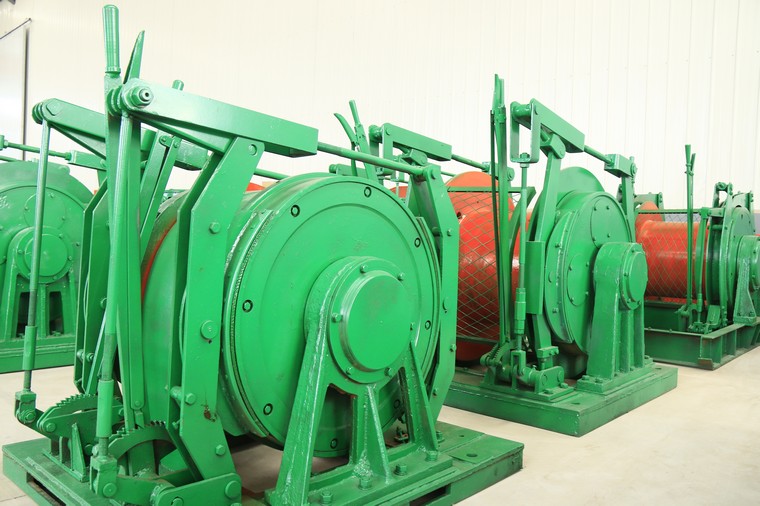

JD-1.6 type dispatching winch is used to dispatch marshalling trucks in underground or at ground loading stations and in intermediate lanes and other auxiliary handling operations. The winch uses explosion-proof electrical equipment and can be used in coal dust and gas mines. It adopts the form of planetary gear transmission, which has the characteristics of compact structure and small volume, and is easy to operate.
Model
JD-1.6
Traction Force
16 KN
Outer wire rope speed
1.399 m/s
Capacity
400 m
Wire rope diameter
16 mm
Roll size (diameter x width)
φ310×400 mm
Motor model
YBJ25-4
Motor Power
25 kw
Motor speed
1460 r/min
Voltage
380/660 V
Total speed ratio
32.5
Dimension
1435*1217*1242 mm
Weight
1187 kg (excluding motor)
1370 kg (including motor)
