Underground Prop Pulling Winch

Underground Prop Pulling Winch

Date:2019-12-05     Label:

Two Speed Winch

Winch

Mining Winch

Prop Pulling Winch

JDM series dispatching winch is widely used in mining coal, coal preparation plant, power plants, metallurgical mines, steel mills, cement factories, ports and other places train scheduling.

Contact Us Product Center
Introduction of

Underground Prop Pulling Winch

China Coal Group is China Leading Underground Coal Mining Winch Manufacturer, we provide full range of mining winches including Scraper Winch, Dispatching Winch, Prop Pulling Winch, Double Speed Winch, JK High Speed Winch, JM Low Speed Winch, Shaft Sinking Winch, Mining Lifting Winch, Air Winch, Air Scraper Winch, Diesel Winch, and so on.

MAIN PARAMETER OF

Underground Prop Pulling Winch

Model
Parameter

JH-5

JH-8

JH-14

JH-20

JH-30

Steel wire rope
average static tension (KN)

50

80

140

200

300

Steel wire rope (m/s)
average speed

0.17

0.12

0.115

0.118

0.13

Drum

diameter* width (mm)

276* 372

280* 230

400* 317

430* 530

550*560

rope capacity (m)

80

100

130

170

220

Steel wire
rope

diameter

15.5

17

21.5

24.5

30

construction

6* 19

6* 19

6* 19

6* 19

6* 19

nominal extension strength (M pa)

1550

1550

1550

1550

1570

Explosion proof
motor

Model

YBJ7.5-4

YBK2-160M-6

YBK2-200L1-6

YBK2-200L2-6

YBK2-280S-4

Power (KW)

7.5

7.5

18.5

22

45

Voltage (V)

380/660

380/660

380/660

380/660

380/660

Rotate speed (r/min)

1450

970

970

970

980

Overall size:
length* width* height

1450* 512* 515

1550* 530* 570

1955* 680* 815

2560* 968* 797

3300*1077*1034

Winch weight (including motor)

620

650

1350

2600

4460

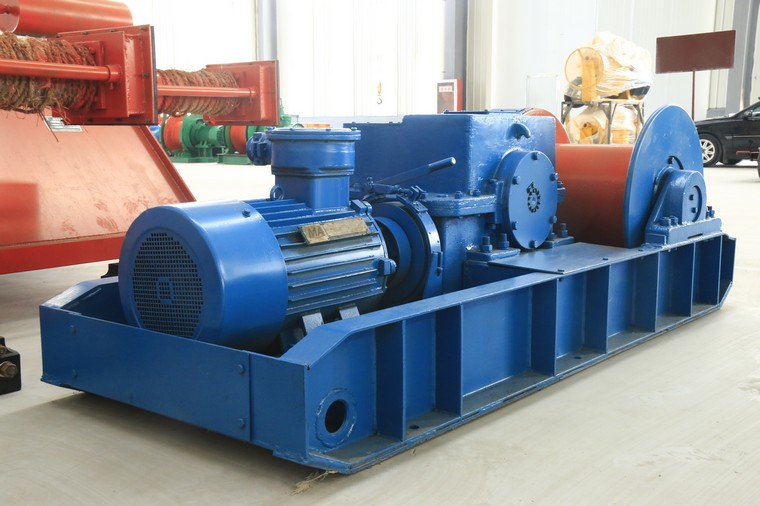

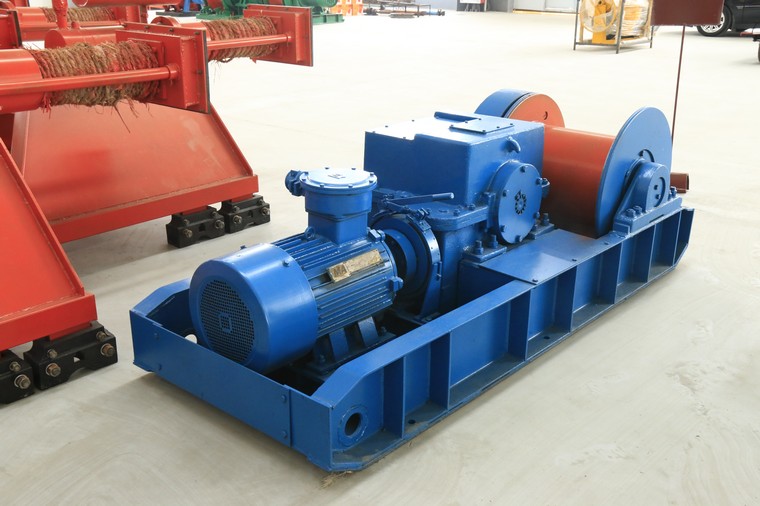

PHOTOS OF

Underground Prop Pulling Winch

Underground Prop Pulling Winch
Underground Prop Pulling Winch
PHOTOS OF

Underground Prop Pulling Winch
