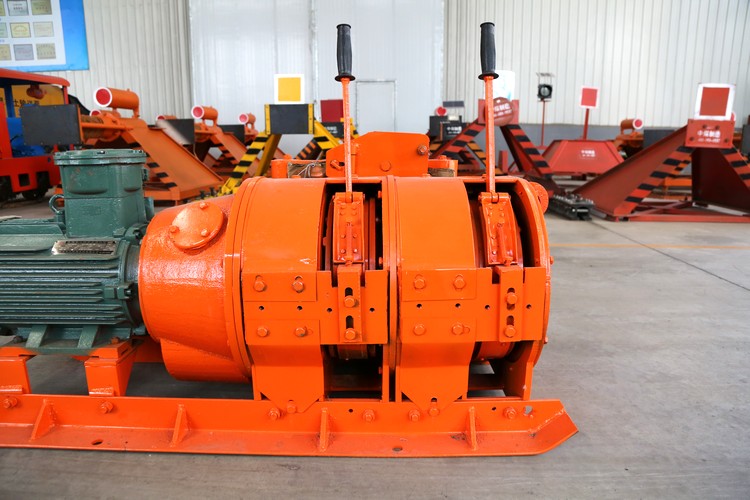

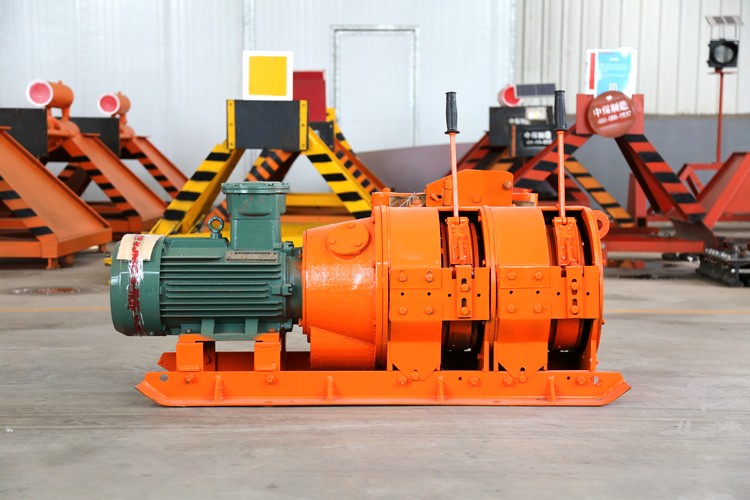

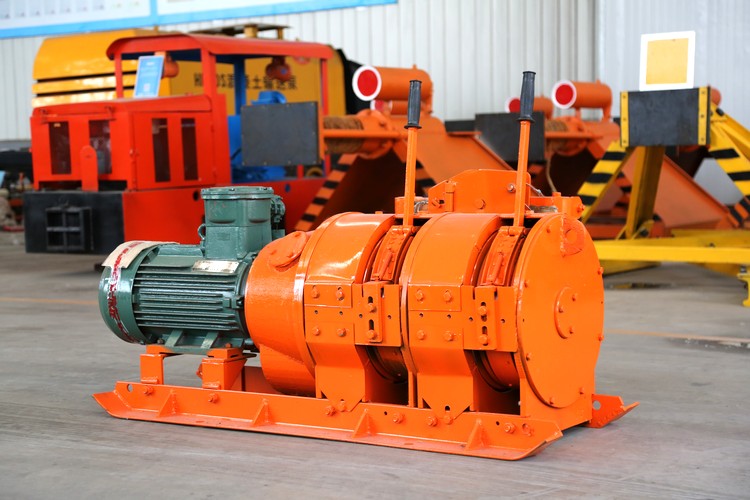

Features of 2JP(B)-30 Metal Mine Slusher Hoist Winch 1. scraper winch 2. high quality and excellent performance 3. widely used in mine 4. standard packing and short delivery
Contact Us Product Center
1. scraper winch
2. high quality and excellent performance
3. widely used in mine
4. standard packing and short delivery
Remark: The scraper winch can not be used as the lifting equipment. If you want to lifting things, please choose the lifting winch, such as JD winch, JH winch, etc.
By way of the hoist is around on the wire rope drum traction for a round-trip movement to rake the material.
|
项目 |
unit |
Model |
|||||
|
2JPB-7.5 |
2JPB-15 |
2JPB-22 |
2JPB-30 |
2JPB-55 |
|||
|
2JP-7.5 |
2JP-15 |
2JP-22 |
2JP-30 |
2JP-55 |
|||
|
主钢丝绳平均拉力不少于 Main wire rope Min. tension |
N |
8000 |
14000 |
20000 |
275000 |
44000 |
|
|
平均速度 |
Main wire rope |
±5%m/s |
1.0 |
1.10 |
1.20 |
1.20 |
1.20 |
|
Secondary wire rope |
1.0 |
1.50 |
1.50 |
1.60 |
1.80 |
||
|
钢丝绳直径 |
Main wire rope |
mm |
9.3 |
12.5 |
14.0 |
15.5 |
18.5 |
|
Secondary wire rope |
9.3 |
11.0 |
11.0 |
14.0 |
16.0 |
||
|
卷筒 |
Dia. |
mm |
205 |
225 |
280 |
280 |
350 |
|
Rim diameter |
mm |
350 |
435 |
510 |
510 |
625 |
|
|
Width |
mm |
80 |
125 |
160 |
160 |
180 |
|
|
容绳量 |
Main Drum |
m |
45 |
80 |
80 |
80 |
100 |
|
Secondary Drum |
m |
45 |
100 |
100 |
110 |
130 |
|
|
电动机 |
Model |
/ |
YBK-132M-4 |
YBK-160L-4 |
YBK-180L-4 |
YBK-200L-4 |
YBK-250M-4 |
|
/ |
Y-132M-4 |
Y-160L-4 |
Y-180L-4 |
Y-200L-4 |
Y-250M-4 |
||
|
Power |
KW |
7.5 |
15 |
22 |
30 |
55 |
|
|
Rotating speed |
r/min |
1440 |
1460 |
1470 |
1470 |
1470 |
|
|
外形尺寸 |
L |
mm |
1210 |
1525 |
1600 |
1650 |
2070 |
|
W |
mm |
565 |
660 |
730 |
820 |
1010 |
|
|
H |
mm |
490 |
620 |
640 |
700 |
890 |
|
|
Total weight (excluding skips and pulleys) |
kg |
390 |
660 |
980 |
1155 |
2125 |
|
