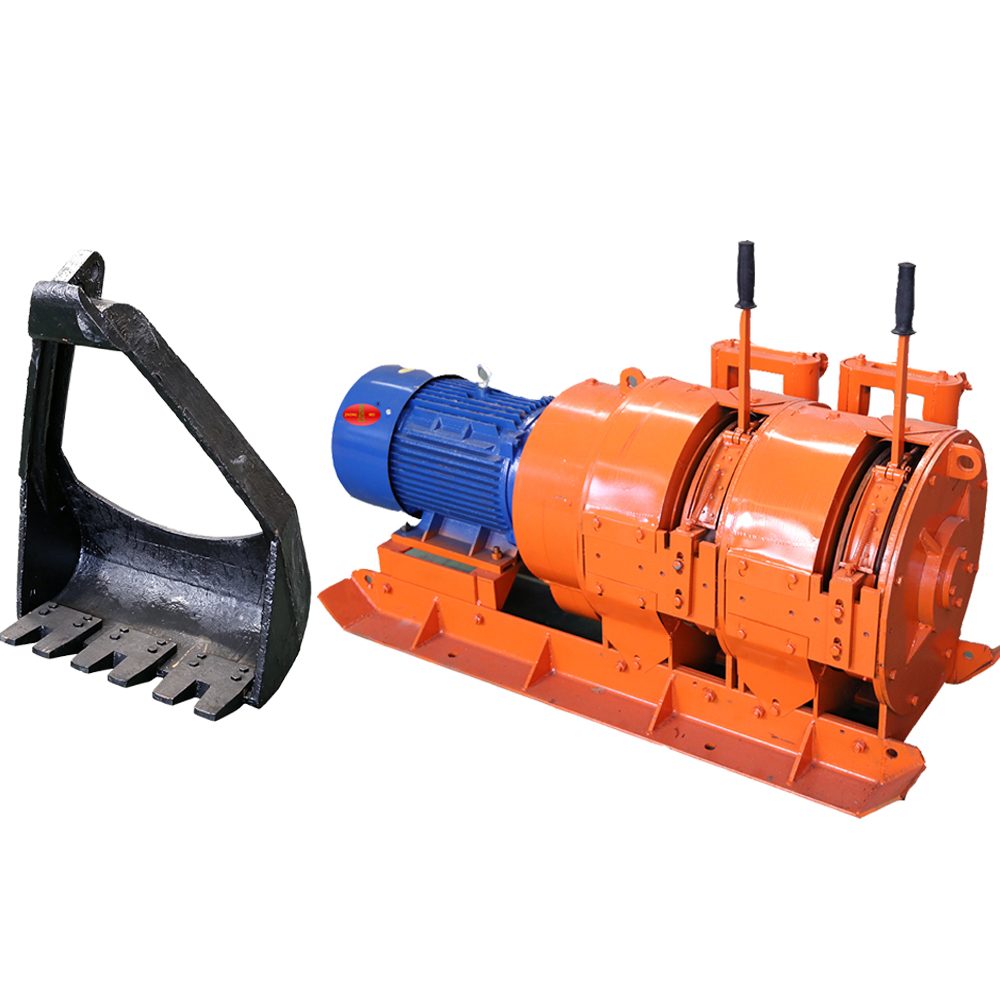

2JP(B)-15 Explosion-proof Scraper Winch

2JP(B)-15 Explosion-proof Scraper Winch

Date:2019-12-05     Label:

Scraper Winch

Winch

Explosion-proof Scraper Winch

2JP(B) Scraper Winch

2JP(B)-15 Explosion-proof Scraper Winch is mainly used to metal, chemical, contribution and the mine etc, and the underground working, such as the transportation etc.

Contact Us Product Center
Introduction of

2JP(B)-15 Explosion-proof Scraper Winch

2JP(B)-15 Explosion-proof Scraper Winch is mainly used to metal, chemical, contribution and the mine etc, and the underground working, such as the transportation etc.

Meanwhile, the scrape winch is just suitable to the parallel transportation on ground, or the slopes within 500, can not be used for hoisting machines.

Feature of 2JP(B)-15 Explosion-proof Scraper Winch

1.scraper winch

2.high quality and excellent performance

3.Widely used in mine

4.Standard packing and short delivery

Remark: The scraper winch can not be used as the lifting equipments. If you want to lifting things, please choose the lifting winch, such as JD winch, JH winch, etc.

By way of the hoist is around on the wire rope drum traction for a round-trip movement to rake the material.

MAIN PARAMETER OF

2JP(B)-15 Explosion-proof Scraper Winch

项目
Item

unit

Model

2JPB-7.5

2JPB-15

2JPB-22

2JPB-30

2JPB-55

2JP-7.5

2JP-15

2JP-22

2JP-30

2JP-55

主钢丝绳平均拉力不少于                Main wire rope Min. tension

N

8000

14000

20000

275000

44000

平均速度
Average speed

Main wire rope

±5%m/s

1.0

1.10

1.20

1.20

1.20

Secondary wire rope

1.0

1.50

1.50

1.60

1.80

钢丝绳直径
Wire rope diameter

Main wire rope

mm

9.3

12.5

14.0

15.5

18.5

Secondary wire rope

9.3

11.0

11.0

14.0

16.0

卷筒
Drum

Dia.

mm

205

225

280

280

350

Rim diameter

mm

350

435

510

510

625

Width

mm

80

125

160

160

180

容绳量
Wire Rope Size

Main Drum

m

45

80

80

80

100

Secondary Drum

m

45

100

100

110

130

电动机
Electric motor

Model

/

YBK-132M-4

YBK-160L-4

YBK-180L-4

YBK-200L-4

YBK-250M-4

/

Y-132M-4

Y-160L-4

Y-180L-4

Y-200L-4

Y-250M-4

Power

KW

7.5

15

22

30

55

Rotating speed

r/min

1440

1460

1470

1470

1470

外形尺寸
Dimensions

L

mm

1210

1525

1600

1650

2070

W

mm

565

660

730

820

1010

H

mm

490

620

640

700

890

Total weight (excluding skips and pulleys)

kg

390

660

980

1155

2125

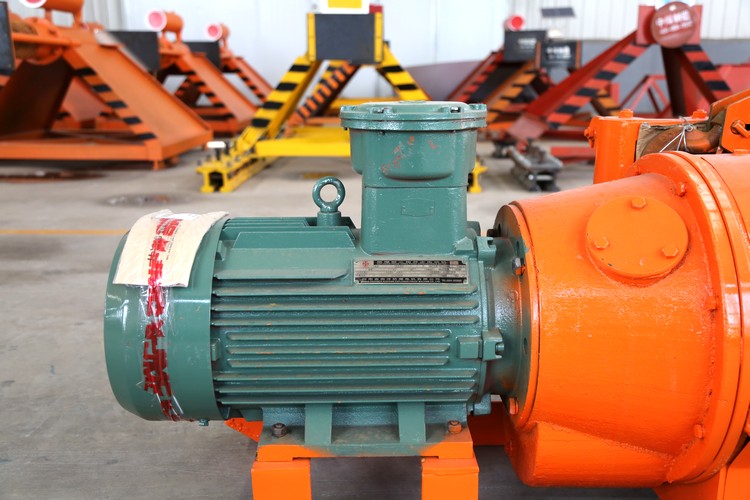

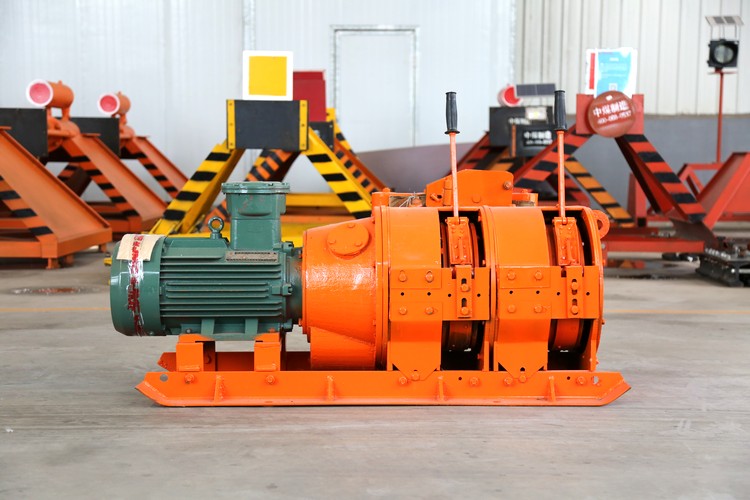

PHOTOS OF

2JP(B)-15 Explosion-proof Scraper Winch

2JP(B)-15 Explosion-proof Scraper Winch
2JP(B)-15 Explosion-proof Scraper Winch
PHOTOS OF

2JP(B)-15 Explosion-proof Scraper Winch
