Double Drum Hoist Winch/Double Speed Electric Winch

Double Drum Hoist Winch/Double Speed Electric Winch

Date:2019-03-07     Label:

Double Drum Hoist Winch

Hoist Winch

Winch

Double Drum Hoist Winch/Double Speed Electric Winch with fast and slow and two multi-purpose winh

Contact Us Product Center
Introduction of

Double Drum Hoist Winch/Double Speed Electric Winch

Double Drum Hoist Winch/Double Speed Electric Winch with fast and slow and two multi-purpose winh, mainly for underground coal mining face, mechanized mining equipment and various types of mechanical and electrical equipment relocation and other auxiliary transport work, as well as underground mining face, shaft bottom, down the mountainmine surface, etc. the tramcar scheduling, material transport can also be used for the back of the stop pillar caving.

This series winch bevel gear drive form, the structure is simple, safe, reliable, and easy maintenance. Winch height and width dimensions suitable for smaller narrow underground space, winch operation is simple, with the throttle grip the hoist control button switch can be convenient to use.

MAIN PARAMETER OF

Double Drum Hoist Winch/Double Speed Electric Winch

Reference number/type

JSDB-10

JSDB-13

JSDB-19

traction KN

low speed

outer

100

130

190


average


120

165

250

internal

140

200

320

Fast

≥12

≥15

≥25


rope speed

m/s

Slow

0.115-0.157

0.103-0.152

0.118-0.204


Fast

0.756-1.03

0.833-1.23

0.86-1.5

reduction ratio


Slow


175.62

209.66

247.44


Fast

26.89

25.82

34.13

Wire rope

diameter mm

20

24

30


rope capacity

m

120

180

400

motor

type

YBK2-200L1-6

YBK2-200L2-6

YBK2-280S-6

power KW

18.5

22

45

speed r.pm

970

970

980

Drum size

mm

diameter

380

400

540

width

408

531

560


overall dimension

mm

length

2630

3158

3845

width

770

1215(970)

1315

high

855

1030

1255

Total Weight kg

2000

2960

6500

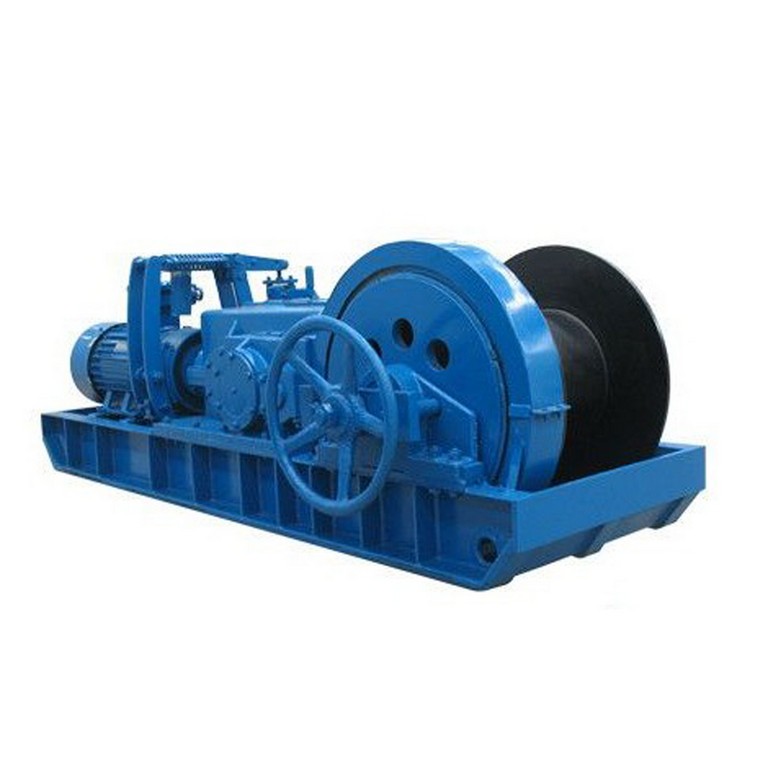

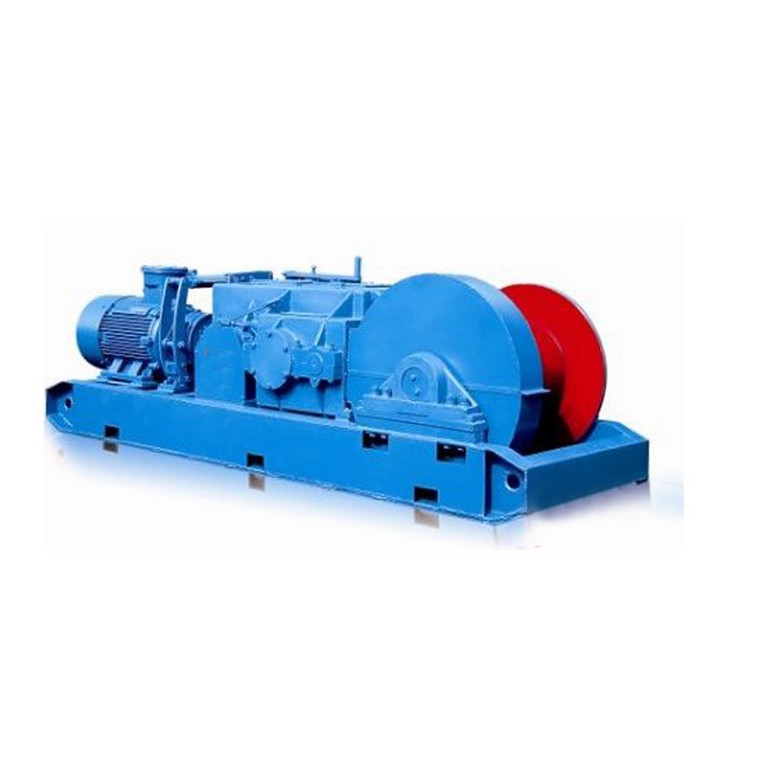

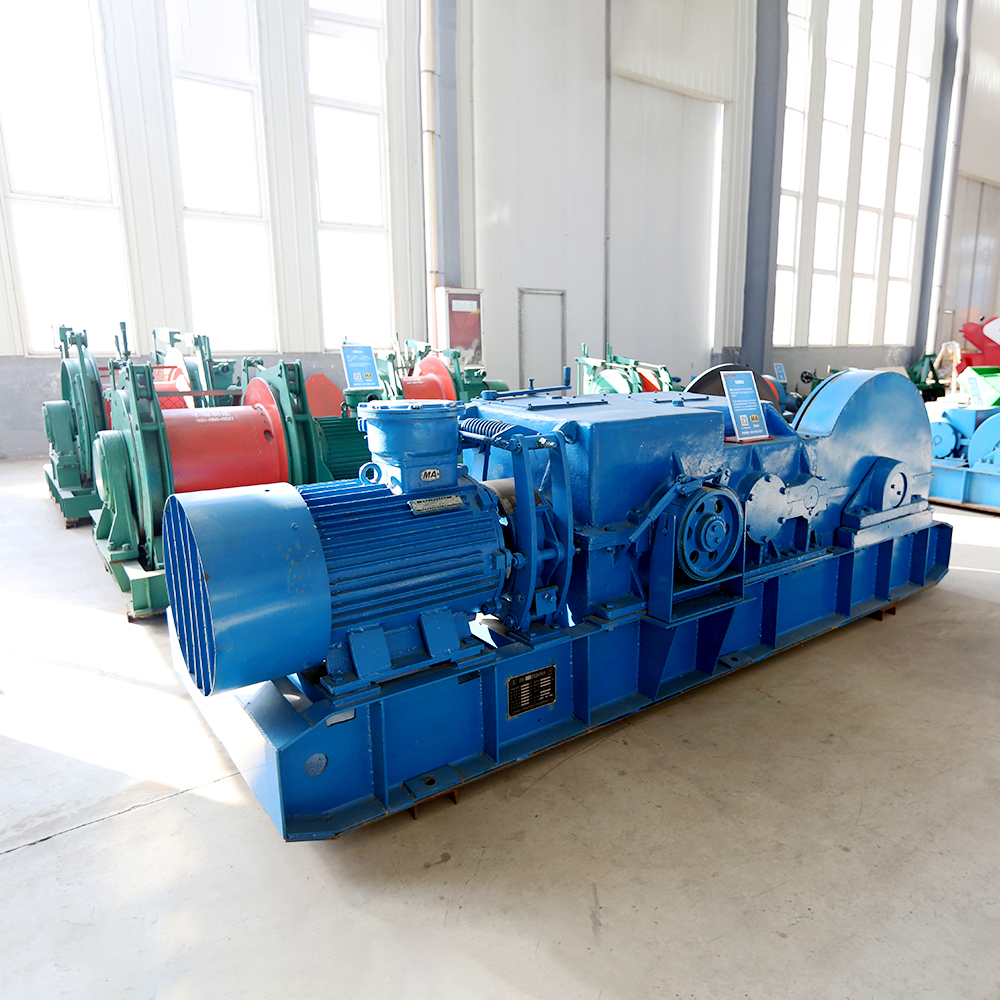

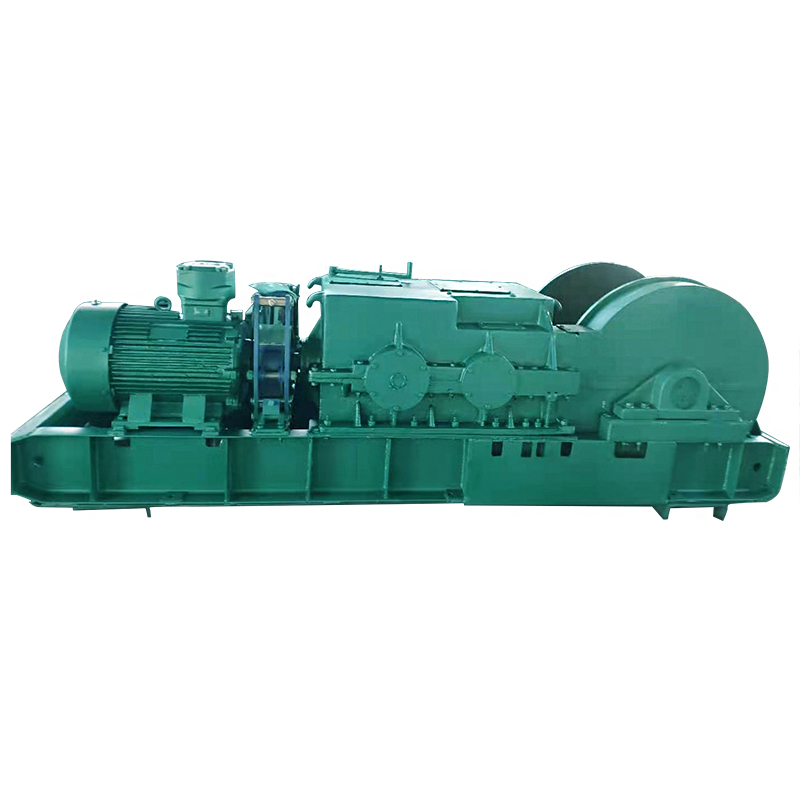

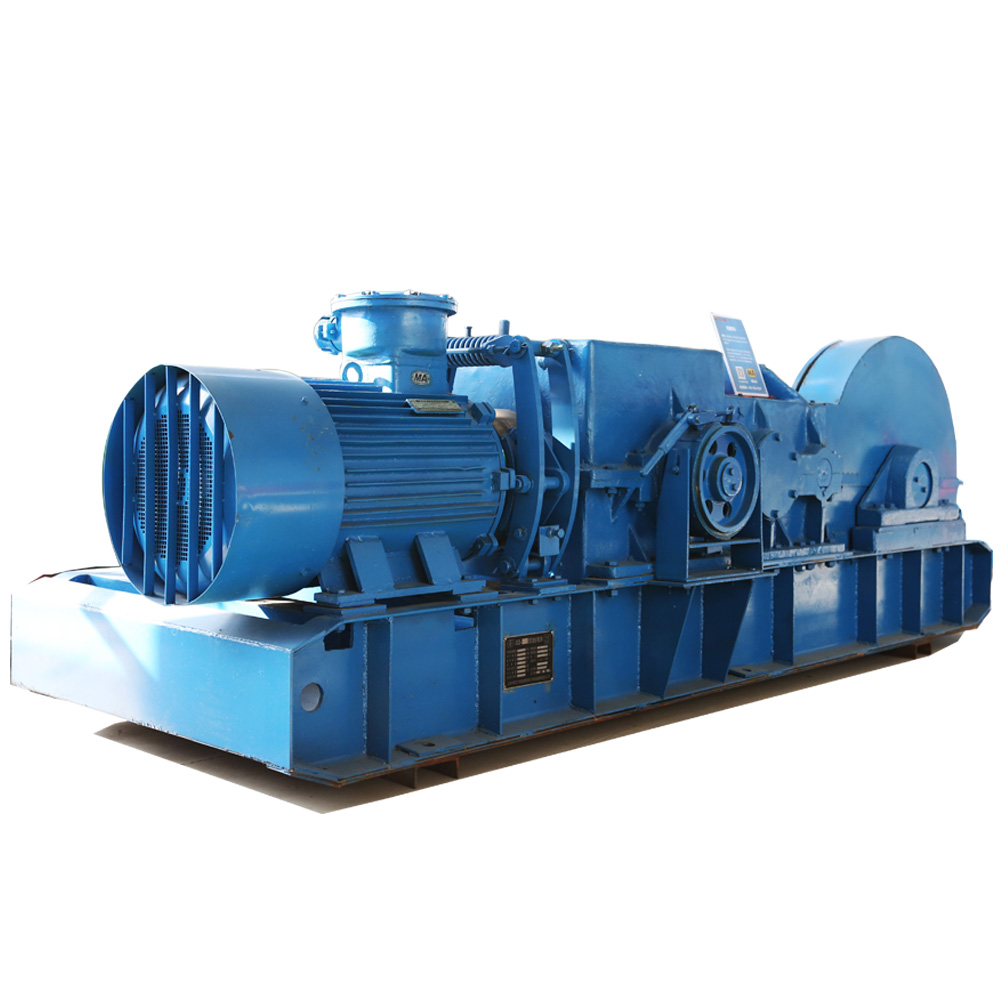

PHOTOS OF

Double Drum Hoist Winch/Double Speed Electric Winch

Double Drum Hoist Winch/Double Speed Electric Winch
Double Drum Hoist Winch/Double Speed Electric Winch
PHOTOS OF

Double Drum Hoist Winch/Double Speed Electric Winch
