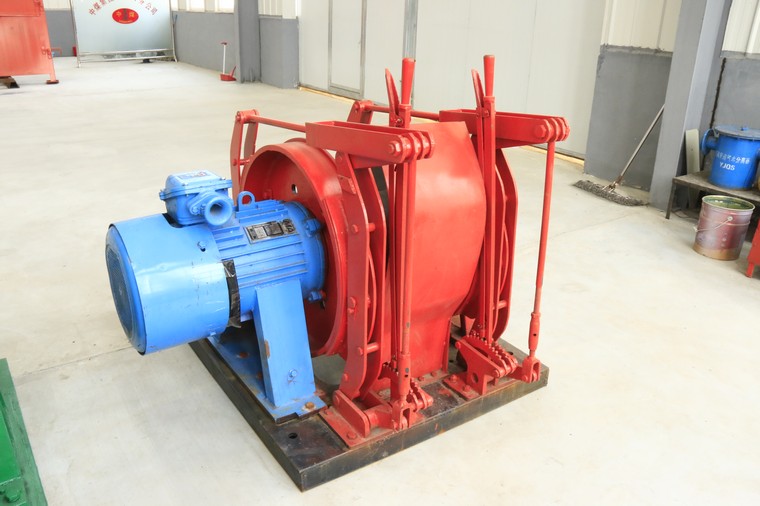

JD-2.5 dispatch winch is composed of electric motor, reel device, brake device, depth indicator, base, shield and other parts. It is used in underground mine yards, intermediate roadways, and empty and heavy vehicles in the transportation lanes of mining areas. It can also be used for up and down the mountain, and the heads are dispatched to dispatch individual mine cars.
Model
JD-2.5
Traction Force
25 KN
Outer wire rope speed
1.16-1.46m/s
Capacity
400-650 m
Wire rope diameter
20 mm
Roll diameter
620 mm
Roll width
580 mm
Motor model
YBJ40-4
Motor Power
40 kw
Motor speed
1480 r/min
Total speed ratio
42.24
Dimension
1900*2350*1370 mm
Supporting motor equipment
QBZ-120N
Mine explosion-proof (vacuum) magnetic starter
