Introduction And Use Of The Mining Scraper Winch
Date:2022-05-12 Label：
Scraper Winch
Scraper Winchs
Winch
Introduction of Scraper Winch:
Mine Scraper Winch, also known as electric rake - electric rake is mainly used for underground or open pit ore handling and filling operations in metal mines, coal mines and other mines. It is mainly used for raking on the horizontal plane, and can also be used for raking on slopes with a small inclination, but it cannot be used as a lifting device. The electric rakes arranged in parallel are common to the mainframe of the PB series raking bucket rock loader.
Use of
Scraper Winchs:

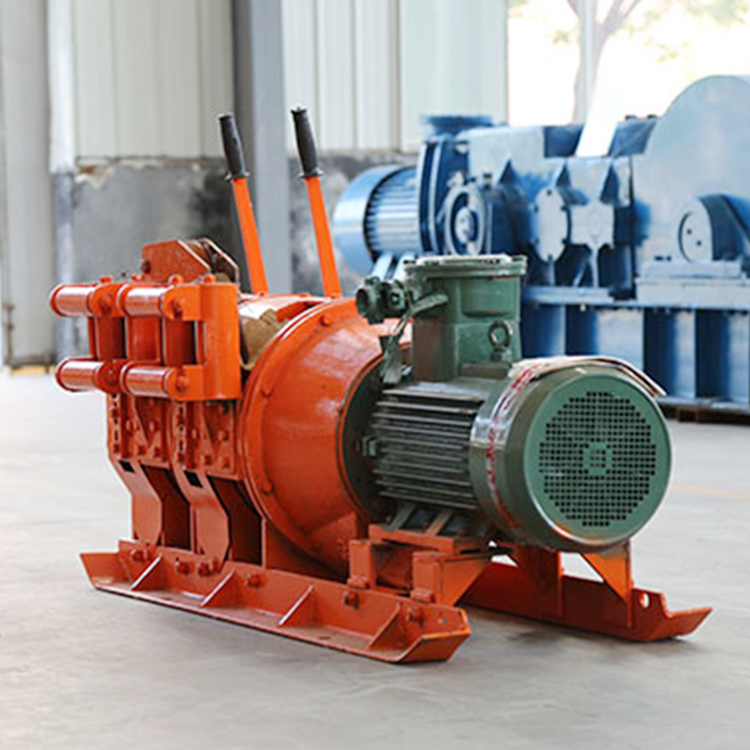

The main components of the rake ore
winch are the reduction device, the main drum, the auxiliary drum, the control device, the wire rope guide device and the electric motor. These parts are installed inside and outside the shell, Scraper Winchs are component with good rigidity, which not only protects, supports, but also bears all loads. It is bolted to the two slides connected to the foundation. Generally, the driver can operate by hand beside the winch, or use the button to perform distance control several meters or even tens of meters away from the
winch.
Common models and model markings of
winches:
Common electric rake models are 2JPB-7.5, 2JPB-15, 2JPB-22 and 2JPB-30.
The meaning of the mark, example 2JPB-7.5
2----Number of wire rope drums
J-----Winches
P---- raking winch
B----Explosion-proof
7.5---Power of motor
