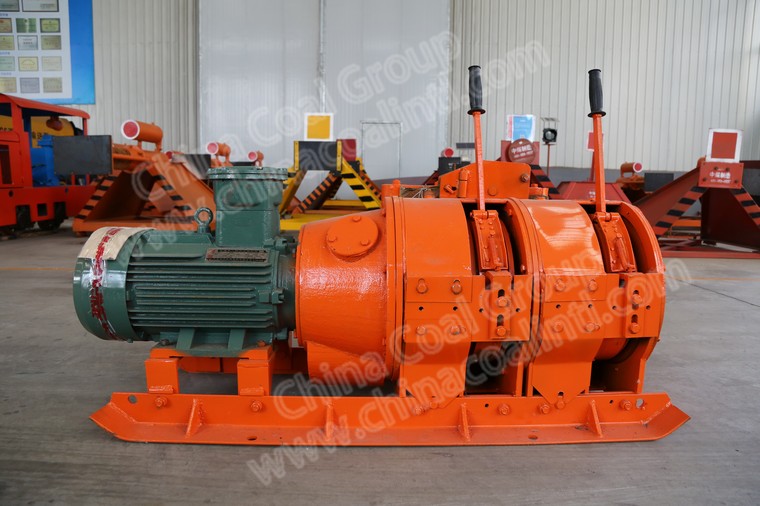

The structural principle of a scraper winch, especially in the context of mining applications, involves a combination of mechanical and design elements that ensure its functionality and durability. Here's an overview of its structural principle:
Basic Structure
1.Motor and Power Transmission:
The Mine Winch is typically powered by an electric motor.
The power is transmitted through gears, shafts, or belts to the drum or winching mechanism.
2.Drum or Winching Mechanism:
The drum is the central component around which the wire rope or chain is wound.
It is designed to withstand the tensile forces applied during winching operations.
3.Brake System:
A reliable brake system is essential to prevent unexpected movement of the load.
It may include mechanical, hydraulic, or electromagnetic brakes.
4.Frame and Support Structure:
The frame provides structural support for all the components.
It is usually made of heavy-duty materials to withstand the stresses and loads involved in mining operations.
In conclusion, the structural principle of a scraper winch involves a combination of mechanical and design elements that ensure its functionality, durability, and safety in mining applications. The basic structure includes a motor, power transmission, drum, brake system, and frame. Operational principles involve winching action, braking, and control mechanisms. Special features, such as explosion-proof design, durability, and multi-speed capabilities, make scraper winches suitable for harsh mining environments.
