JK Mining Electric High Speed Winch

JK Mining Electric High Speed Winch

JK Mining Electric High Speed Winch use for crane and installation industry. 1.Final Drives gears are made with heat-treated carbon steel offering greater strength.

Introduction of

JK Mining Electric High Speed Winch

Introduction of JK Mining Electric High Speed Winch

JK Mining Electric High Speed Winch use for crane and installation industry. JK Mining Electric High Speed Winch has the following features:

1.Final Drives gears are made with heat-treated carbon steel offering greater strength.

2.Precision needle bearing used in high-load areas offering lower friction level and longer life.

3.High impact case providing weather resistance and protection for internal components.

4.Durable hook safety snap keeping the loads attached.

Main Parameter of

JK Mining Electric High Speed Winch

Model

JK1

JK3

JK5

JK8

JK10

Line pull capacity (kg)

1000

3000

5000

8000

10000

Wire rope average speed (m/min)

30

30

28

20

19

Wire rope Dia.( mm):

9.3

15.5

21.5

26

30

Reduction box

Type

JZQ350

JZQ500

JZQ650

JZQ650

JZQ750

Transmission ratio

31.5

23.34

40.17

23.34

23.34

Drum (mm)

Diameter()

190

325

406

500

550

Length

360

520

840

900

1000

Capacity(m)

110

200

300

300

450

motor

Type

Y132M-4

YZR225M-8

YZR250M1-8

YZR250M1-6

YZR250M2-6

Power(kW)

7.5

22

30

37

45

Rotating speed(r/min)

1440

715

864

960

960

Hydraulic Brake

YWZ-200/25

YWZ-200/25

YWZ-300/45

YWZ-300/45

YWZ-400

Dimension (cm)

945x97x60

147x140x95

186x166x95

240x180x110

250x190x120

Weight(kg)

460

1200

2700

4000

5000

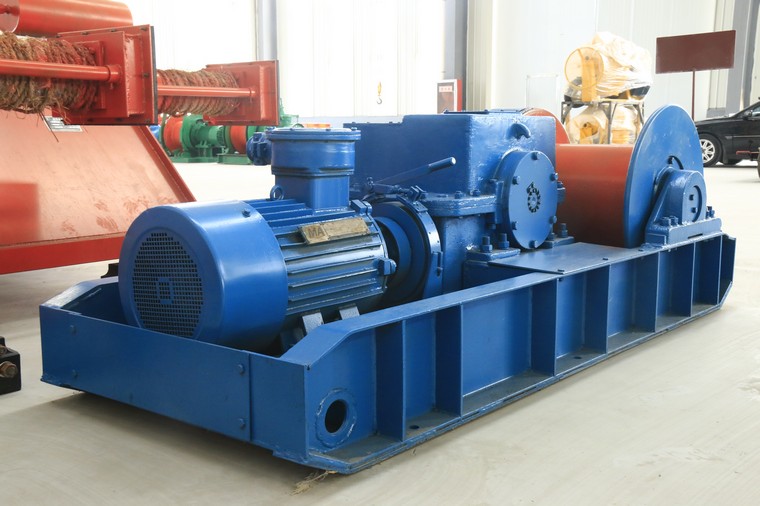

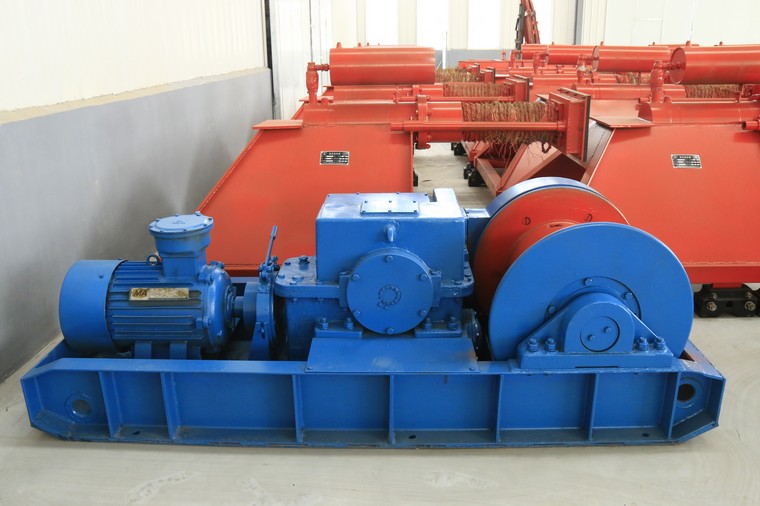

Photos Of

JK Mining Electric High Speed Winch

  • JK Mining Electric High Speed Winch
  • JK Mining Electric High Speed Winch
