JD-1.6 Type Dispatching Winch

JD-1.6 Type Dispatching Winch

Date:2018-11-28     Label:

Dispatching Winch

Mining Dispatching Winch

Mining Winch

​JD-1.6 type dispatching winch is used to dispatch marshalling trucks in underground or at ground loading stations and in intermediate lanes and other auxiliary handling operations. The winch uses exp

Contact Us Product Center
Introduction of

JD-1.6 Type Dispatching Winch

JD-1.6 type dispatching winch is used to dispatch marshalling trucks in underground or at ground loading stations and in intermediate lanes and other auxiliary handling operations. The winch uses explosion-proof electrical equipment and can be used in coal dust and gas mines. It adopts the form of planetary gear transmission, which has the characteristics of compact structure and small volume, and is easy to operate.

MAIN PARAMETER OF

JD-1.6 Type Dispatching Winch

Model

JD-1.6

Traction Force

16 KN

Outer wire rope speed

1.399 m/s

Capacity

400 m

Wire rope diameter

16 mm

Roll size (diameter x width)

φ310×400 mm

Motor model

YBJ25-4

Motor Power

25 kw

Motor speed

1460 r/min

Voltage

380/660 V

Total speed ratio

32.5

Dimension

1435*1217*1242 mm

Weight

1187 kg (excluding motor)

1370 kg (including motor)

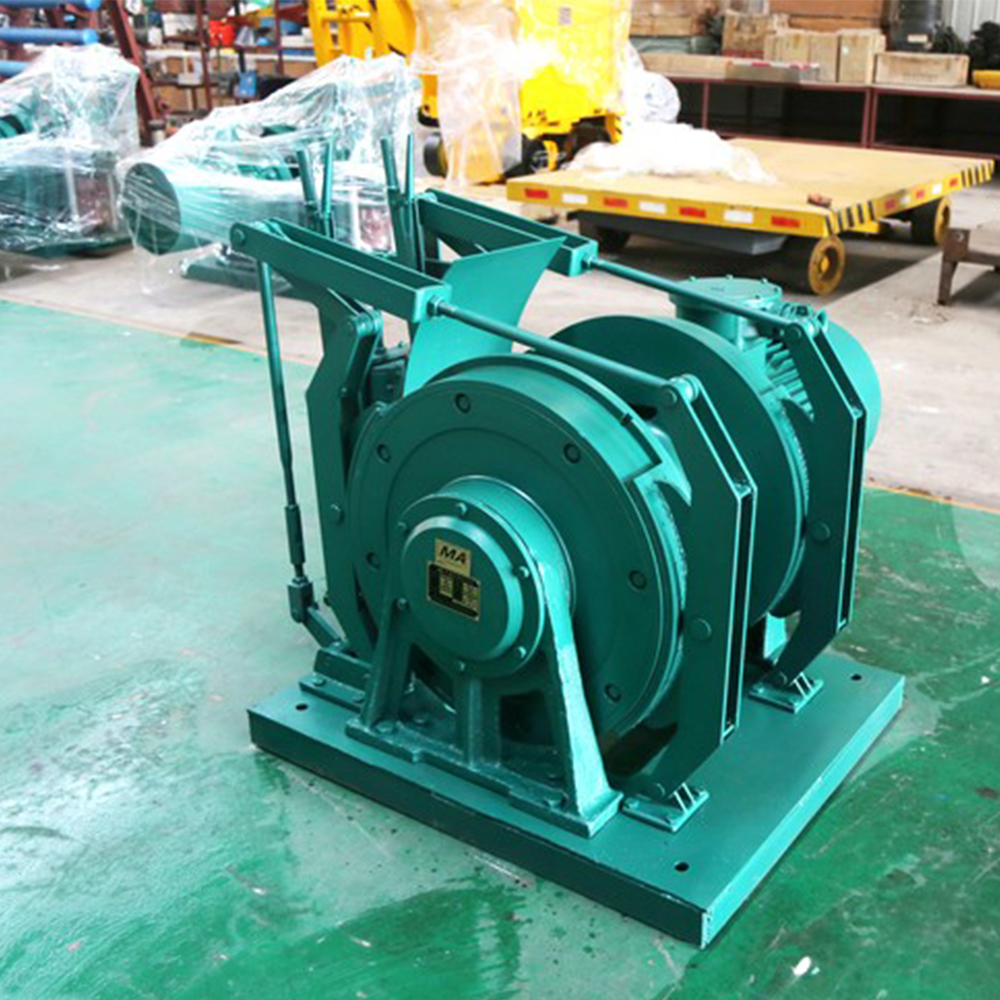

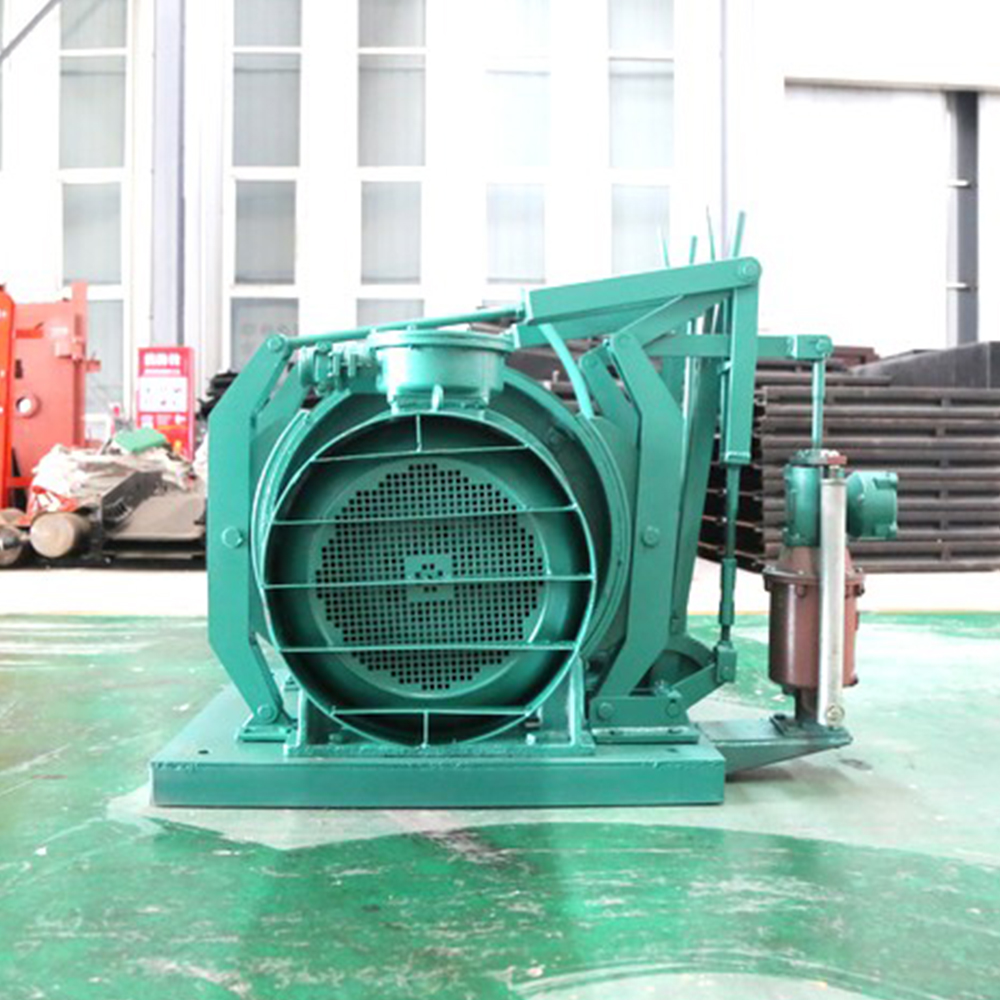

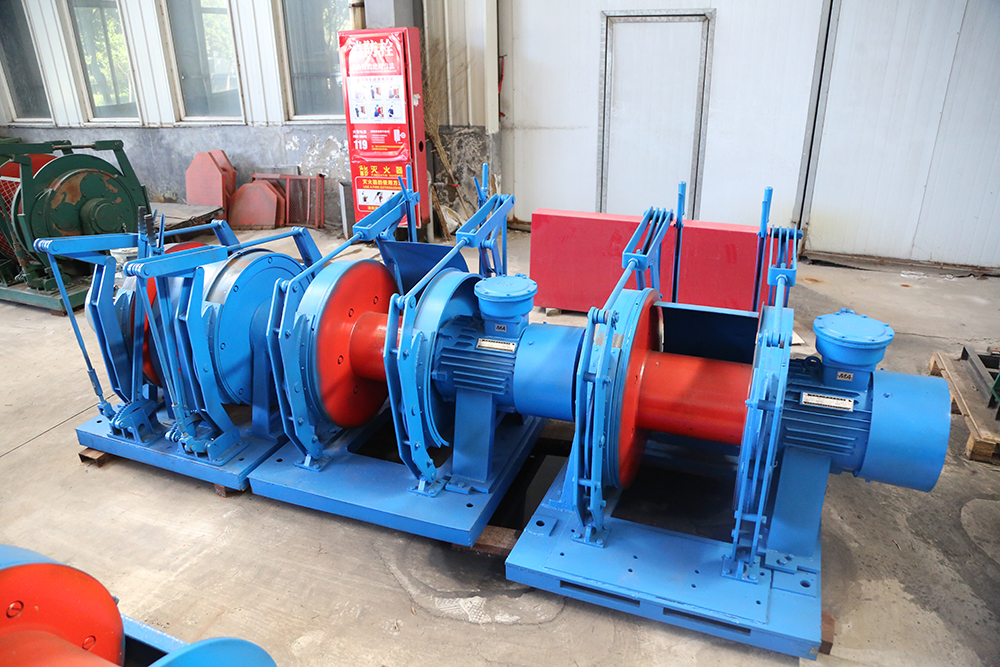

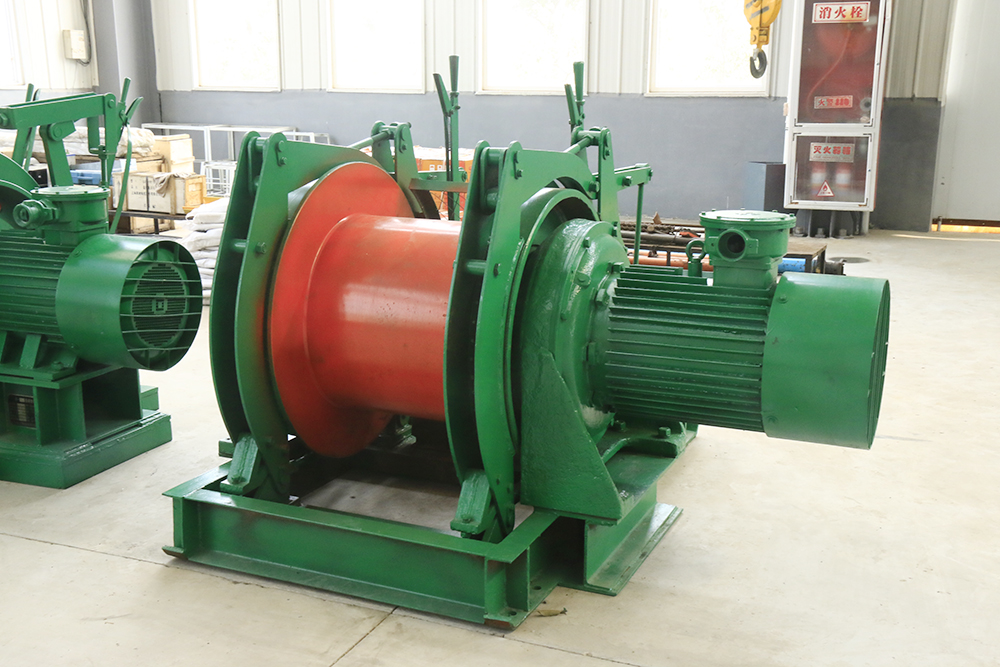

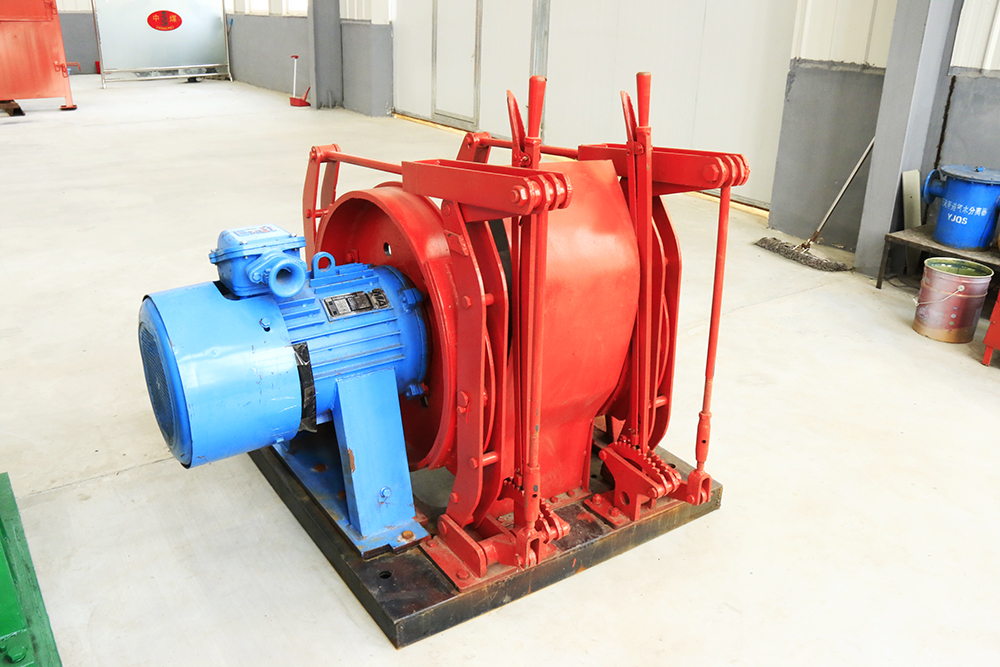

PHOTOS OF

JD-1.6 Type Dispatching Winch

JD-1.6 Type Dispatching Winch
JD-1.6 Type Dispatching Winch
PHOTOS OF

JD-1.6 Type Dispatching Winch
