JD-2.5 Type Mining Dispatch Winch

JD-2.5 Type Mining Dispatch Winch

JD-2.5 dispatch winch is composed of electric motor, reel device, brake device, depth indicator, base, shield and other parts. It is used in underground mine yards, intermediate roadways, and empty an

Introduction of

JD-2.5 Type Mining Dispatch Winch

JD-2.5 dispatch winch is composed of electric motor, reel device, brake device, depth indicator, base, shield and other parts. It is used in underground mine yards, intermediate roadways, and empty and heavy vehicles in the transportation lanes of mining areas. It can also be used for up and down the mountain, and the heads are dispatched to dispatch individual mine cars.

Main Parameter of

JD-2.5 Type Mining Dispatch Winch

Model

JD-2.5

Traction Force

25 KN

Outer wire rope speed

1.16-1.46m/s

Capacity

400-650 m

Wire rope diameter

20 mm

Roll diameter

620 mm

Roll width

580 mm

Motor model

YBJ40-4

Motor Power

40 kw

Motor speed

1480 r/min

Total speed ratio

42.24

Dimension

1900*2350*1370 mm

Supporting motor equipment

QBZ-120N

Mine explosion-proof (vacuum) magnetic starter

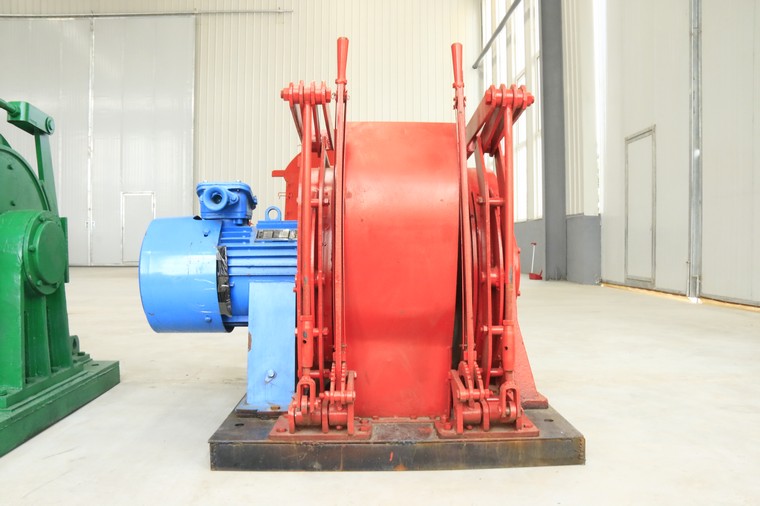

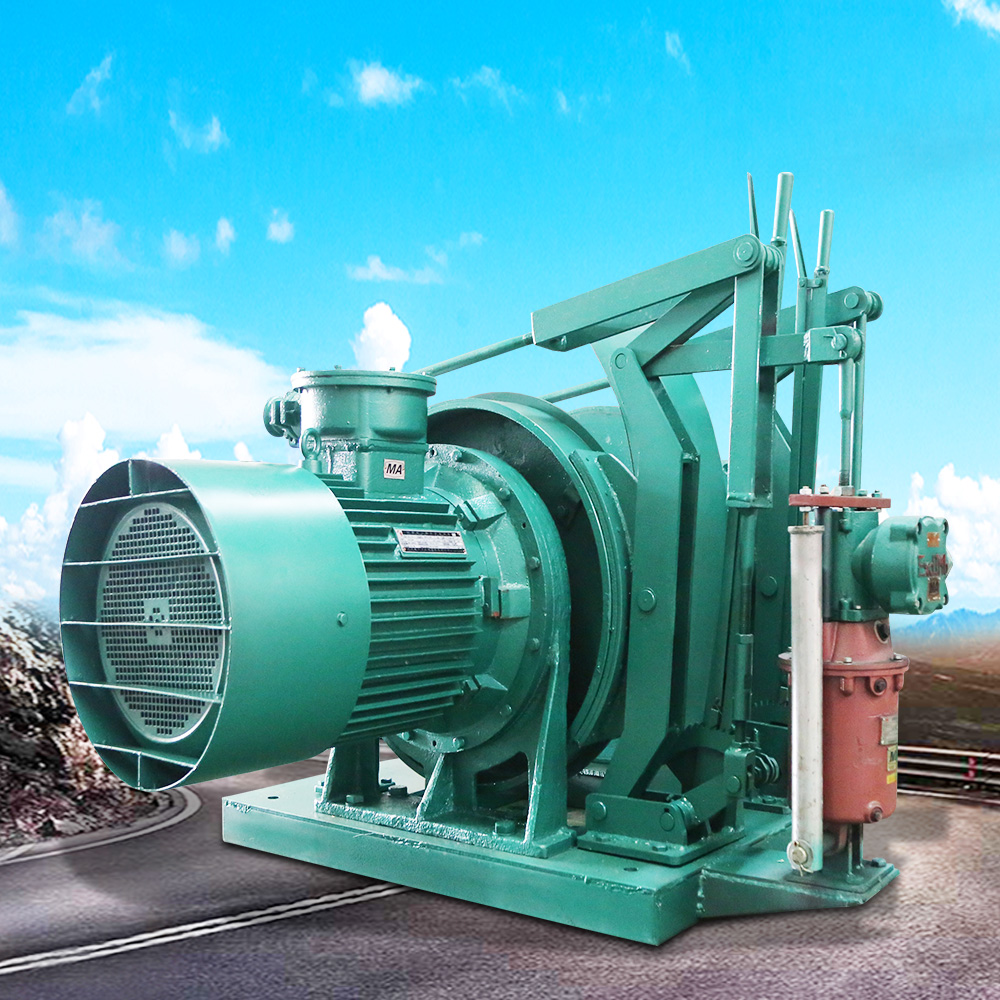

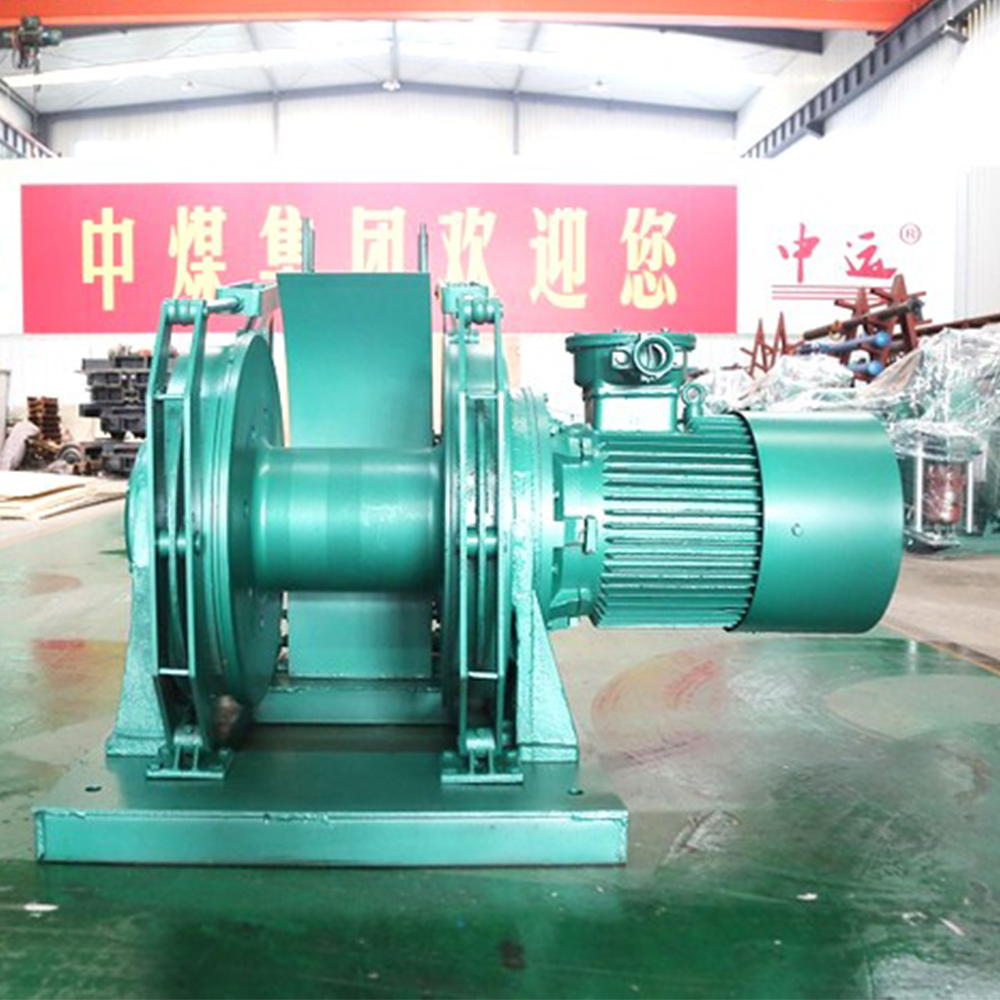

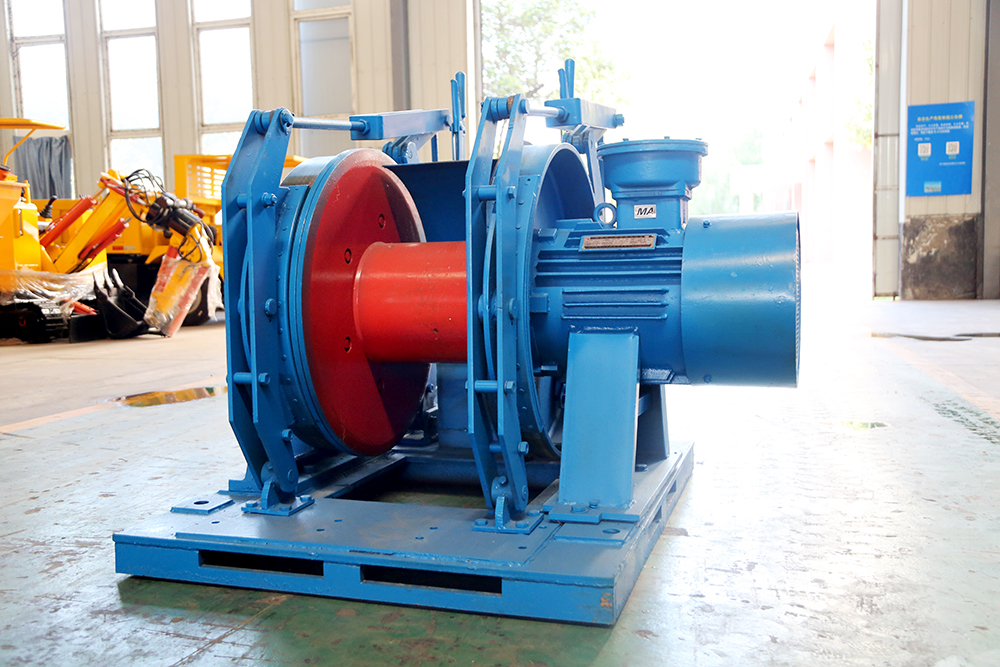

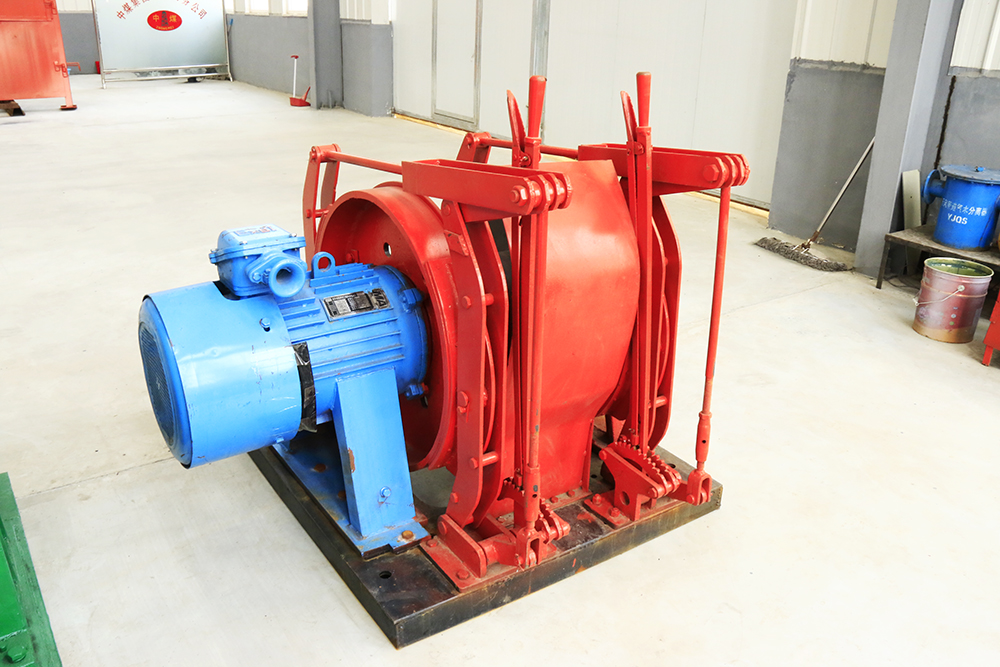

Photos Of

JD-2.5 Type Mining Dispatch Winch

  • JD-2.5 Type Mining Dispatch Winch
  • JD-2.5 Type Mining Dispatch Winch
