JD-4.0 Coal Mine Explosion-Proof Dispatching Winch

JD-4.0 Coal Mine Explosion-Proof Dispatching Winch

Date:2018-11-28     Label:

Dispatching Winch

Explosion-Proof Dispatching Winch

JD winch

The winch is mainly composed of the following parts: electric motor, reel device, left and right brackets, brakes and machine base.

Contact Us Product Center
Introduction of

JD-4.0 Coal Mine Explosion-Proof Dispatching Winch

The winch is mainly composed of the following parts: electric motor, reel device, left and right brackets, brakes and machine base.

1. Roll device

There are three main functions of the reel device: one is to wind the wire rope to pull and lower the heavy object. Second, the planetary gear reduction mechanism through the inner cavity of the drum acts as a deceleration. The third is to control the rotation or stop of the reel by the brakes installed on the reel brake disc.

2. Base: For the welded structure, the base of the winch is welded by steel.

3. Brake device

There are two identical brakes on the winch that are attached to the base by brackets. The left brake mounted on the reel on one side of the motor, controls the rotation and stop of the reel. The right brake mounted on the other side of the brake wheel acts as a clutch. It should be noted that in the working state, it is strictly forbidden to brake the left and right brakes at the same time.

MAIN PARAMETER OF

JD-4.0 Coal Mine Explosion-Proof Dispatching Winch

Model

JD-4.0

Traction Force

40 KN

Outer wire rope speed

≥25m/s

Capacity

≥650 m

Wire rope diameter

22 mm

Motor model

YBK2-280M-6

Motor Power

55 kw

Voltage

380/360 V

Dimension

2500*1965*1425 mm

Weight

3650 kg (including motor)

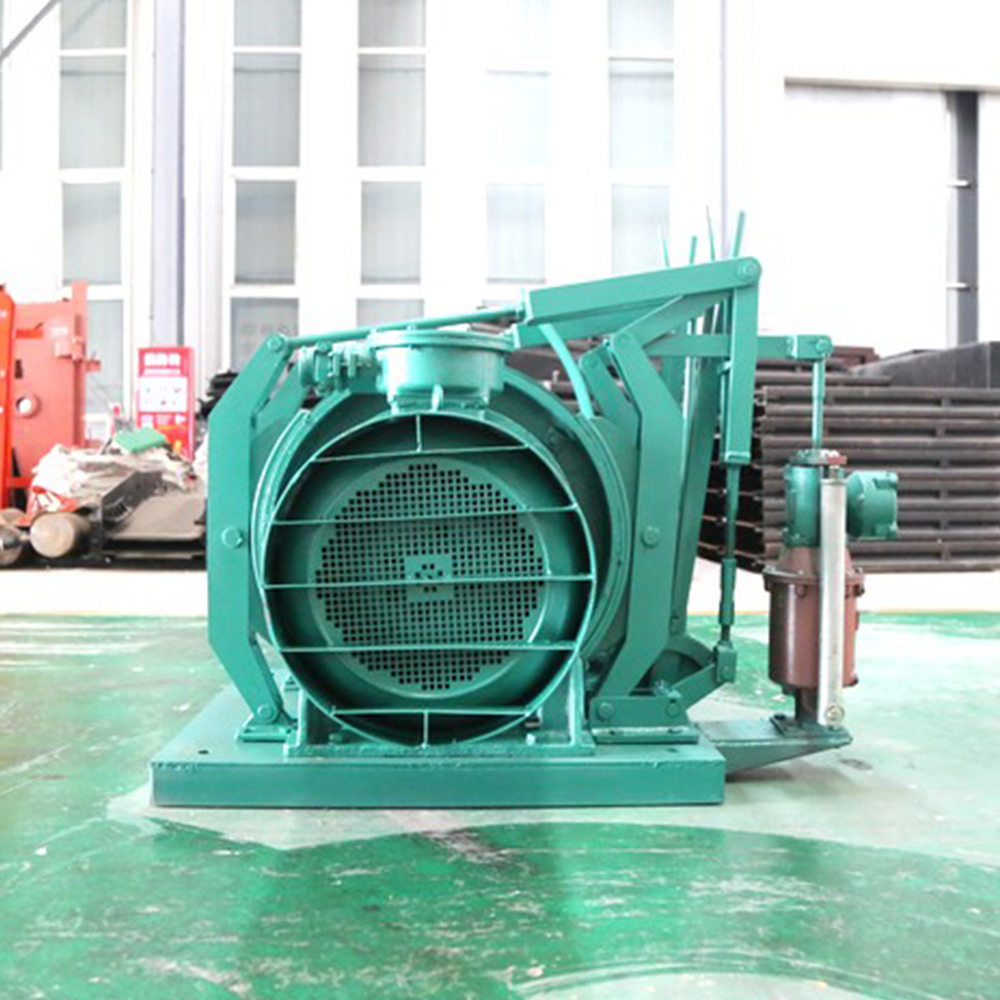

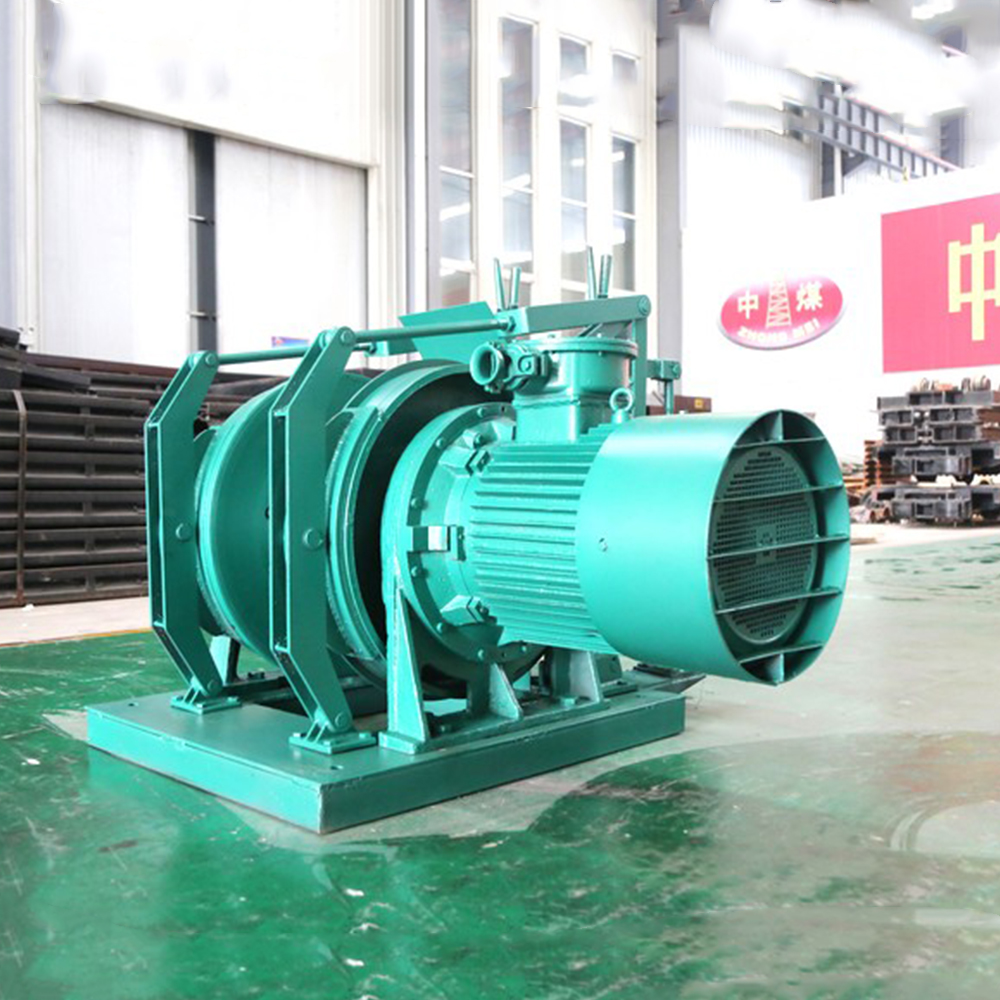

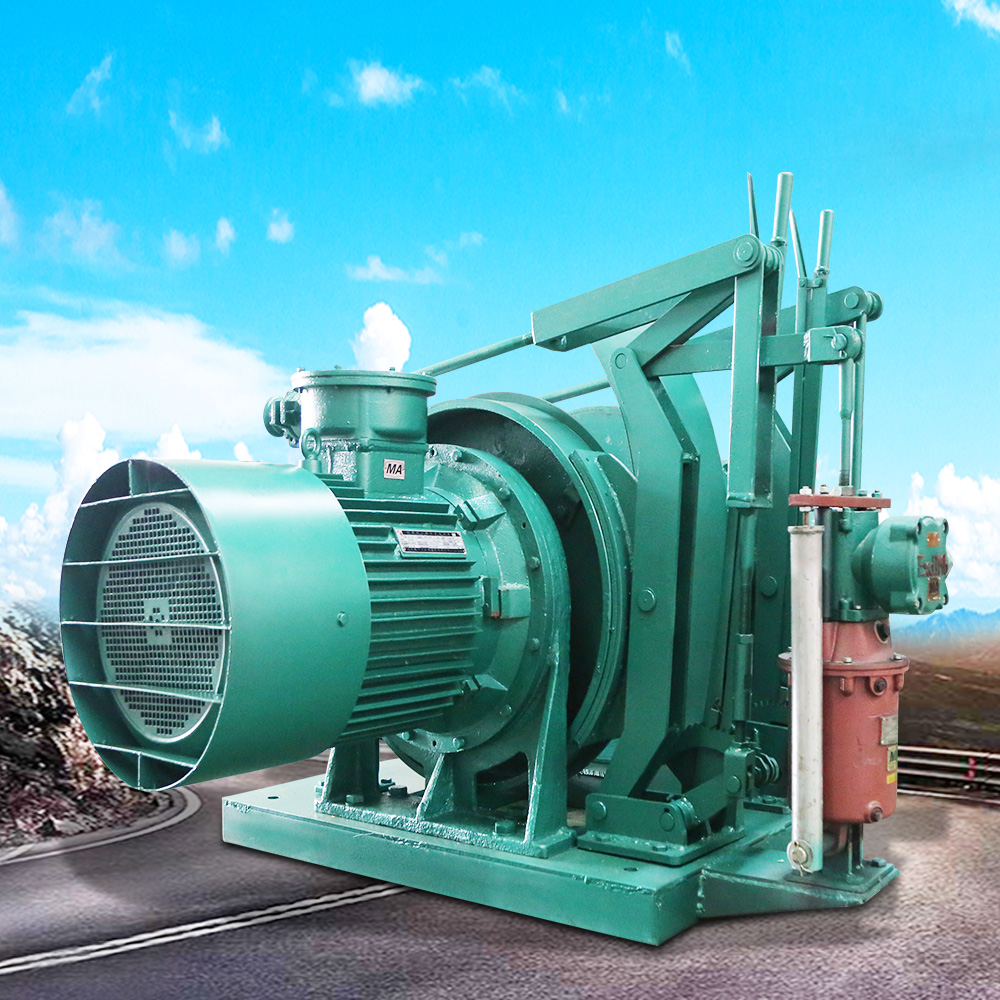

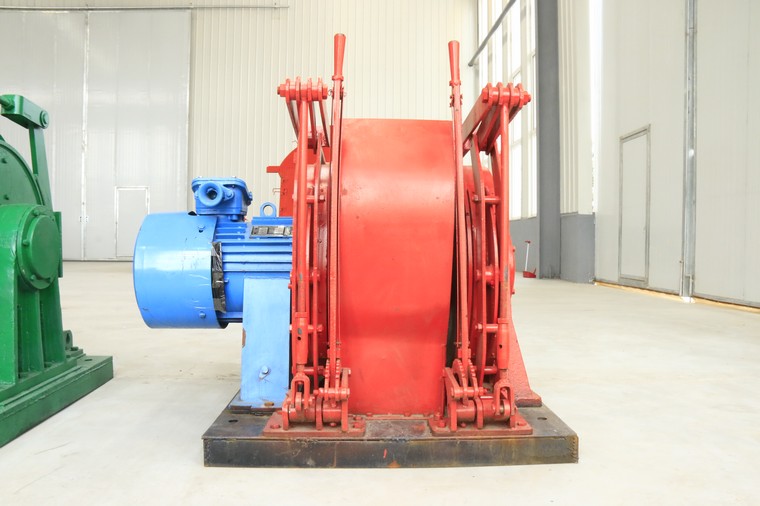

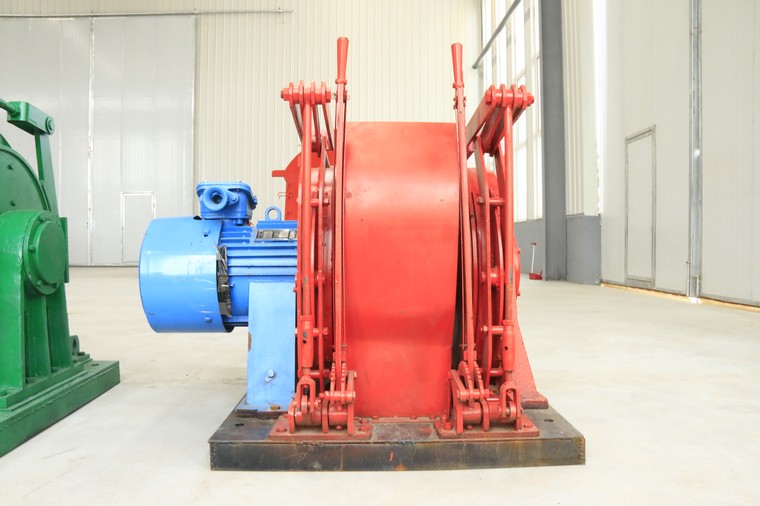

PHOTOS OF

JD-4.0 Coal Mine Explosion-Proof Dispatching Winch

JD-4.0 Coal Mine Explosion-Proof Dispatching Winch
JD-4.0 Coal Mine Explosion-Proof Dispatching Winch

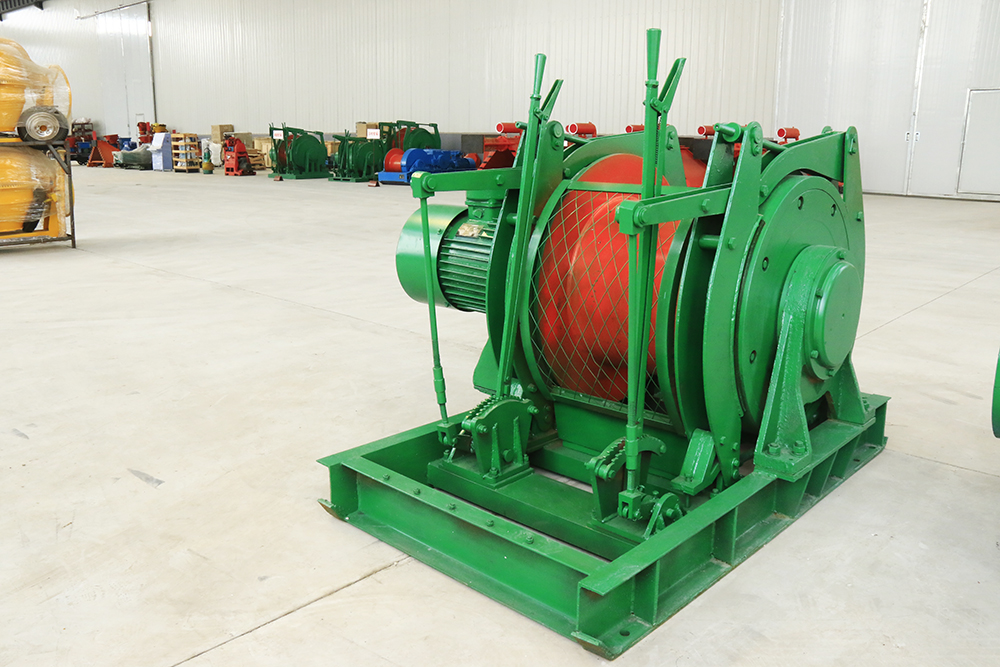

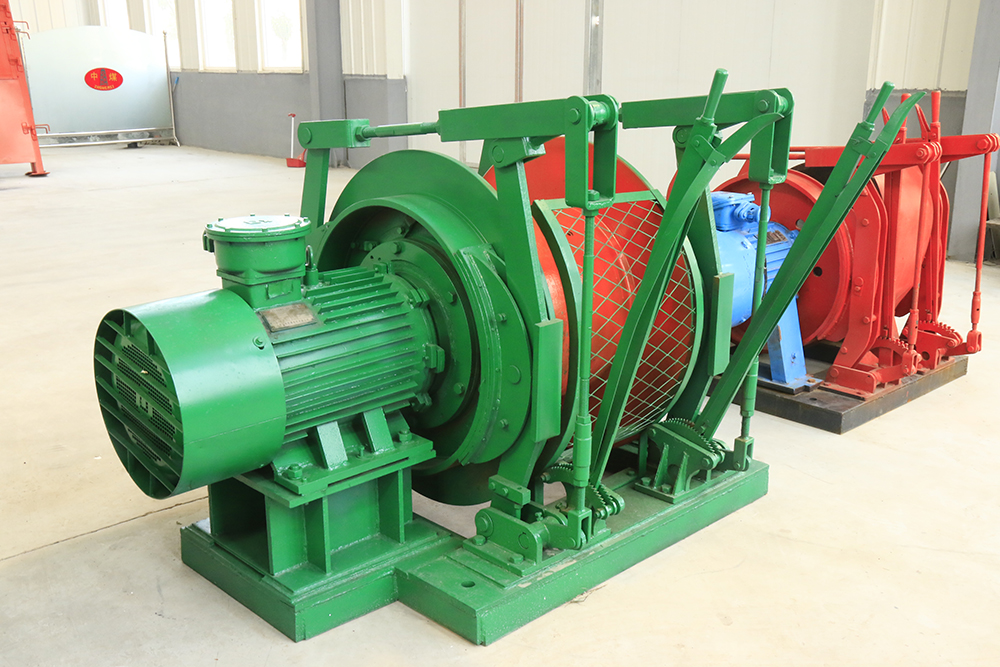

PHOTOS OF

JD-4.0 Coal Mine Explosion-Proof Dispatching Winch
