JH-8 Mining Prop Pulling Winch

JH-8 Mining Prop Pulling Winch

JH-8 prop pulling winch adopts spherical worm gear transmission, compact structure and small size. It can be used to go down the well. The structure is symmetrical, and it has a long strip shape. The

Introduction of

JH-8 Mining Prop Pulling Winch

JH-8 prop pulling winch adopts spherical worm gear transmission, compact structure and small size. It can be used to go down the well. The structure is symmetrical, and it has a long strip shape. The base is snowy and self-moving and smooth in the well. The winch has a low center of gravity and a good rigidity. It can be used as a top column and can be anchored. It is easy to install, stable, safe and reliable.

JH-8 prop pulling winch has anti-explosion performance, which is mainly used for topping the lower column of mine, and can also be used for auxiliary traction such as conveying and moving chute.

Main Parameter of

JH-8 Mining Prop Pulling Winch

Model

JH-8

Steel wire rope average static tension (KN)

580

Capacity (m)

80

Drum diameter* width (mm)

280x230

Steel wire rope diameter (mm)

15.5

Motor Power (KW)

7.5

Overall dimension (length* width* height) mm

1593*530*670

Winch weight (kg)

600

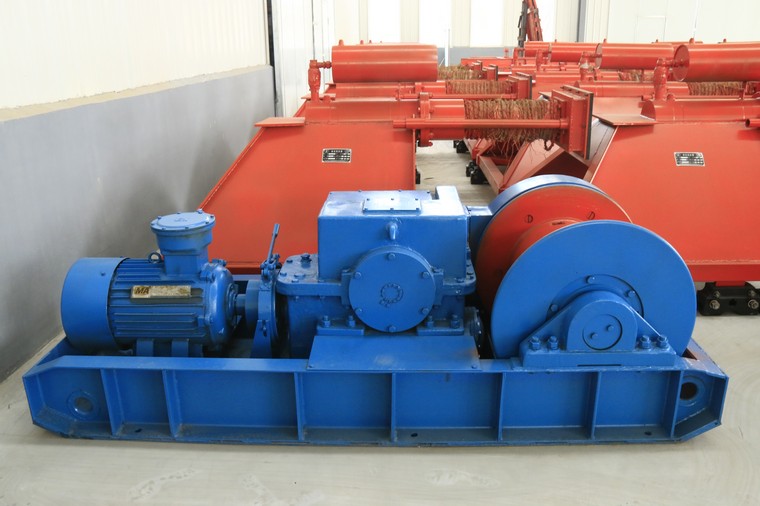

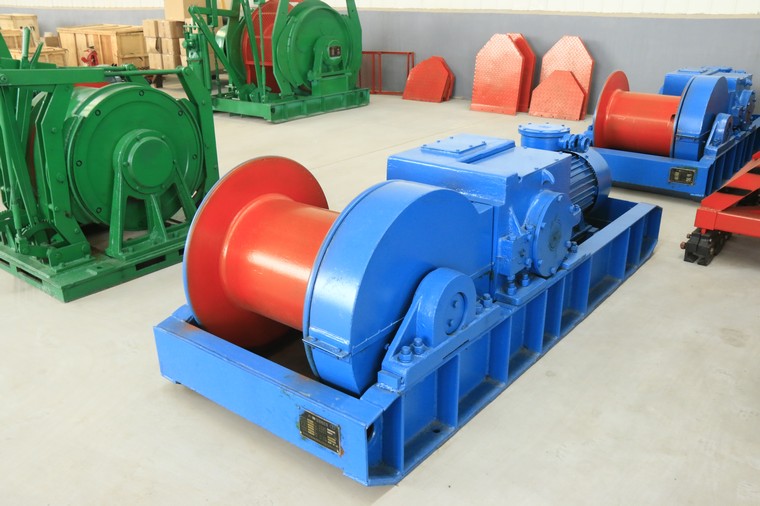

Photos Of

JH-8 Mining Prop Pulling Winch

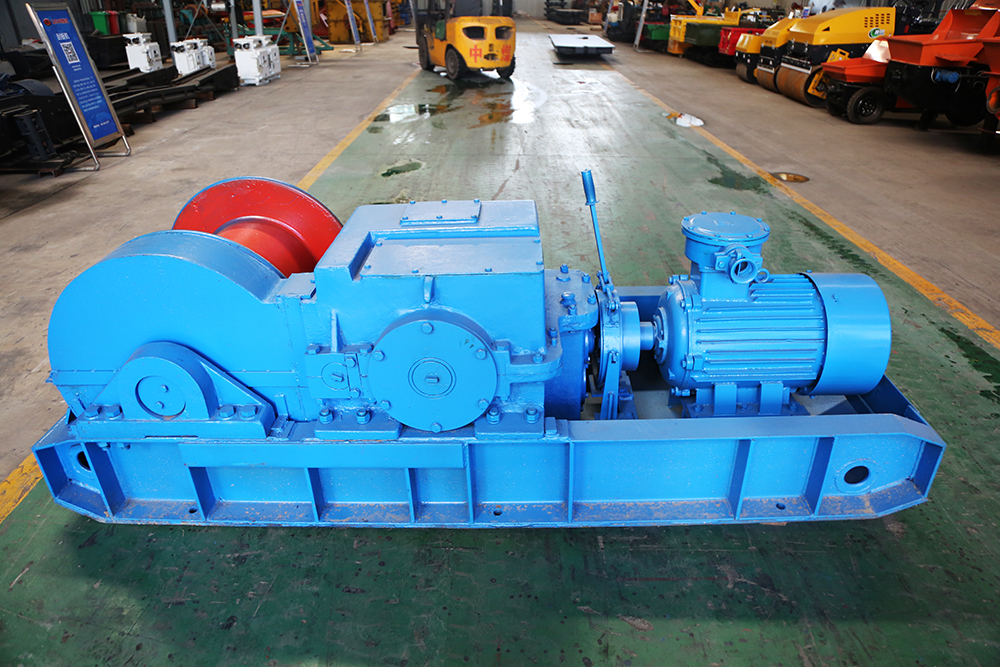

  • JH-8 Mining Prop Pulling Winch

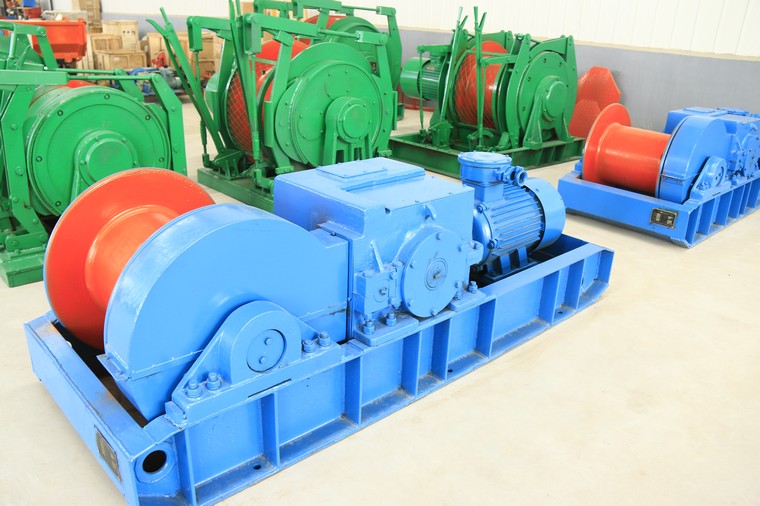

  • JH-8 Mining Prop Pulling Winch
