JH-14 Prop Pulling Winch

JH-14 Prop Pulling Winch

JH-14 prop pulling winch is of single-cylinder winding with worm gear reducer and open gear drive. The traction of the integrated coal mining equipment and the traction power installed on the working

Introduction of

JH-14 Prop Pulling Winch

JH-14 prop pulling winch is of single-cylinder winding with worm gear reducer and open gear drive. The traction of the integrated coal mining equipment and the traction power installed on the working face can also be used as the traction winch for auxiliary work such as transporting, moving chute and moving belt conveyor head. When the JH-14 back column winch is used in coal mines, the methane, coal dust, hydrogen sulfide, carbon dioxide, etc. in the surrounding air shall not exceed the safety content specified in the Coal Safety Regulations.

Main Parameter of

JH-14 Prop Pulling Winch

Model

JH-14

Steel wire rope average static tension (KN)

140

Steel wire rope average speed (m/s)

0.1055

Capacity (m)

130

Drum diameter (mm)

Φ400

Steel wire rope diameter (mm)

Φ21.5

Total gear ratio

188

Motor

YBK200L-8

Motor Power (KW)

15

Voltage (V)

380/660

Speed (r/min)

730

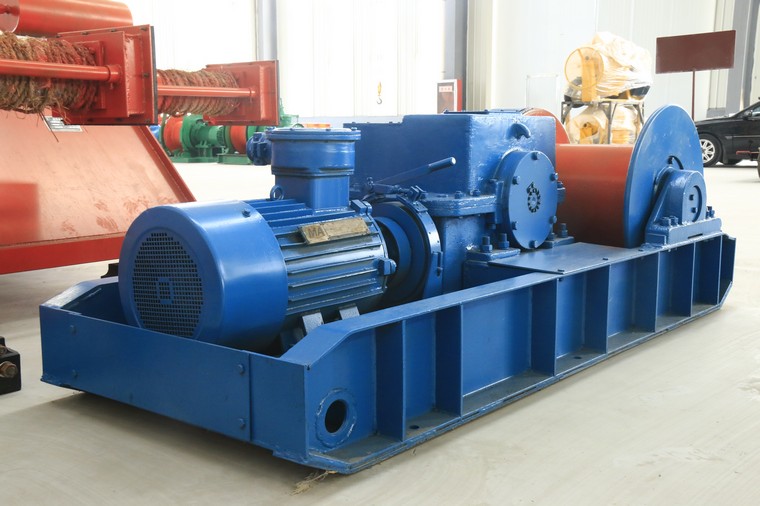

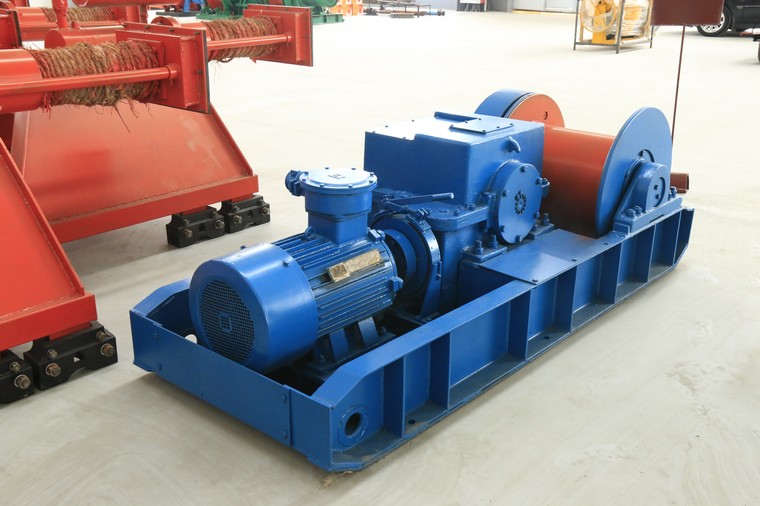

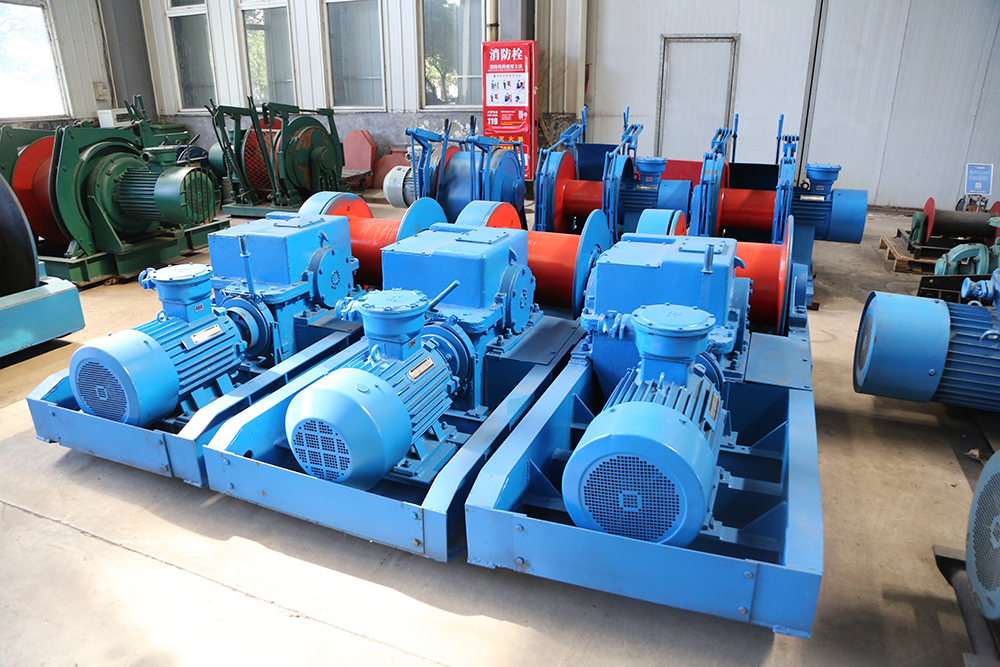

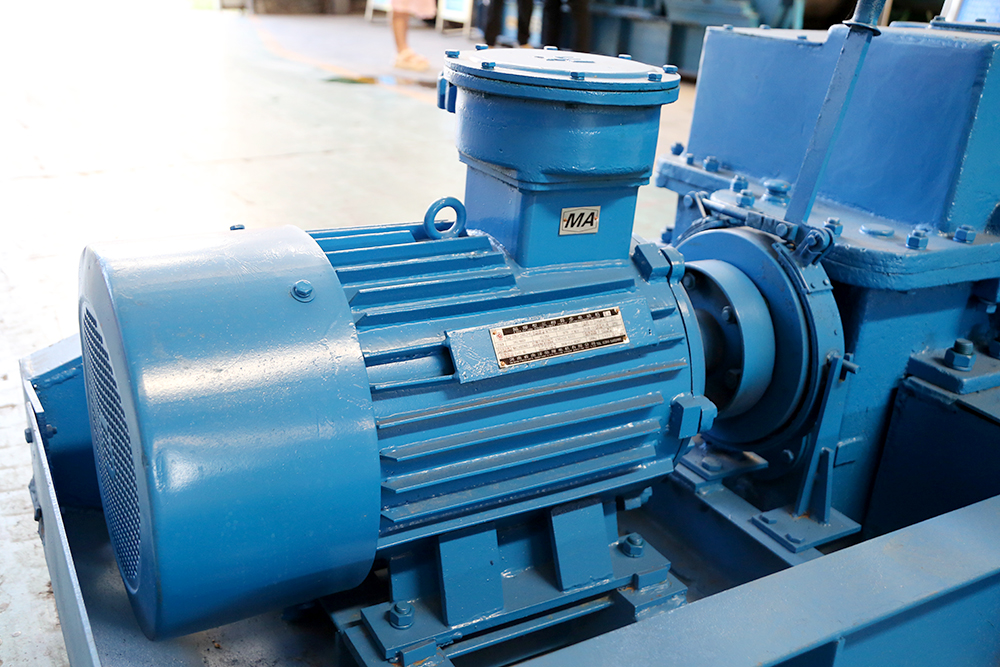

Photos Of

JH-14 Prop Pulling Winch

  • JH-14 Prop Pulling Winch
  • JH-14 Prop Pulling Winch
