JTK Series Explosion Proof Mining Lifting Winch

JTK Series Explosion Proof Mining Lifting Winch

Date:2018-11-28     Label:

Mining Lifting Winch

Lifting Winch

Winch

The diameter of the lifting winch drum is divided into 0.8, 1.0, 1.2, 1.6 and other specifications. Among them, the 0.8, 1.0, and 1.2 specifications are divided into whole or split models. The typical

Contact Us Product Center
Introduction of

JTK Series Explosion Proof Mining Lifting Winch

The diameter of the lifting winch drum is divided into 0.8, 1.0, 1.2, 1.6 and other specifications. Among them, the 0.8, 1.0, and 1.2 specifications are divided into whole or split models. The typical structure of the JTKB series explosion proof mining lifting winch is braked with block brakes and is divided into a working brake structure and a safety brake structure. The winch has the characteristics of simple overall structure, convenient operation, easy maintenance and convenient adjustment. It is an ideal lifting device selected by small and medium-sized mines.

MAIN PARAMETER OF

JTK Series Explosion Proof Mining Lifting Winch

model

JTKB-0.8×0.6



Load (kn)

Max. static tension

15

Max. static tension difference

15



Capacity (m)

First

91

Second

185

Third

252

Wire rope

Diameter (mm)

14

Speed (m/s)

1.3



Motor

Model

YB2-200L2-6

Power (kw)

22

Speed (r/min)

960

Reduction ratio

30

Dimension (L*W*H) mm

2250x1480z1400

weight (kg) (without electronic control)

2460

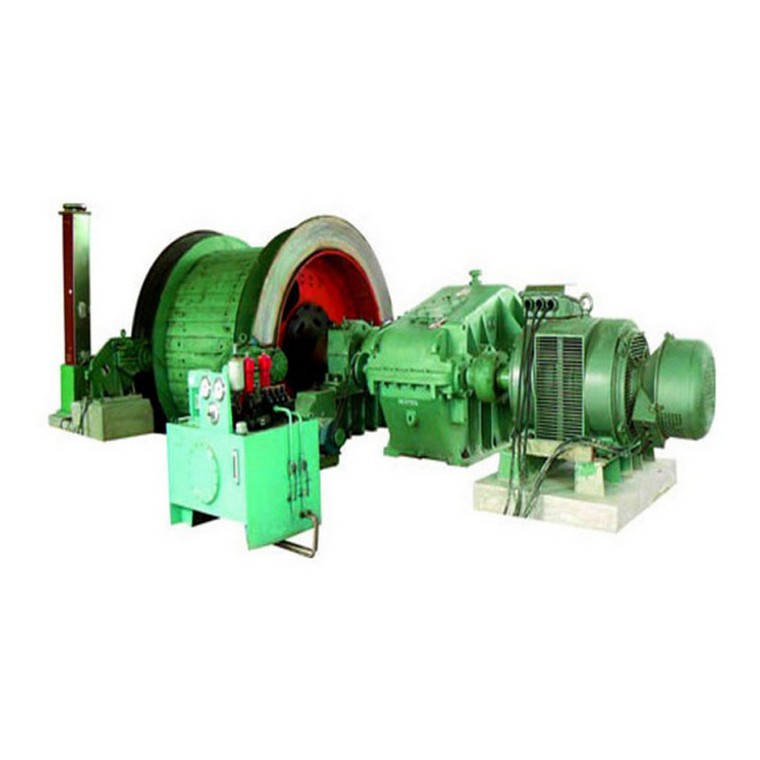

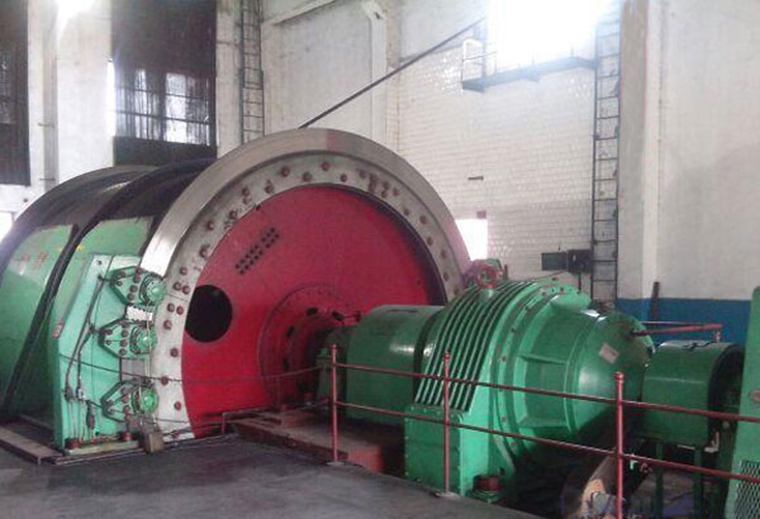

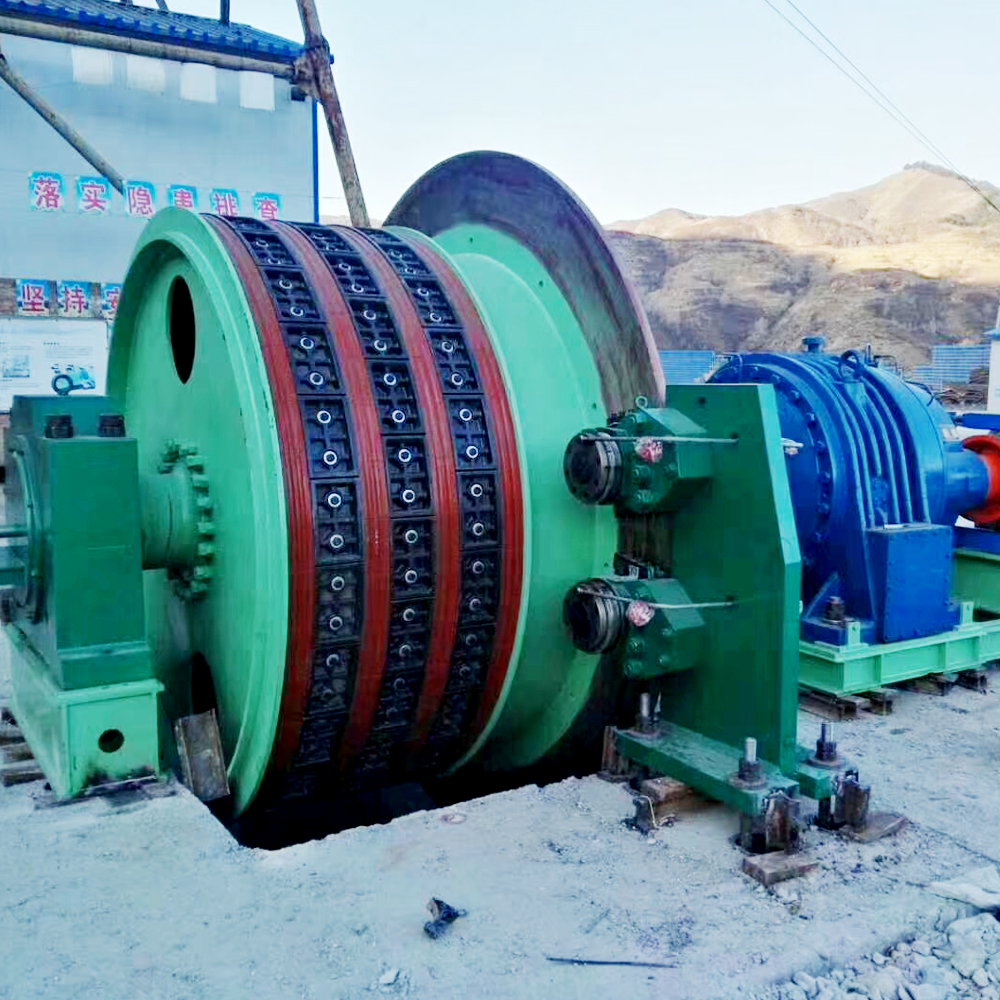

PHOTOS OF

JTK Series Explosion Proof Mining Lifting Winch

JTK Series Explosion Proof Mining Lifting Winch
JTK Series Explosion Proof Mining Lifting Winch

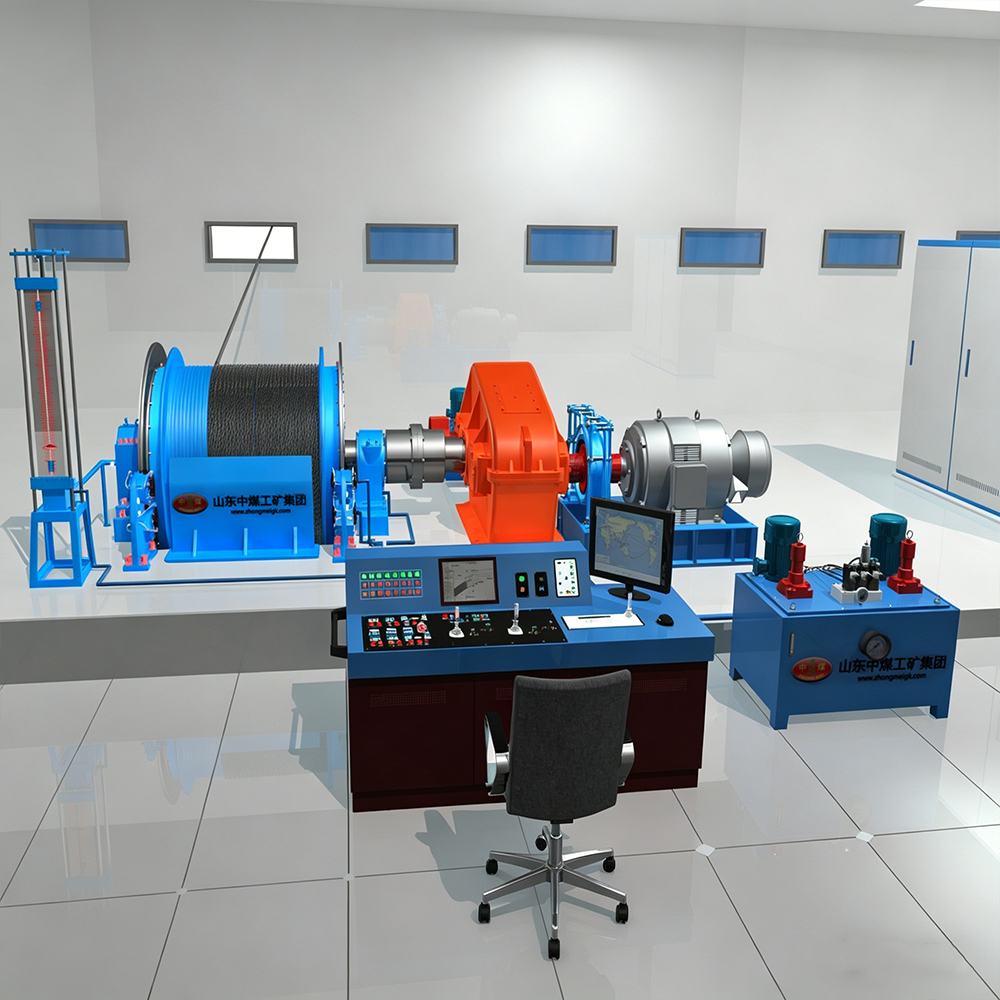

PHOTOS OF

JTK Series Explosion Proof Mining Lifting Winch
