JZ-10/800 shaft sinking winch is mainly used in mine, metal mine and non-metal mine shaft tunneling suspension tray, water pump, water pipe, grouting pipe, air cylinder and other tunneling equipment.
Contact Us Product Center
JZ-10/800 shaft sinking winch is mainly used in mine, metal mine and non-metal mine shaft tunneling suspension tray, water pump, water pipe, grouting pipe, air cylinder and other tunneling equipment. It can also be used instead of construction winch for ground building and handling. JZ-10/800 shaft sinking winch is designed according to the working system of suspension equipment during shaft excavation, so it is only suitable for short-term working system, but not for long-term crane operation.
(1) winches should not be used in places where flammable or explosive gases such as gas and coal dust are present.
(2) the ambient temperature of winch operation is from -25 to 40 C.
(3) When the altitude exceeds 1000m, the cooling effect of air and the decrease of dielectric strength should be taken into account. The selected electrical equipment should be designed or used according to the agreement between the manufacturer and the user.

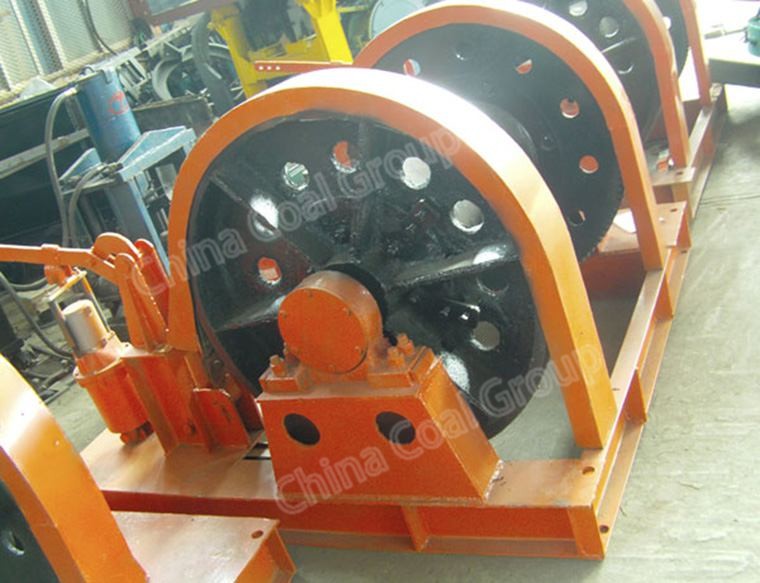

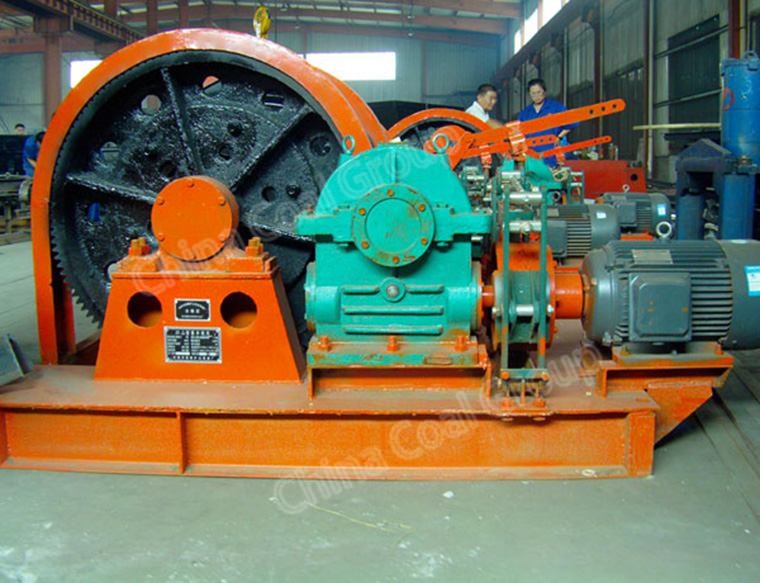

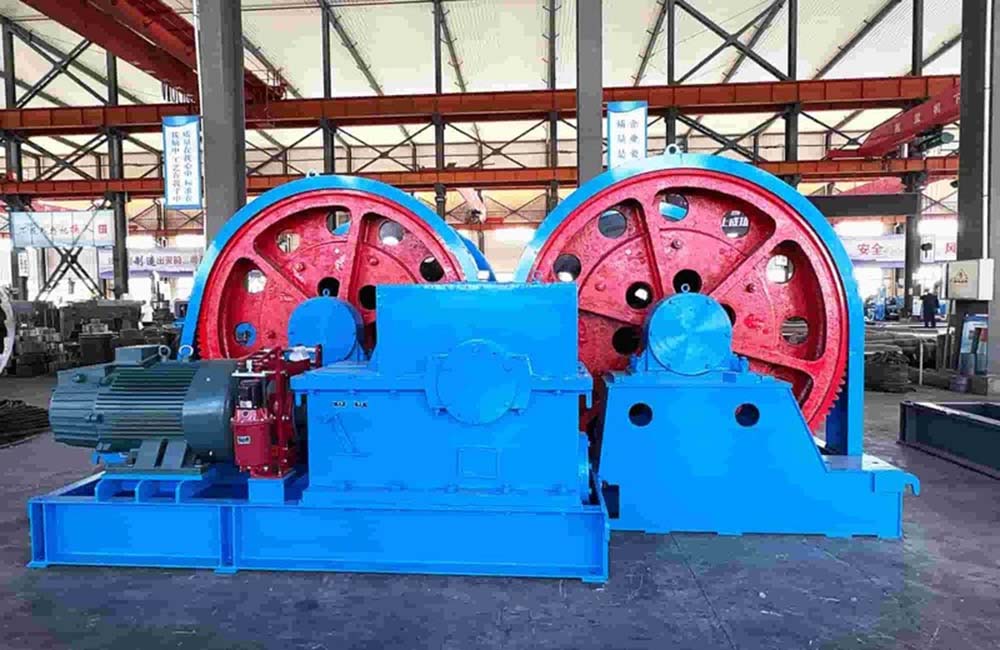

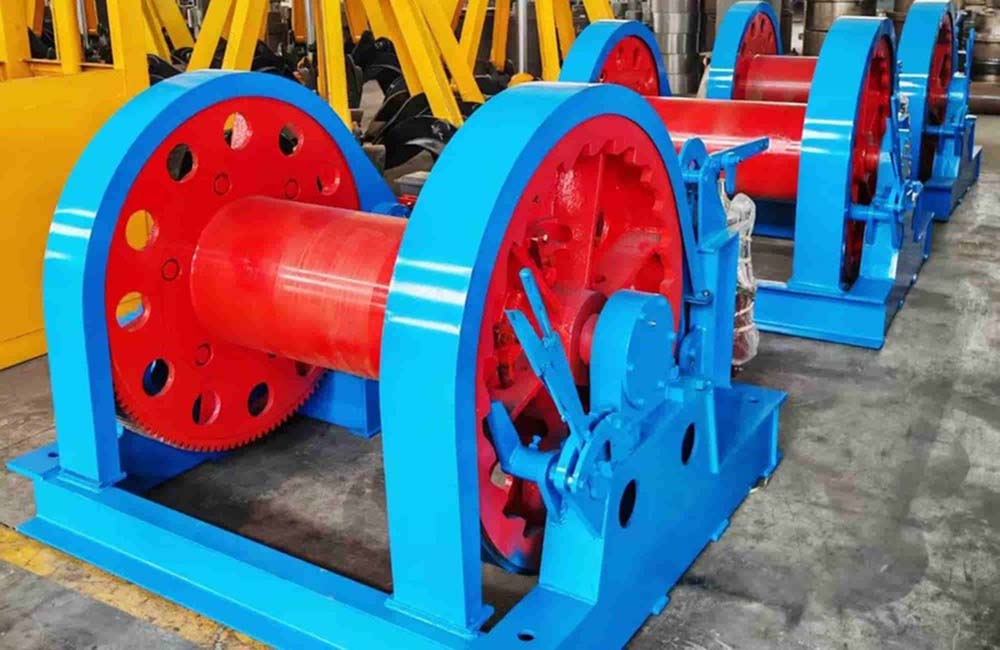

The structure of JZ-10/800 shaft sinking winch is winding type. It mainly consists of main shaft device, reducer, elastic coupling with brake wheel, working brake, safety brake, frame, motor and other components.
The spindle device includes: main shaft, gear, reel, brake wheel, bearing seat and bearing. The reducer is made of spherical worm gear reducer, plus one speed gear. Changing the speed control lever to slow and slow position can change two speeds. The working brake adopts tile brake, starting motor, loosening brake of electro-hydraulic actuator, and spring force braking when stopping motor. The full brake is a floating tile, and is driven by the dropping of the heavy hammer, and the electric hydraulic propeller looses the brake.
|
Model: |
JZ-10/800 |
|
Maximum static tension of wire rope (kN) |
100 |
|
Drum capacity (m) |
800 |
|
Wire rope speed (m/min) |
Fast 6 slow 3 |
|
Diameter of wire rope (mm) |
31 |
|
Motor power (KW) |
22 |
|
Motor voltage (V) |
380 |
|
Outline size (L*W*H) (mm) |
3342 *3906 *1825 |
|
Weight (kg) |
6500 |
