There are two types of JM Electric Mining Low Speed Winch: small pull capacity and large pull capacity. Large pull capacity mostly are applicable to port building, traction of shipyard, steel structur
Contact Us Product Center

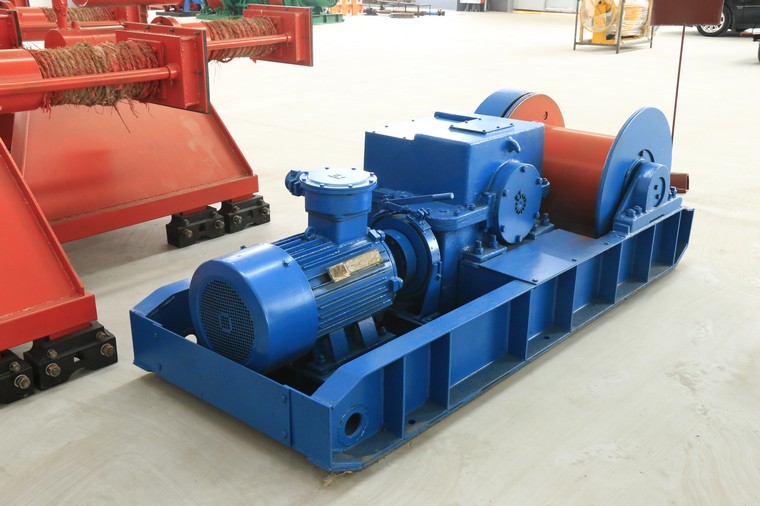

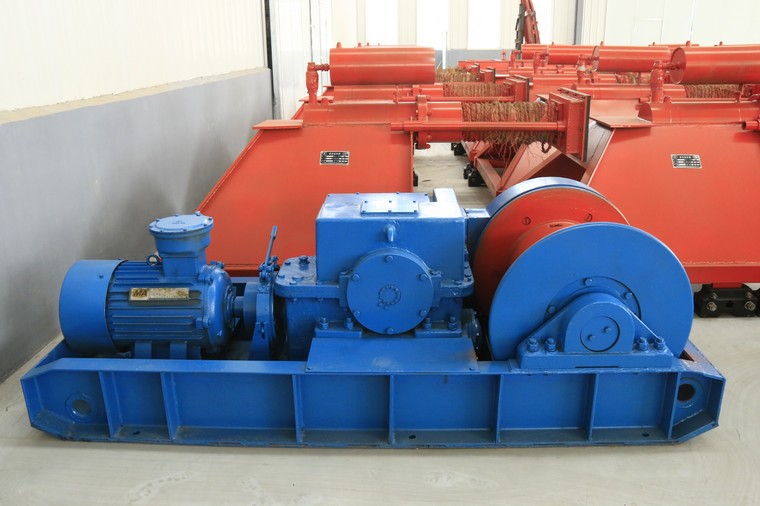

There are two types of JM Electric Mining Low Speed Winch: small pull capacity and large pull capacity. Large pull capacity mostly are applicable to port building, traction of shipyard, steel structure transport and assemble, disassemble, pulling machines. Its feature is that line rope pull large, sometimes with rope guider for wire rope dispose trimly, safety and credible
Small pull capacity mostly are applicable for construction, lifting, disassembly, traction, assembly in construction company, mine, factory and so on.
Standard electrical hoist:
3ton with 180m wire rope, motor power 7.5kw,speed:10m/min, wire rope dia:16mm
5ton with 250m wire rope, motor power 11kw, speed:10m/min,wire rope dia:22mm
10ton with 450m wire rope, motor power 30kw, speed:9m/min, wire rope 30mm
Also we can supply any length wire rope on drum as client requirement.
MAIN PARAMETER OF|
Model |
JM 2 T |
JM 3 T |
JM 5 T |
|
|
Rated Line Pull KN |
20 |
30 |
50 |
|
|
Total Transmission ratioI |
54.9 |
88.6 |
119.34 |
|
|
Drum |
Dia.XL MM |
219X535 |
1273X594 |
325X640 |
|
Wire rope length M |
180 |
150 |
200 |
|
|
Wire rope |
Specification |
6X19 |
6X19 |
6X19 |
|
Diameter MM |
12.5 |
15.5 |
19.5 |
|
|
Lifting Speed M/MIM |
16 |
16 |
9 |
|
|
motor |
Model |
YZR132M-6 |
YZR160M-6 |
YZR160L-6 |
|
Power KW |
7.5 |
11 |
11 |
|
|
Speed R/MIM |
960 |
960 |
960 |
|
|
Arrester brake model |
TJ2-200 |
TJ2-200 |
YZW300/45 |
|
|
Dimension MM |
980X880X530 |
1130X1020X550 |
1310X1240X800 |
|
|
Weight KG |
425 |
585 |
950 |
|
