JZ series sinking winches are used in coal mine, metal mine, non-metallic mine for hanging the swaying tray, water pump, air compressor, grouting tube, wind-cone and other excavation facilities, also

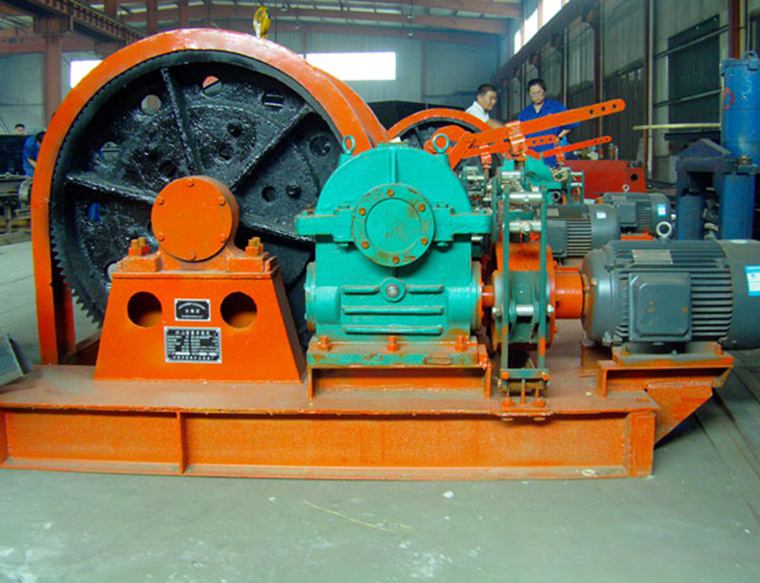

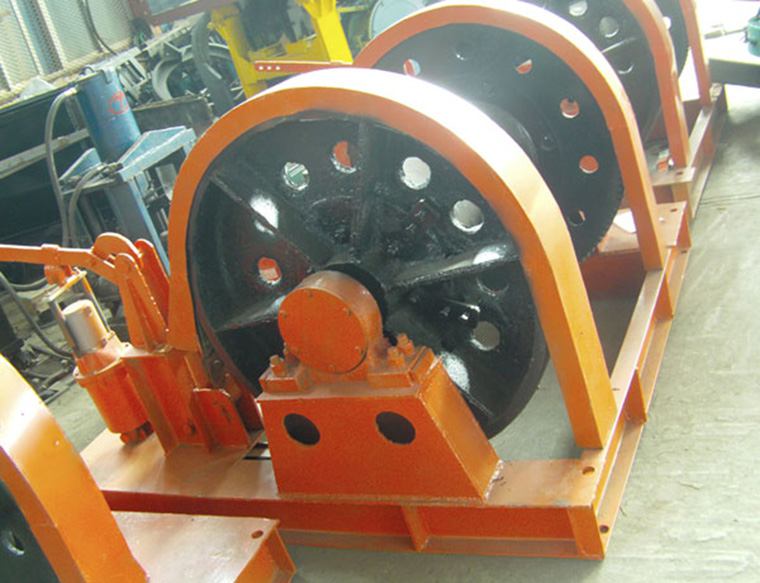

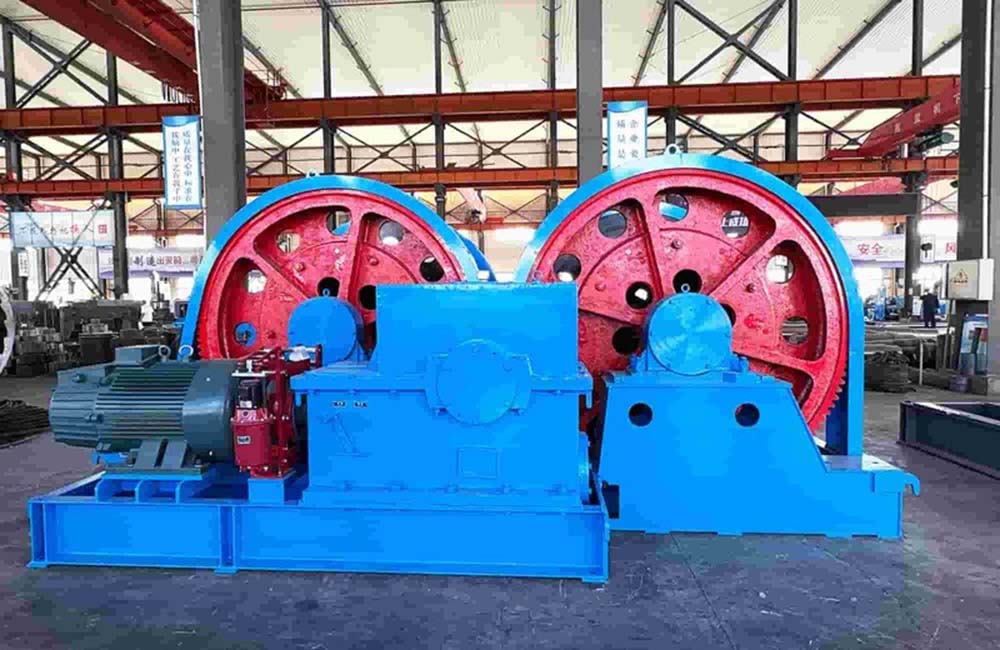

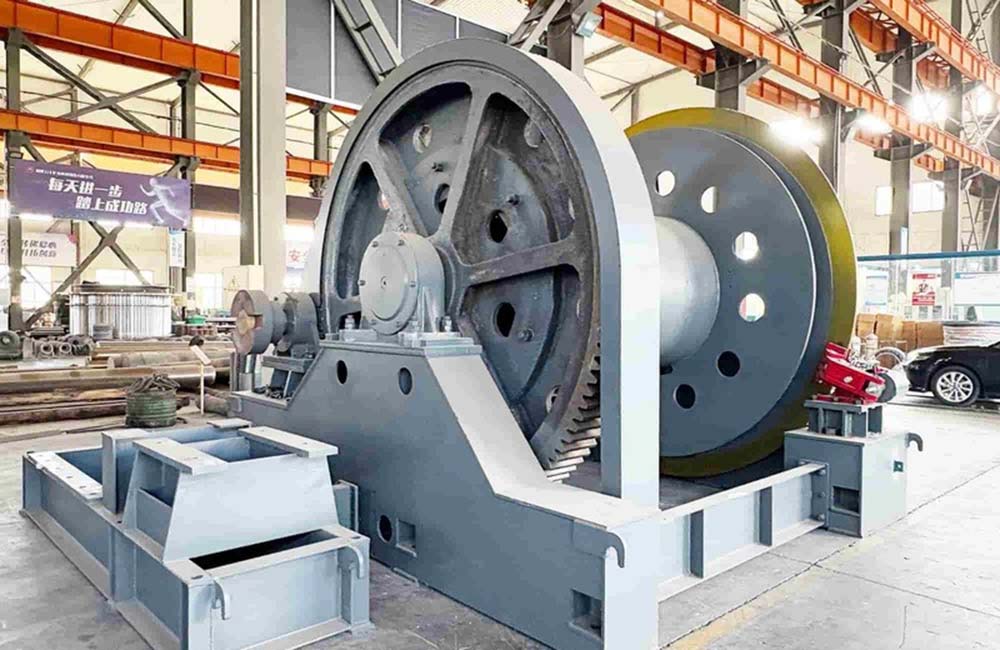

Contact Us Product CenterJZ Shaft Sinking Winch for Coal Mining is used in coal mine, metal mine, non-metallic mine for hanging the swaying tray, water pump, air compressor, grouting tube, wind-cone and other excavation facilities, also can use for hanging heavy loads on surface and underground.
mine winch with hydraulic thrust Fail safe brake for mine shaft lifting and pulling.
variable speed , local contril and radio remote control.
1.set one/two hydraulic thrust Failsafe brake and one hydraulic disk drum brake,
2.compact in structure, easy to operation, safe and reliable. frequency conversion and joystick controller for speed control. 3. emergency stop, power failure safety brake, over winding protection
|
Model |
JZ-5/400 |
JZA-5/600 |
JZ-10/800/1000 |
JZ-16/800 |
JZ-16/1000/1300 |
JZ-25/1300/1500 |
||
|
Maximum Static Tension of Rope |
5000KG |
5000KG |
10000KG |
16000KG |
16000KG |
25000KG |
||
|
Rope Capacity |
400M |
600M |
800/1000M |
800M |
800/1300M |
1300/1500M |
||
|
Mean Speed of Rope |
High Speed |
6M/MIN |
6M/MIN |
6M/MIN |
6M/MIN |
6M/MIN |
6M/MIN |
|
|
Low Speed |
3M/MIN |
3M/MIN |
3M/MIN |
3M/MIN |
3M/MIN |
3M/MIN |
||
|
Twisting Layers |
6 Layers |
10 Layers |
7 Layers |
6 Layers |
7 Layers |
9 Layers |
||
|
Rope Diameter |
23MM |
23MM |
31MM |
40MM |
40MM |
52MM |
||
|
Winding Drum |
Diameter |
400MM |
400MM |
800MM |
1000MM |
1000MM |
1050MM |
|
|
Width |
900MM |
1000MM |
1050MM |
1400MM |
1400MM |
1560MM |
||
|
Center Height |
650MM |
580MM |
800MM |
1050MM |
1050MM |
1250MM |
||
|
Speed Ratio |
Reducer |
High Speed |
50 |
50 |
63.5 |
77 |
77 |
77 |
|
Low Speed |
100 |
100 |
127 |
154 |
154 |
154 |
||
|
Overall gear ratio |
High Speed |
252.5 |
252.5 |
388 |
506.6 |
506.6 |
506.6 |
|
|
Low Speed |
505 |
505 |
776 |
1013.2 |
1013.2 |
1013.2 |
||
|
Motor |
Model |
Y160L-6 |
Y160L-6 |
Y200L2-6 |
YR250M1-8 |
YR250M1-8 |
YZR280M-8 |
|
|
Power |
11KW |
11KW |
22KW |
30KW |
30KW |
55KW |
||
|
Rotate Speed |
970 Rp/M |
950 Rp/M |
970 Rp/M |
720 Rp/M |
720 Rp/M |
728 Rp/M |
||
|
Voltage |
380V |
380V |
380V |
380V |
380V |
380V |
||
