JTP mine hoist winch whole structure : roller, reducer, motor into a shaped arrangement. Main components: spindle device, reducer, hydraulic disc brakes, hydraulic station, depth indicating device, sp
Contact Us Product Center

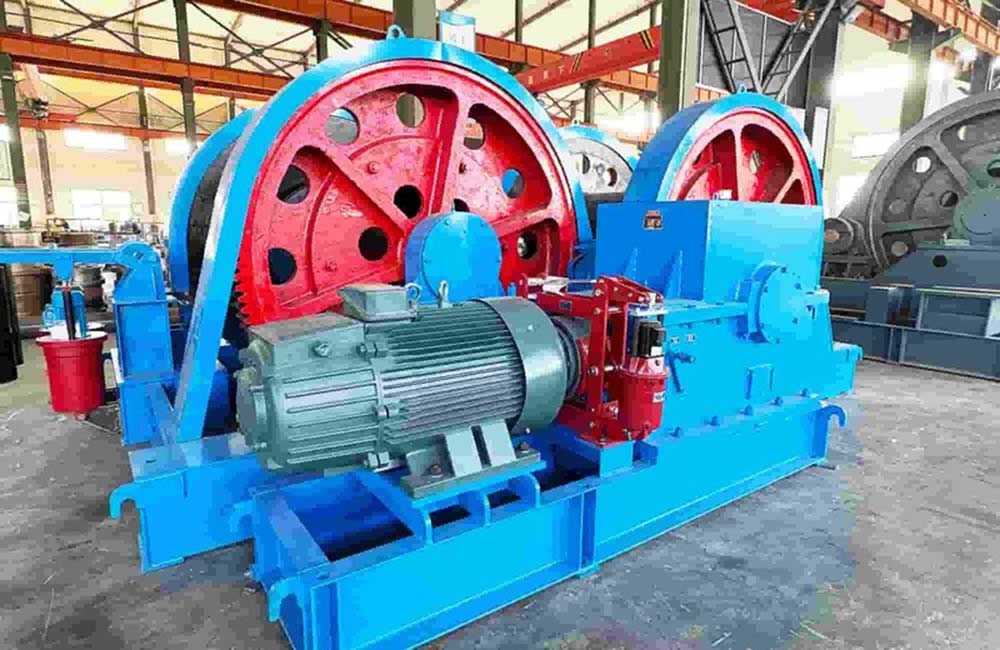

JTP Mine Hoist Winch is widely used in hoist shaft and inclined to enhance coal, ore, waste rock and lifting personnel, materials, tools and equipment.
JTP series mining lifting winches are mainly used for mine floor shafts and inclined shaft lifting materials, personnel and equipment, can also be used for underground transportation and sinking bucket lifting.

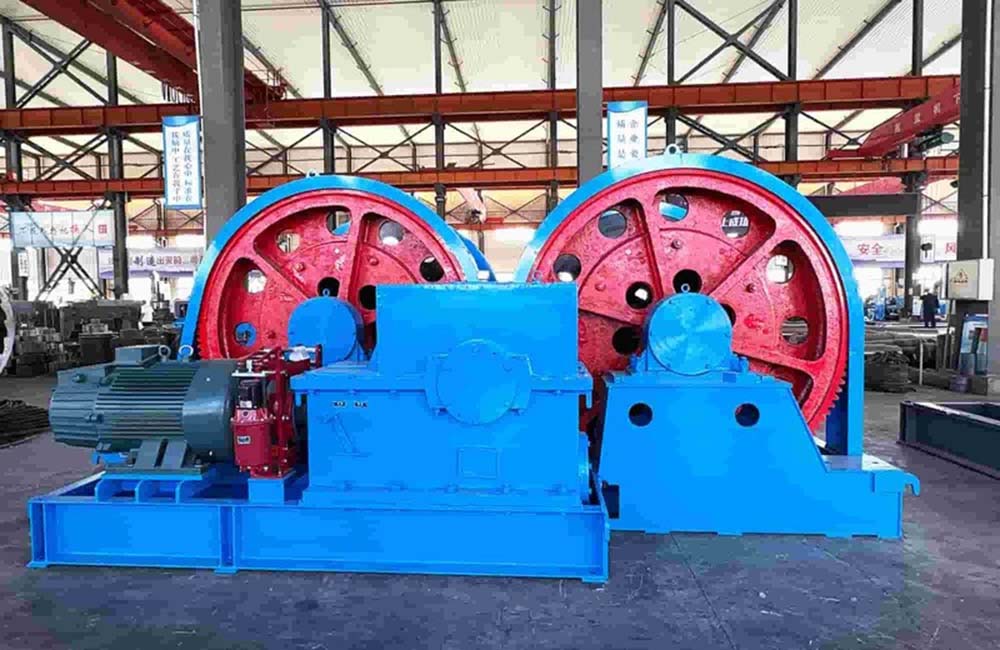

It can be single drum winch and double drum winch.

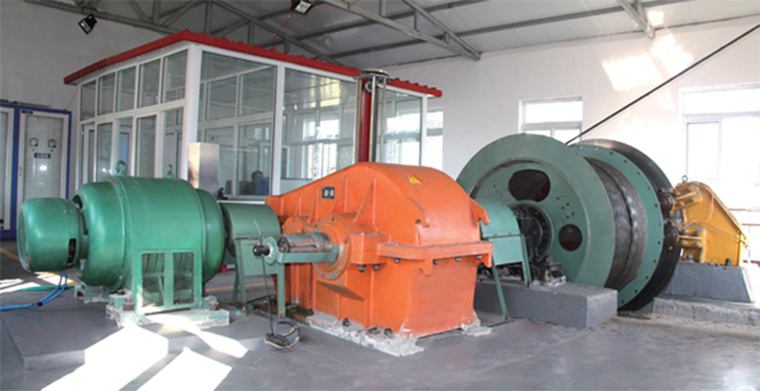

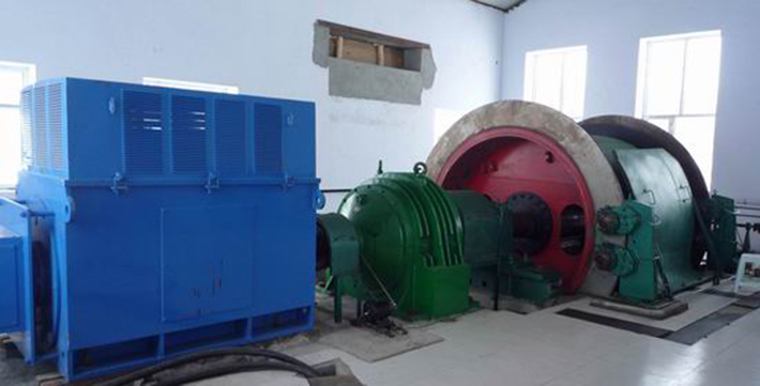

JTP mine hoist winch whole structure : roller, reducer, motor into a shaped arrangement. Main components: spindle device, reducer, hydraulic disc brakes, hydraulic station, depth indicating device, speed power plant, mechanical centrifugal speed limiting device, console and electronic control equipment.
JTP mine hoist winch with AC and DC drag two kinds; exchange drag speed mode is divided into: AC wound resistor in series with the motor rotor speed control and frequency control. Electrical device control modes: relay control and PLC control, voltage range: 380V-10KV. In the PLC control ,can be configured according to user requirements fault diagnostic display, color touch screen and reservation network interface, to complete remote network control.
MAIN PARAMETER OF|
Model |
Drum |
Max. Wire rope tension KN |
Wire Rope Max. Length m |
Wire rope |
Average lifting speed m/s |
Electric motor |
Dimension |
Weight |
|||||
|
Diameter mm |
Width |
The first layer |
The second layer |
The third layer |
Max Dia. mm |
Breaking pull sum |
Rotating speed r/min |
Power KW |
|||||
|
JTPB-1.2*1.0 |
1200 |
1000 |
30 |
170 |
344 |
516 |
20 |
275 |
1.88-2.4 |
967 |
55-75 |
4658*2680*1450 |
10421 |
|
JTPB-1.2*1.2 |
1200 |
1200 |
30 |
203 |
412 |
620 |
20 |
275 |
1.57-2.4 |
967 |
55-75 |
4458*2680*1450 |
9940 |
|
JTPB-1.6*1.2 |
1600 |
1200 |
45 |
215 |
433 |
655 |
26 |
405 |
1.56-4 |
975 |
95-155 |
5224*2800*1925 |
15195 |
|
JTPB-1.6*1.5 |
1600 |
1500 |
45 |
269 |
542 |
819 |
26 |
405 |
1.56-4 |
975 |
95-155 |
5524*2800*1925 |
15678 |
|
JKB-2 X1.8P |
2000 |
1800 |
62 |
332 |
670 |
1013 |
32 |
558 |
2.5 |
735 |
200 |
6410*3234*2600 |
25560 |
|
JKB-2 X1.5P |
2000 |
1500 |
62 |
277 |
557 |
842 |
32 |
558 |
2.5 |
735 |
200 |
6160*3234*2600 |
24780 |
|
JKB-2.5X2P |
2500 |
2000 |
83 |
373 |
755 |
1143 |
40 |
747 |
3 |
740 |
315 |
6700*3610*2600 |
36998 |
|
JKB-2.5X2.3P |
2500 |
2300 |
83 |
429 |
867 |
1312 |
40 |
747 |
3 |
740 |
320 |
7000*3610*2600 |
39620 |
