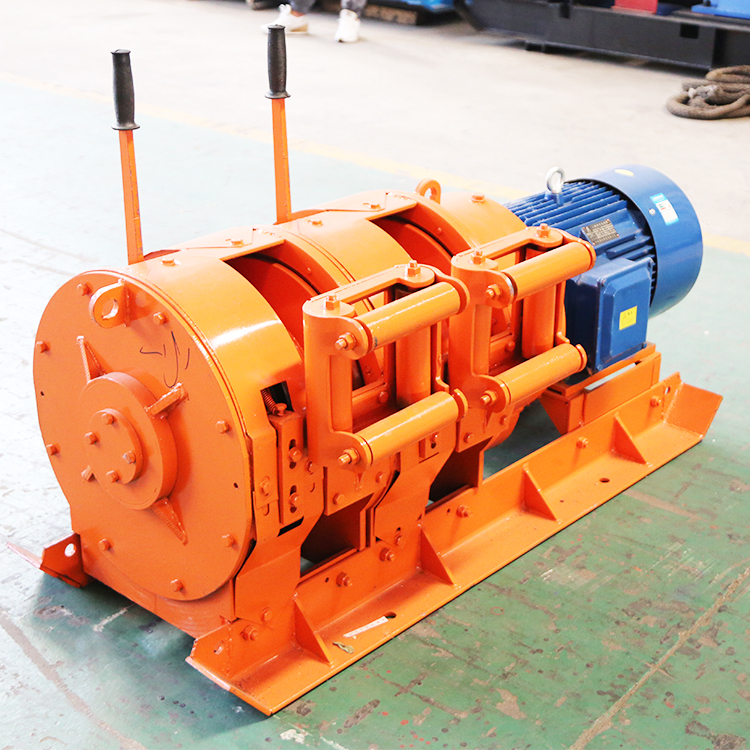

Main wire rope's average speed of 2JP(B)-55 44KN Mining Electric Scraper Winch up to 1.2 m/s, electric power is 55kw
Contact Us Product Center
We supply wide range of mining winches Mine Winders such as 2JPB Scraper Winch, JM Slow Speed Winch, JK High Speed Winch, Prop Pulling Winch, Dispatching Winch, Shaft Sinking Winch, Mining Hoist Winch, Double Speed Winch.
2JPB Scraper winch is mainly used for underground coal or metal mines handling and filling operations. It is mainly used for horizontal haulage or slopes with small dip angles and cannot be used as lifting equipment. The worker can operate by hand next to the winch, or it can be operated with a button from a few meters to several tens of meters from the winch.
MAIN PARAMETER OF|
|
unit |
Model |
|||||
|
2JPB-7.5 |
2JPB-15 |
2JPB-22 |
2JPB-30 |
2JPB-55 |
|||
|
2JP-7.5 |
2JP-15 |
2JP-22 |
2JP-30 |
2JP-55 |
|||
|
Main wire rope Min. tension |
N |
8000 |
14000 |
20000 |
275000 |
44000 |
|
|
|
Main wire rope |
±5%m/s |
1.0 |
1.10 |
1.20 |
1.20 |
1.20 |
|
Secondary wire rope |
1.0 |
1.50 |
1.50 |
1.60 |
1.80 |
||
|
|
Main wire rope |
mm |
9.3 |
12.5 |
14.0 |
15.5 |
18.5 |
|
Secondary wire rope |
9.3 |
11.0 |
11.0 |
14.0 |
16.0 |
||
|
|
Dia. |
mm |
205 |
225 |
280 |
280 |
350 |
|
Rim diameter |
mm |
350 |
435 |
510 |
510 |
625 |
|
|
Width |
mm |
80 |
125 |
160 |
160 |
180 |
|
|
|
Main Drum |
m |
45 |
80 |
80 |
80 |
100 |
|
Secondary Drum |
m |
45 |
100 |
100 |
110 |
130 |
|
|
|
Model |
/ |
YBK?-132M-4 |
YBK?-160L-4 |
YBK?-180L-4 |
YBK?-200L-4 |
YBK?-250M-4 |
|
/ |
Y?-132M-4 |
Y?-160L-4 |
Y?-180L-4 |
Y?-200L-4 |
Y?-250M-4 |
||
|
Power |
KW |
7.5 |
15 |
22 |
30 |
55 |
|
|
Rotating speed |
r/min |
1440 |
1460 |
1470 |
1470 |
1470 |
|
|
|
L |
mm |
1210 |
1525 |
1600 |
1650 |
2070 |
|
W |
mm |
565 |
660 |
730 |
820 |
1010 |
|
|
H |
mm |
490 |
620 |
640 |
700 |
890 |
|
|
Total weight (excluding skips and pulleys) |
kg |
390 |
660 |
980 |
1155 |
2125 |
|
