The scraper winch is mainly used to metal, chemical, contribution and the mine etc, and the underground working, such as the transportation etc.

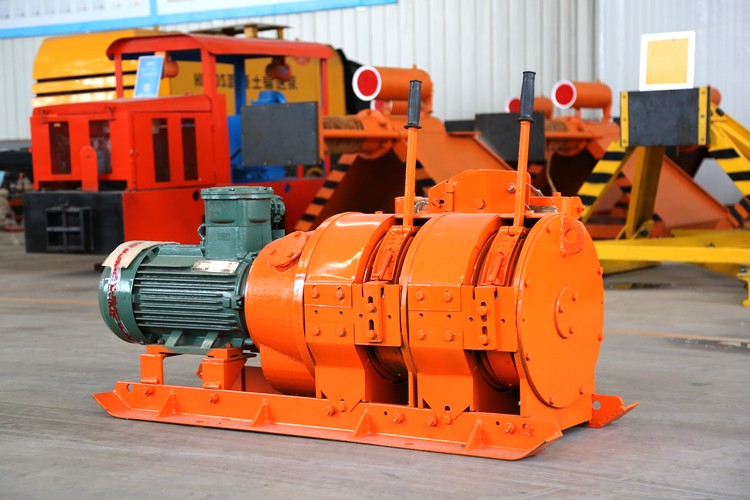

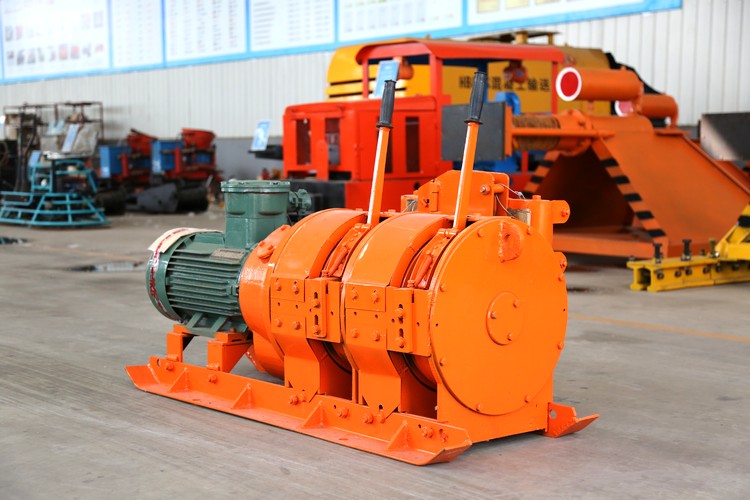

Contact Us Product Center2JPB Scraper winch is mainly used for underground coal or metal mines handling and filling operations. It is mainly used for horizontal haulage or slopes with small dip angles and cannot be used as lifting equipment. The worker can operate by hand next to the winch, or it can be operated with a button from a few meters to several tens of meters from the winch.
MAIN PARAMETER OF|
|
unit |
Model |
|||||
|
2JPB-7.5 |
2JPB-15 |
2JPB-22 |
2JPB-30 |
2JPB-55 |
|||
|
2JP-7.5 |
2JP-15 |
2JP-22 |
2JP-30 |
2JP-55 |
|||
|
Main wire rope Min. tension |
N |
8000 |
14000 |
20000 |
275000 |
44000 |
|
|
|
Main wire rope |
±5%m/s |
1.0 |
1.10 |
1.20 |
1.20 |
1.20 |
|
Secondary wire rope |
1.0 |
1.50 |
1.50 |
1.60 |
1.80 |
||
|
|
Main wire rope |
mm |
9.3 |
12.5 |
14.0 |
15.5 |
18.5 |
|
Secondary wire rope |
9.3 |
11.0 |
11.0 |
14.0 |
16.0 |
||
|
|
Dia. |
mm |
205 |
225 |
280 |
280 |
350 |
|
Rim diameter |
mm |
350 |
435 |
510 |
510 |
625 |
|
|
Width |
mm |
80 |
125 |
160 |
160 |
180 |
|
|
|
Main Drum |
m |
45 |
80 |
80 |
80 |
100 |
|
Secondary Drum |
m |
45 |
100 |
100 |
110 |
130 |
|
|
|
Model |
/ |
YBK-132M-4 |
YBK-160L-4 |
YBK-180L-4 |
YBK-200L-4 |
YBK-250M-4 |
|
/ |
Y-132M-4 |
Y-160L-4 |
Y-180L-4 |
Y-200L-4 |
Y-250M-4 |
||
|
Power |
KW |
7.5 |
15 |
22 |
30 |
55 |
|
|
Rotating speed |
r/min |
1440 |
1460 |
1470 |
1470 |
1470 |
|
|
|
L |
mm |
1210 |
1525 |
1600 |
1650 |
2070 |
|
W |
mm |
565 |
660 |
730 |
820 |
1010 |
|
|
H |
mm |
490 |
620 |
640 |
700 |
890 |
|
|
Total weight (excluding skips and pulleys) |
kg |
390 |
660 |
980 |
1155 |
2125 |
|
