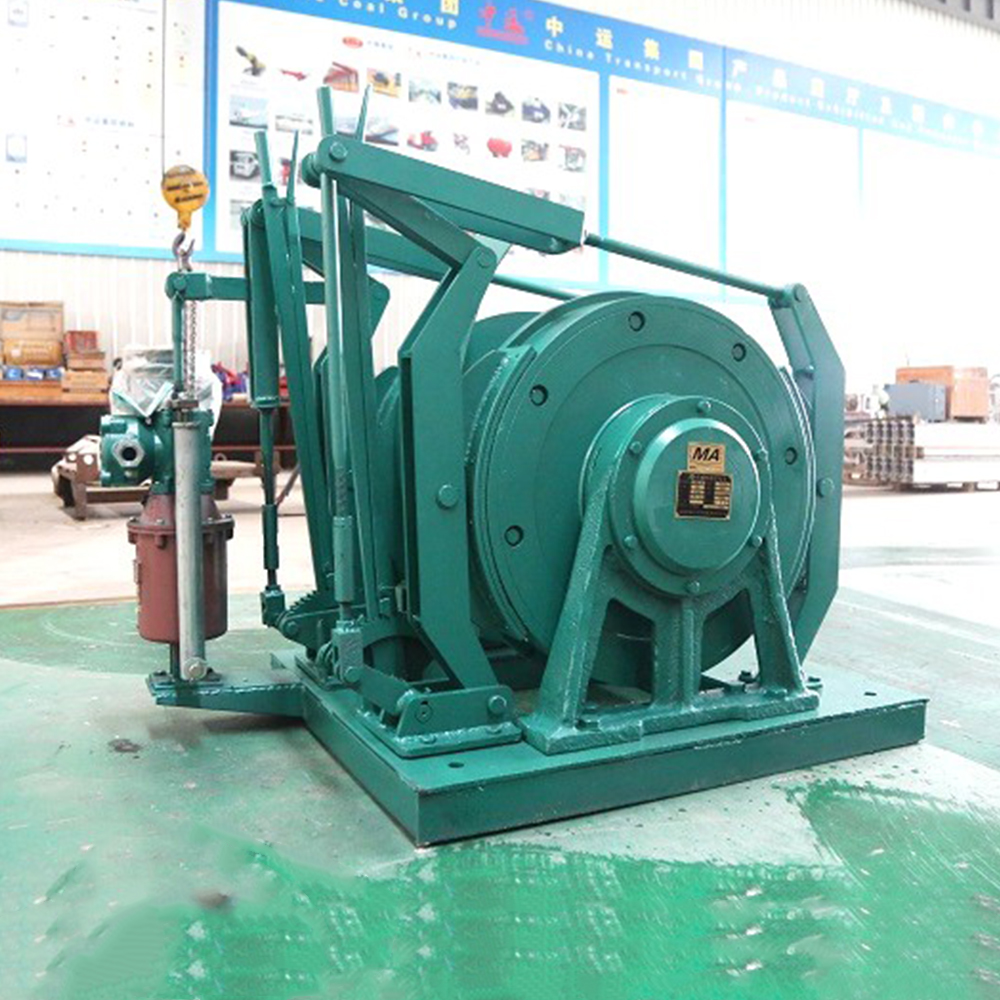

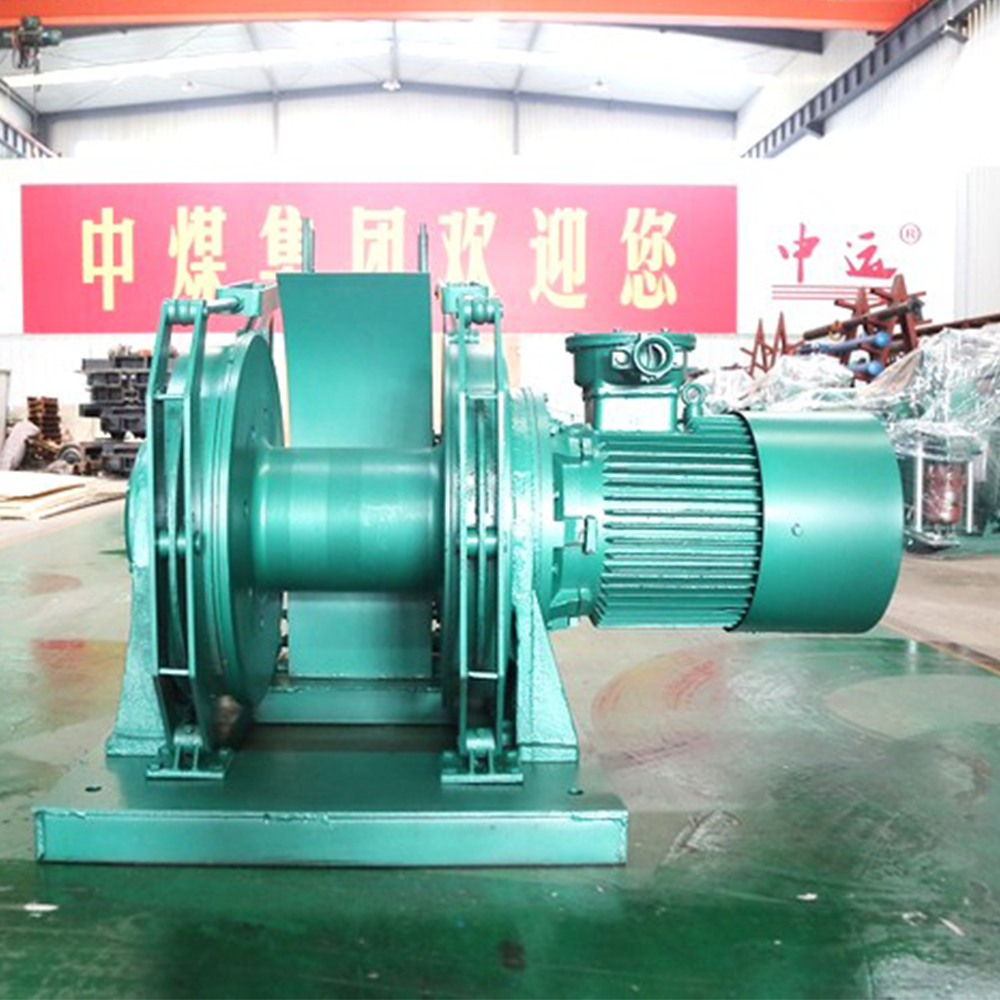

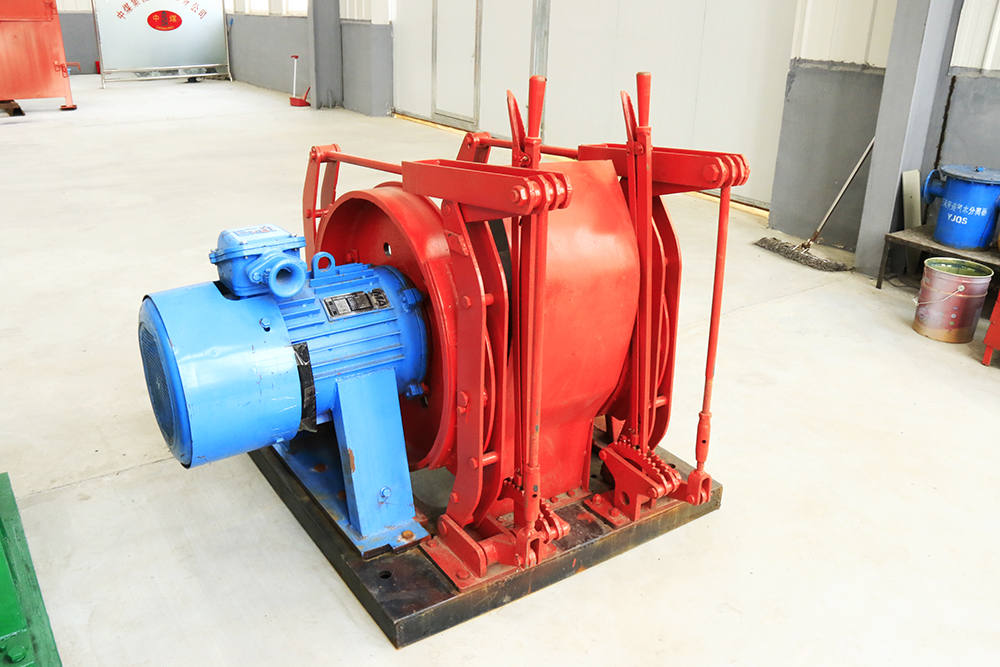

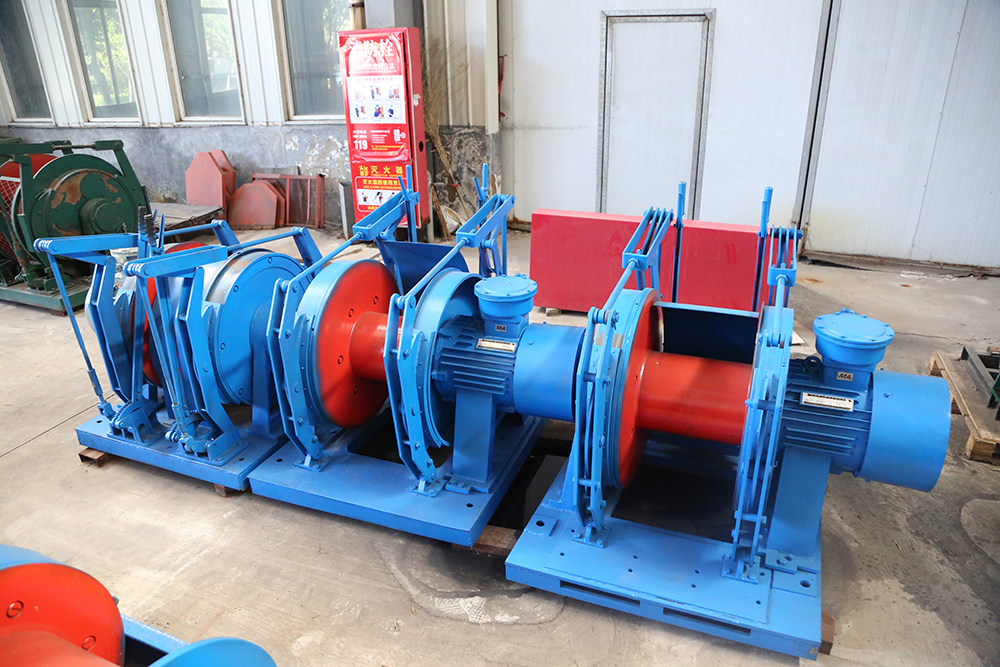

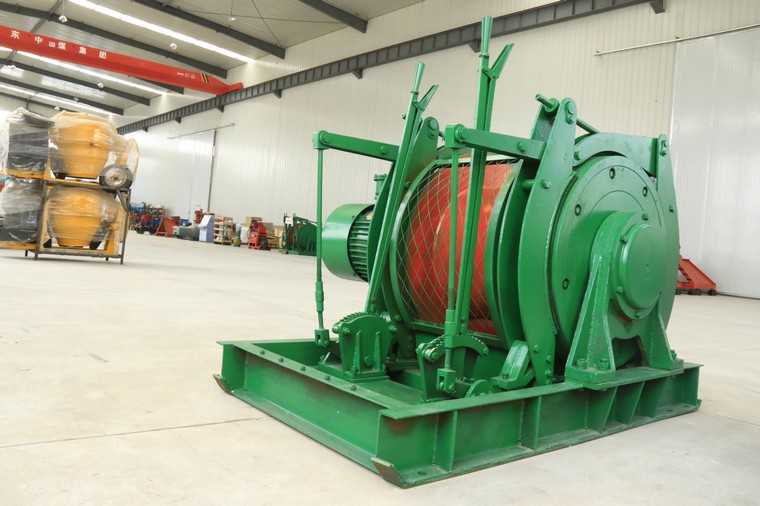

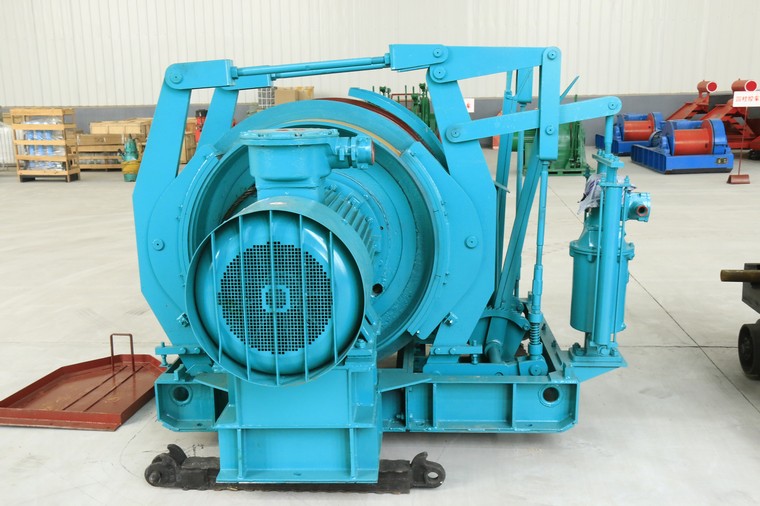

JD-1 10KN Electric Mining Dispatch Winch is widely used to pull the tramcar underground. The explosion-proof electric device can be applicable for the colliery and other mine with gas danger.
Contact Us Product Center
JD-1 10KN Electric Mining Dispatch Winch is widely used to pull the tramcar underground. The explosion-proof electric device can be applicable for the colliery and other mine with gas danger.
JD Dispatching Winch are all explosion-proof for mine or surface mine car loading operation grouping and hauling carts in the middle of roadways and other supporting transport purpose.
JD Dispatching Winch are used plantary gear drive, have following features:compact structure, good rigidity, high efficiency, conveniency for installing and moving, flexible operation, smooth braking, low noise.
MAIN PARAMETER OF|
Model specification |
JD-1 |
JD-1.6 |
JD-2.5 |
JD-4 |
|
|
Wire rope static tension KN |
10 |
16 |
25 |
40 |
|
|
Wire Rope speed （m/s） |
Min. |
0.433 |
0.733 |
1.16 |
0.95 |
|
Max. |
1.033 |
1.399 |
1.45 |
1.48 |
|
|
Average |
0.733 |
1.066 |
1.31 |
1.22 |
|
|
Wire Rope Size |
Wire Rope Dia.（mm） |
12.5 |
15 |
18.5 |
21.5 |
|
Length（m） |
400 |
400 |
500 |
850 |
|
|
Drum Size mm |
Φ224×304 |
Φ310×400 |
Φ620×580 |
Φ580×600 |
|
|
（Dia.×Width）(mm) |
|||||
|
Total Reduction Ratio |
41 |
32.5 |
42.24 |
32.75 |
|
|
Dimension |
1120×766×727 |
1435×1217×1255 |
1830×1794×1390 |
2200×1965×1425 |
|
|
(mm) |
|||||
|
Weight |
542 |
1370 |
2500 |
3750 |
|
|
（with motor）（kg） |
|||||
|
Explosion motor |
Model |
YBJ-11.4 |
YBJ-25 |
YBJ-40 |
YBK-280M-6- |
|
Power（KW） |
11.4 |
25 |
40 |
55 |
|
|
Revolution（r/min） |
1460 |
1465 |
1470 |
980 |
|
|
Voltage（V） |
380/660 |
380/660 |
380/660 |
380/660 |
|
|
Electrical equipment |
Explosion magnetic starter |
Qc83-80N |
Qc83-80N |
Qc83-80N |
BQZ-120N |
|
Explosion control button |
LA81-3 |
LA81-3 |
LA81-3 |
LA81-3 |
|
