JD-1.6 Explosion Proof Electric Winch for Scheduling Mine Cart

JD-1.6 Explosion Proof Electric Winch for Scheduling Mine Cart

1. By winding the wire rope, JD-1.6 Explosion Proof Electric Winch for Scheduling Mine Cart can draw and lower the heavy goods. 2.Though the drum's planetary gear reducer to slow down.

Introduction of

JD-1.6 Explosion Proof Electric Winch for Scheduling Mine Cart

1. By winding the wire rope, JD-1.6 Explosion Proof Electric Winch for Scheduling Mine Cart can draw and lower the heavy goods.
2.Though the drum's planetary gear reducer to slow down.
3.Through the brake to control rotate or stop rotate.

Main Parameter of

JD-1.6 Explosion Proof Electric Winch for Scheduling Mine Cart

Model
Parameter
JD-1 JD-1.6 JD-2.5 JD-4
Traction Force (KN) 10 16 25 40
Rope Speed
(m/s)
The minimum 0.433 0.733 1.16 0.95
The maximum 1.033 1.399 1.45 1.48
Everage 0.733 1.066 1.31 1.22
Rope capacity Rope's diameter (mm) 12.5 15 18.5 21.5
Rope's length (m) 400 400 500-650 850
Drum Size( Diameter* width) (mm) 224* 304 310* 400 620* 580 580* 600
Total reduction ratio 41 32.5 42.24 32.75
Overall size( length* width* height)(mm) 1120* 766* 727 1435* 1217* 1255 1830* 1794* 1390 2200* 1965* 1425
Winch weight( including electric motor) (kg) 542 1370 3250 3750
Explosion
proof
motor
Model YBJ-11.4 YBJ-25 YBJ-40 YBK2-280M-6
Power (kw) 11.4 25 40 55
Rotate Speed( r/min) 1460 1465 1470 980
Voltage (V) 380/660 380/660 380/660 380/660
Electrical
equipment
Explosion-proof magnetic
starter
Qc83-80N Qc83-80N Qc83-80N BQZ-120N
Explosion-proof control
button
LA81-3 LA81-3 LA81-3 LA81-3
Photos Of

JD-1.6 Explosion Proof Electric Winch for Scheduling Mine Cart

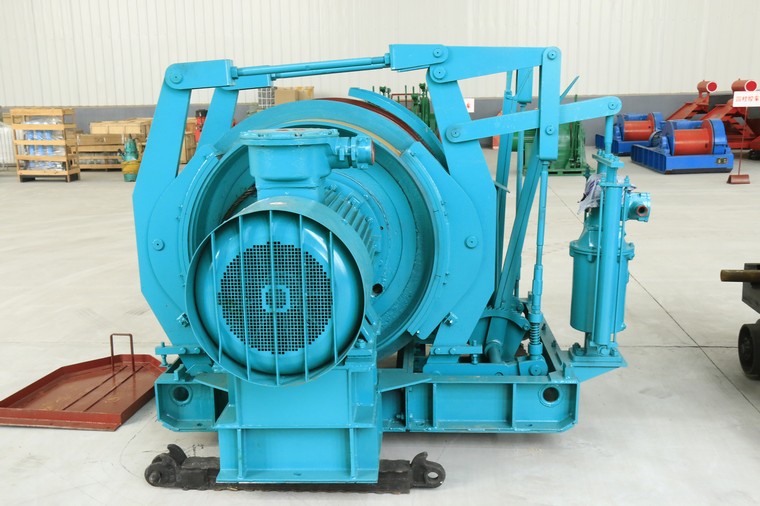

  • JD-1.6 Explosion Proof Electric Winch for Scheduling Mine Cart

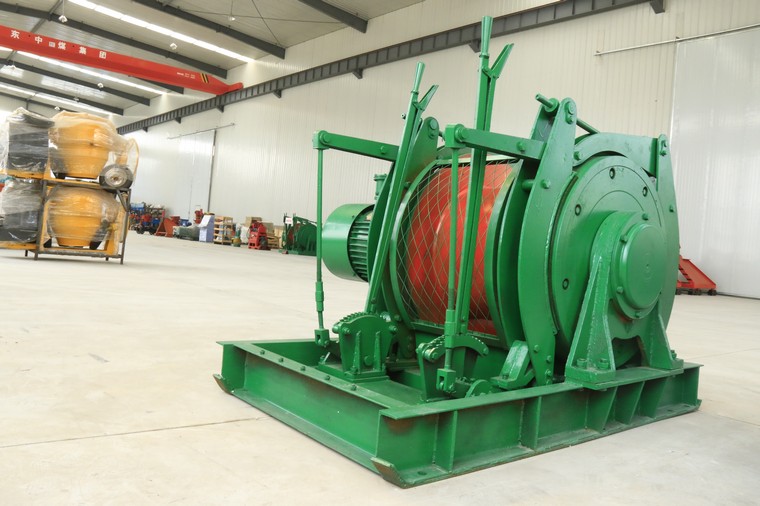

  • JD-1.6 Explosion Proof Electric Winch for Scheduling Mine Cart
