JD-2.5 Mining Dispatch Winch

JD-2.5 Mining Dispatch Winch

Date:2019-12-05     Label:

Dispatching Winch

Winch

Mining Winch

Dispatch Winch

Mining Dispatch Winch

JD-2.5 Mining Dispatch Winch

Structure of JD-2.5 Mining Dispatch Winch is compact and rotate flexible. The endless rope dispatching winch tows the tram cars or other equipment which are fixed on cable wire to solve the problem of

Contact Us Product Center
Introduction of

JD-2.5 Mining Dispatch Winch

The JD series dispatch winch is mainly used for underground mine dispatching or assisting traction. It can also be used for scheduling and other transportation work on mine floors, metallurgical mines or construction sites.

It consists of a motor, a winch assembly, a brake master/hydraulic push rod, a base, and a shroud. The structure adopts two-stage planetary gear transmission, high efficiency, convenient operation, low noise , safe and reliable braking.

MAIN PARAMETER OF

JD-2.5 Mining Dispatch Winch

Model specification

JD-1

JD-1.6

JD-2.5

JD-4

Wire rope static tension KN

10

16

25

40

Wire Rope speed (m/s)

Min.

0.433

0.733

1.16

0.95

Max.

1.033

1.399

1.45

1.48

Average

0.733

1.066

1.31

1.22

Wire Rope Size

Wire Rope Dia.(mm)

12.5

15

18.5

21.5

Length(m)

400

400

500

850

Drum Size mm

Φ224×304

Φ310×400

Φ620×580

Φ580×600

(Dia.×Width)(mm)

Total Reduction Ratio

41

32.5

42.24

32.75

Dimension

1120×766×727

1435×1217×1255

1830×1794×1390

2200×1965×1425

(mm)

Weight

542

1370

2500

3750

(with motor)(kg)

Explosion  motor

Model

YBJ-11.4

YBJ-25

YBJ-40

YBK-280M-6-

Power(KW)

11.4

25

40

55

Revolution(r/min)

1460

1465

1470

980

Voltage(V)

380/660

380/660

380/660

380/660

Electrical equipment

Explosion magnetic starter

Qc83-80N

Qc83-80N

Qc83-80N

BQZ-120N

Explosion control button

LA81-3

LA81-3

LA81-3

LA81-3

PHOTOS OF

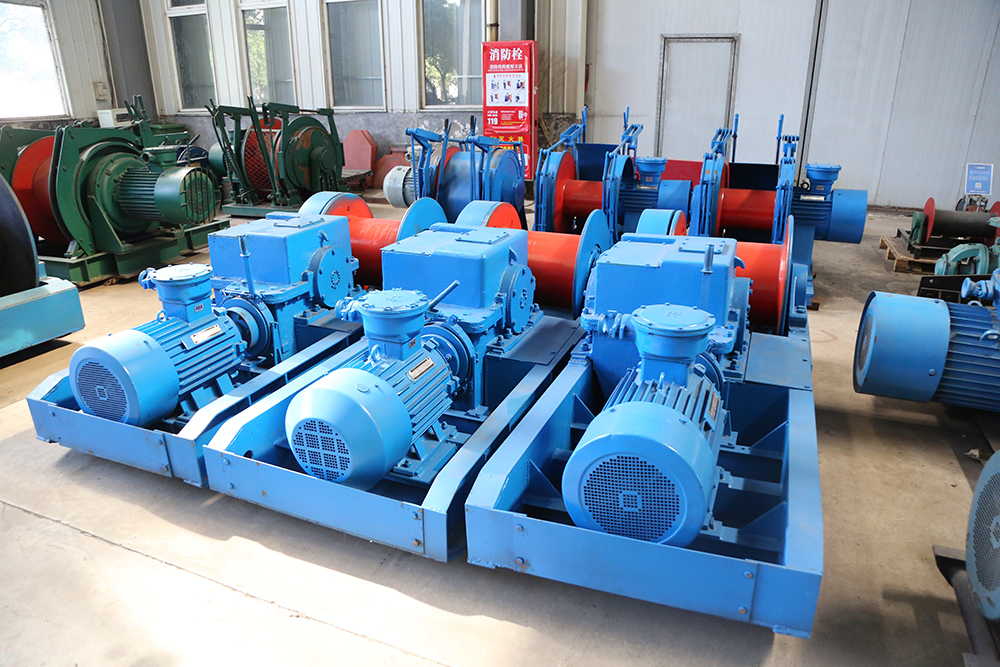

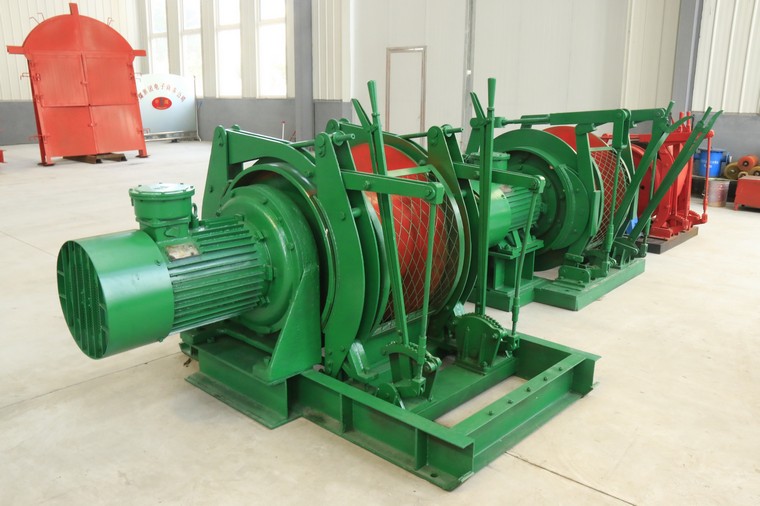

JD-2.5 Mining Dispatch Winch

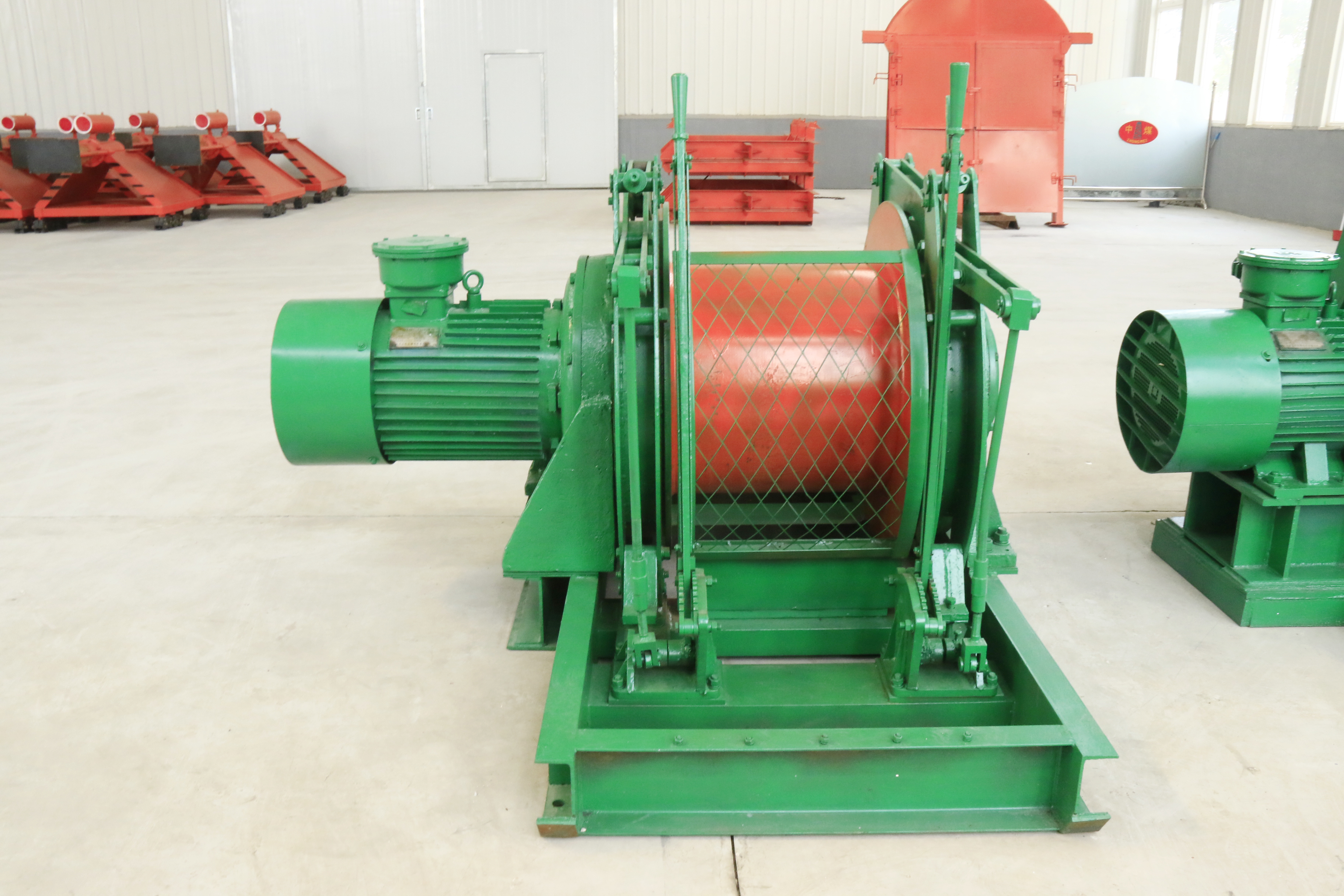

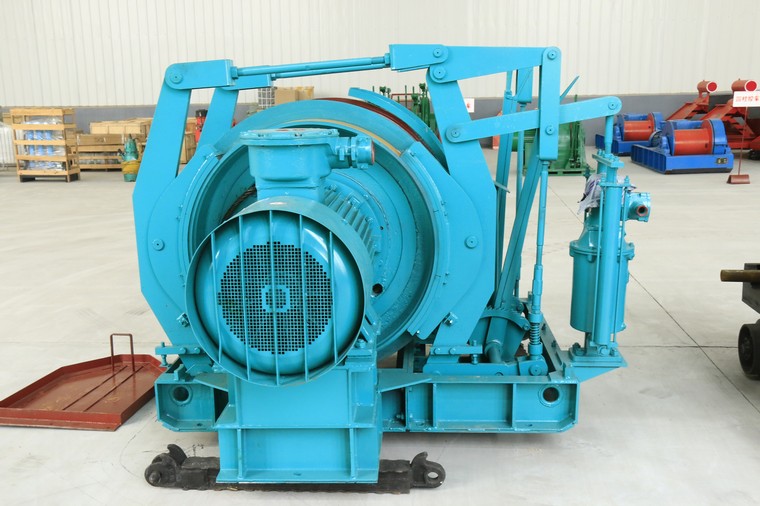

JD-2.5 Mining Dispatch Winch

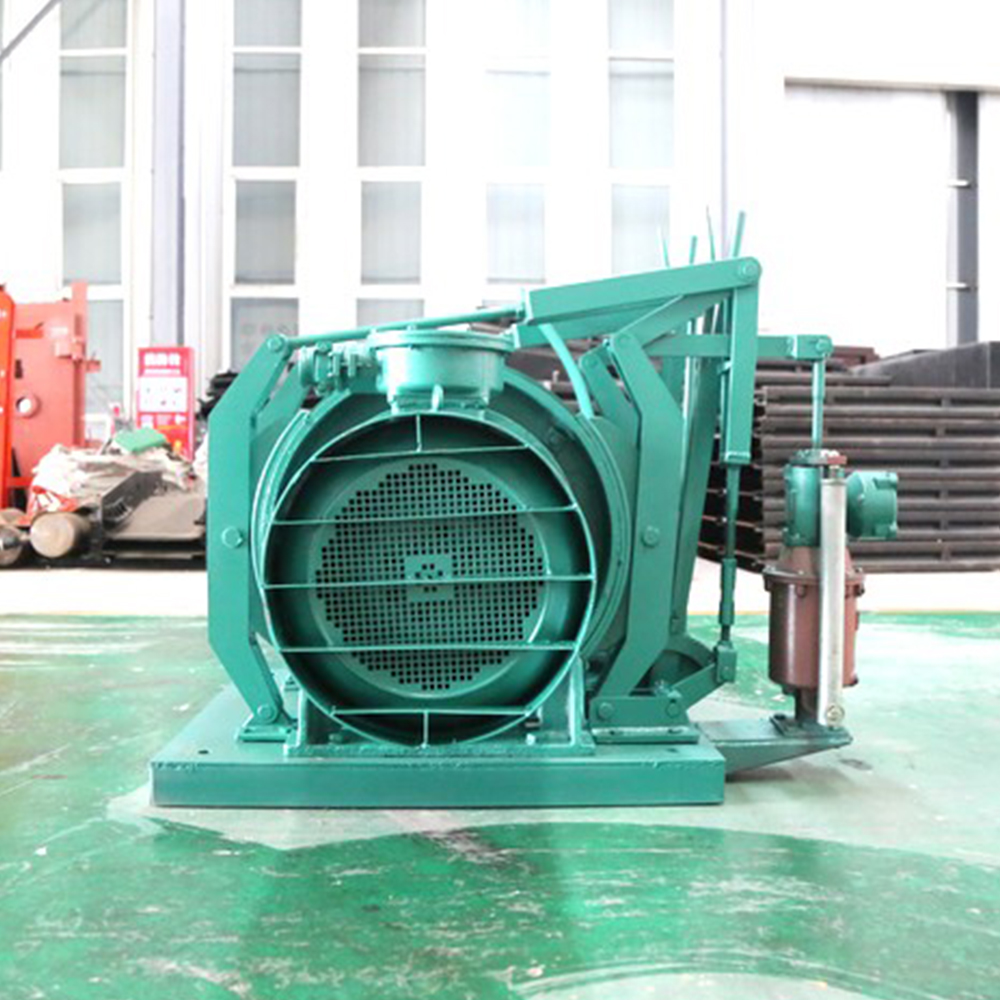

JD-2.5 Mining Dispatch Winch
PHOTOS OF

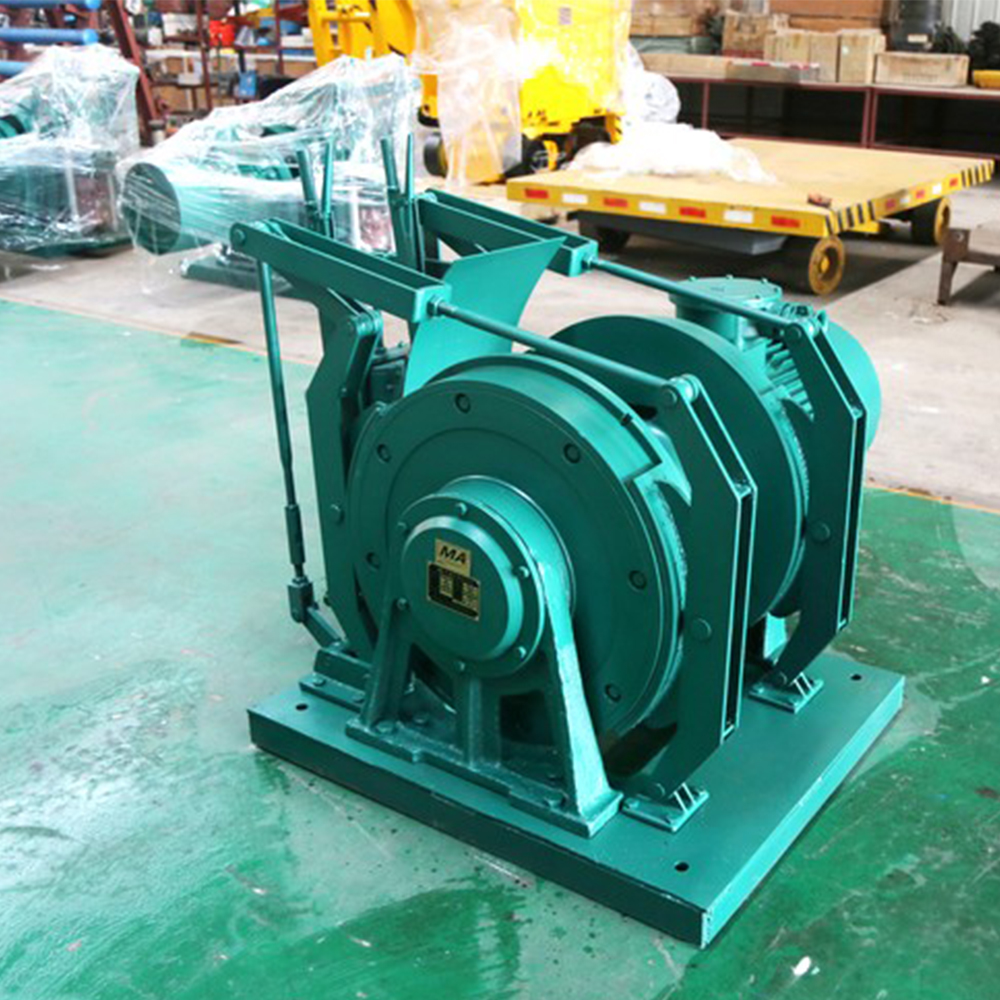

JD-2.5 Mining Dispatch Winch
