Adjustment Of Underground Mining Scraper Winch:

Date:2019-05-07     Label:

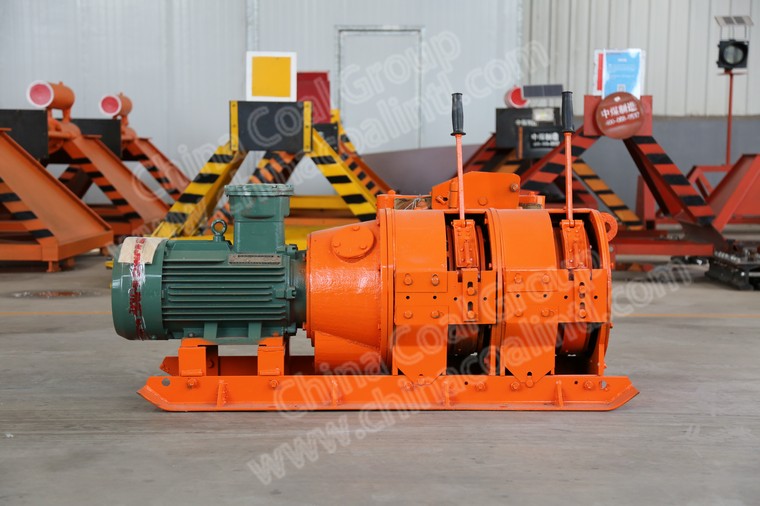

Underground Mining Scraper Winch

Mining Scraper Winch

Winch

After the Underground Mining Scraper Winch is installed, it is checked and adjusted.

1. Open gear transmission, the tooth side clearance is 0.42 mm, the contact area is not less than 40% along the tooth height, and the length of the tooth is not less than 50%.

2. Check whether the transmission system of the working brake is flexible and reliable, and adjust the clearance between the brake shoe and the brake wheel when the brake is released is not more than 0.7-0.8mm.

3. Check whether the transmission system of the Underground Mining Scraper Winch safety brake is flexible and reliable, and the clearance between the brake shoe and the brake wheel is not more than 1.5mm when the brake is released.

4. Check whether the control appliance of the Underground Mining Scraper Winch working brake and the safety brake is interlocked with the main motor, that is, the main motor working brake is released, the main motor is stopped, the working brake is braked, and only the safety brake is released to start the main motor.
