Seen in many engineering jobs. Therefore, many engineering operators will choose this method when they need a winch. Although the usage of Underground Mining Winch is high, the operator does not necessarily understand its structure, so we will explain the structure of Underground Mining Winch here.

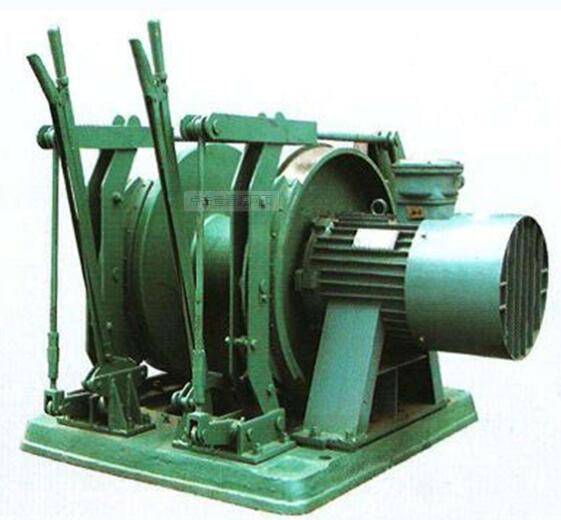

It is mainly used in underground parking lots of mines. Mining areas can also use intermediate roads and mining lanes to dispatch vehicles. Ground-assisted treatment was performed at the metallurgical mine construction site. The working principle of the mining winch: the motor provides the drum torque, the wire rope and the drum winding, and the braking device to control the operation and stop through the reducer system to meet the purpose of dispatching transportation materials. Underground Mining Winch main reel and planetary gear transmission, braking device, base, explosion-proof motor and other parts, Underground Mining Winch reduction mechanism uses two sets of internal gear transmission pair and a planetary gear system, installed on the car body on the reel Two sets of internal gear pairs. The shaft end of the mine winch is directly equipped with a motor gear, which reduces the volume of the winch and has a compact structure. Rolling bearings are used for each rotation of the winch, and two braking devices are installed on the winch. The brake on the motor side is used for the brake, and the brake on the large internal gear has the function of a clutch. When the brake is fully applied, the (planetary gear) gear rotates along the large internal gear to drive the drum to work. By alternating between the two brakes, the drag load can pass or stop at any desired position. Mining winches are mainly used for auxiliary processing of coal mines and underground mines, and mines with inclination angles of less than 30 degrees. They can also be used for mine movement and grouping at mining surfaces and loading stations.
Before starting Underground Mining Winch, make sure the voltage, current and hydraulic pressure are normal to ensure the operation of the equipment.
