About the structure of 2JP15 mining scraper winch
1. Application scenarios and uses of the model 2JP15 mining scraper winch
2JP15 mining scraper winch is mainly used for ore handling and filling operations in underground or open-pit in metal mines, coal mines and other mines. It is mainly used for horizontal raking, and can also be used for raking on slopes with a horizontal or inclination angle not greater than 44°, and cannot be used as a lifting device. The driver can operate it by hand next to the mining scraper winch, or use a button to perform distance operation from a few meters to tens of meters away from the mining scraper winch.
2. Structural description of model 2JP15 mining scraper winch

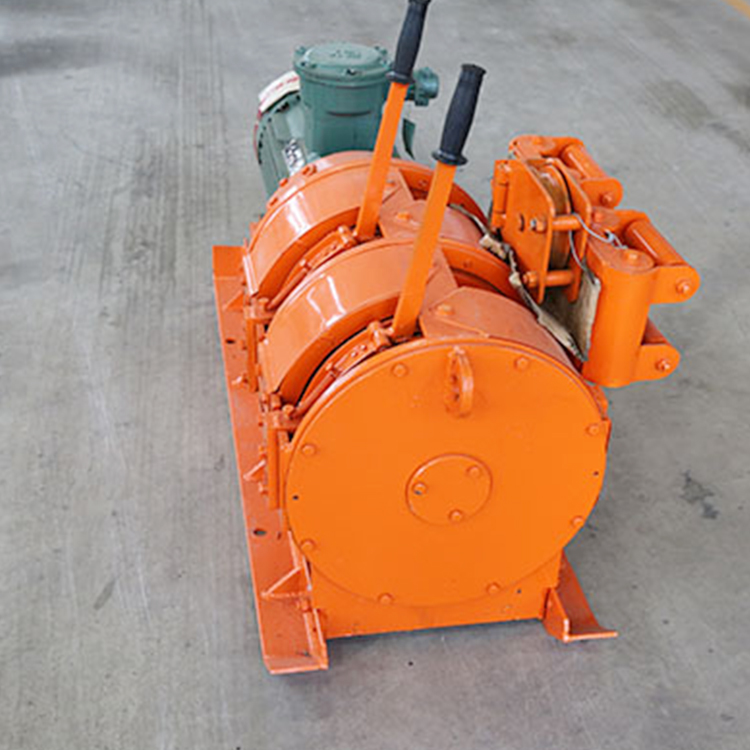

2JP15 mining scraper winch is composed of reduction device, main drum, auxiliary drum, control device, wire rope guide device and electric motor. These components are installed inside and outside the mining scraper winch shell, which is a component with good rigidity, which not only protects, supports, but also bears all loads.
The shell of the mining scraper winch is fixed on two slideways connected to the foundation with bolts.
The double drum mining scraper winch has a main drum (installed on the right side, that is, the side close to the motor) and a secondary drum (installed on the left side).
The three-drum mining scraper winch has one main drum (installed in the middle) and two auxiliary drums (installed on the left and right). The three-drum mining scraper winch can also be equipped with two main drums (installed on the right and middle) and a secondary drum (installed on the left), each drum has a corresponding control device and a wire rope guide device.
The above is the description of the structure of the 2JP15 mining scraper winch.
