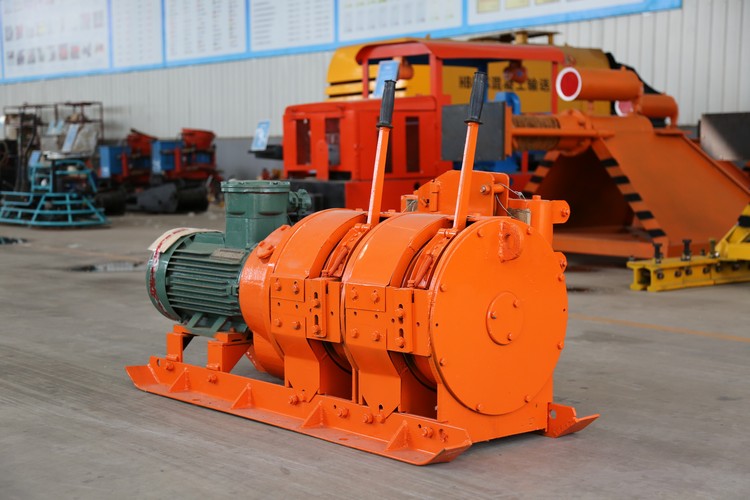

Installation of mining scraper winch installation method has temporary and long-term two kinds. Temporary installation can be used to support the top column or steel rod, long-term installation must be concrete foundation. The depth of the foundation depends on the installation of soil conditions, at least 500mm.
If re-installation of the gate belt should be noted in the manipulation of the handle release, the gate belt and the brake wheel between the appropriate gap to avoid overheating and excessive wear. After the installation is completed, check whether the fixed connections are firm and reliable. Turn the reel by hand 2~3 turns, flexible without jamming before wiring and driving.
A, before use must carefully read the "instruction manual".
B, the length of the wire rope should make the rake bucket in the end position, stay on the reel of the wire rope not less than 3 turns; C, the scraper winch guard, such as the winch, the wire rope should not be used.
C, underground mining scraper winch shroud such as sealing device to keep intact, so as not to gravel ore particles into the machine, accelerate the wear and tear of the parts; D, after the motor is started, strictly prohibit the use of the motor.
D, after the motor start, it is forbidden to press the two maneuvering handles at the same time; E, often check the lubrication parts.
E, often check the lubrication parts, if there is oil leakage, lack of oil, should be repaired in a timely manner and refueling to make up for it.
F, scraper winch normal work 1300 ~ 1600 children, should be overhauled once; G, the scraper winch groove winding
G, reel groove winding wire rope can not exceed the edge of the wheel.
H, scraper winch in the factory has added a good lubricant, do not need to refill before use, after 120 hours of normal operation, lubricant replacement.
