The working principle of a mine winch is primarily based on its mechanical and, in some cases, hydraulic design. Here's a detailed explanation of its working principle:
Mechanical Working Principle
1.Power Transmission:

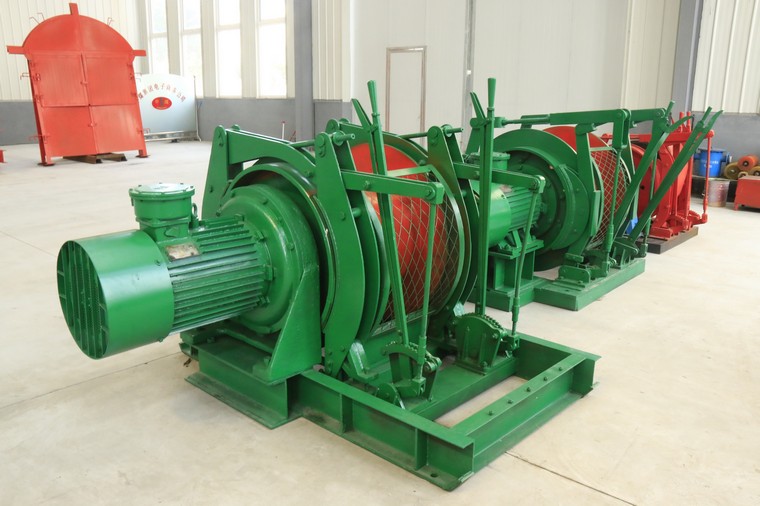

The Dispatch Winch is typically powered by an electric motor or a diesel engine.
The power is transmitted through gears, shafts, and pulleys to the drum of the winch.
2.Drum Rotation:
The drum of the winch rotates when power is applied.
The rotation of the drum causes the steel wire rope or chain to wind or unwind around it.
3.Load Handling:
The steel wire rope or chain is attached to the load that needs to be lifted, lowered, or moved.
As the drum rotates, the load is lifted or lowered depending on the direction of rotation.
Additional Features and Considerations
1.Braking System:
A reliable braking system is essential to prevent the load from moving unexpectedly.
Mechanical or hydraulic brakes are commonly used to control the movement of the drum.
2.Control System:
The Scraper Winch is equipped with a control system that allows the operator to control the speed and direction of the drum.The control system may include levers, buttons, or a joystick for easy operation.
3.Safety Mechanisms:
Safety mechanisms such as overload protection, emergency stops, and load-limiting devices are incorporated to ensure the safe operation of the mine winch.
Summary
The working principle of a mine winch is based on the transmission of power from a power source to the drum, which then rotates to wind or unwind the steel wire rope or chain. In some cases, a hydraulic system is used to assist in the lifting and lowering of loads. The mining winch is equipped with a control system and safety mechanisms to ensure safe and efficient operation.
