JH-20 Prop Pulling Winch

JH-20 Prop Pulling Winch

1.JH-20 prop pulling winch adopts spherical worm gear transmission, which has compact structure and small size. 2.The structure of the winch is symmetrically arranged, and it has a long strip shape.

Introduction of

JH-20 Prop Pulling Winch

1.JH-20 prop pulling winch adopts spherical worm gear transmission, which has compact structure and small size.

2.The structure of the winch is symmetrically arranged, and it has a long strip shape. The base is sled-shaped, so it is self-moving and smooth in the well.

3.The winch has a low center of gravity and the base is rigid. It can be used for both the top pillar and the ground anchor.

4.Easy to install, stable, safe and reliable.

Main Parameter of

JH-20 Prop Pulling Winch

Model

JH-20

Steel wire rope average static tension (KN)

200

Steel wire rope average speed (m/s)

0.12

Capacity (m)

170

Drum (diameter*width) mm

400x445 mm

Steel wire rope diameter (mm)

24.5

Total gear ratio

133.33

Motor

YB2-200L1-6

MotorPower (KW)

30

Speed (r/min)

970

Weight (kg)

1500

Supporting motor equipment

QBZ-80N mine explosion-proof (vacuum) electromagnetic starter or magnetic starter

BZA10-3 mine explosion-proof control button

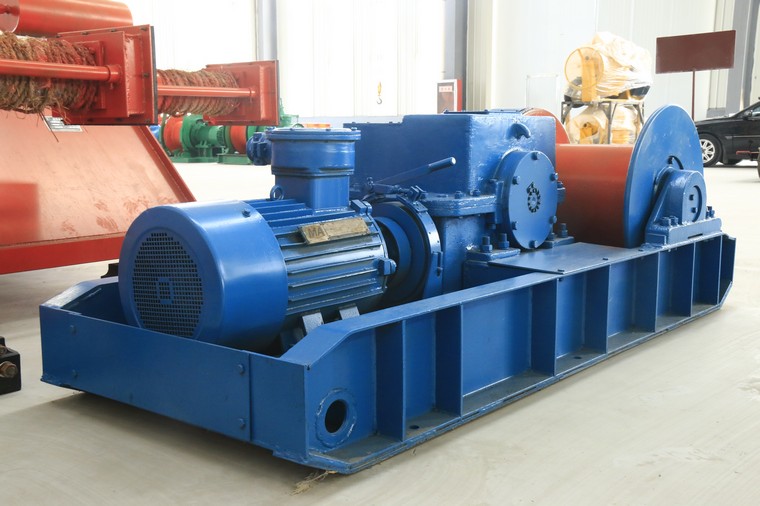

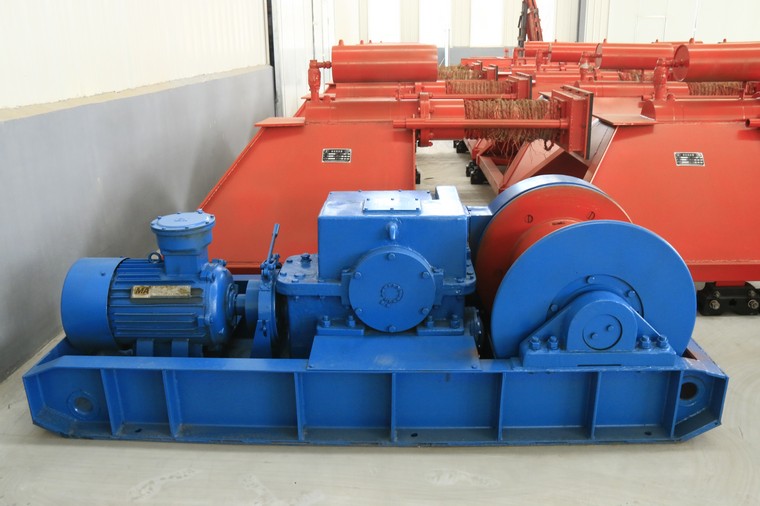

Photos Of

JH-20 Prop Pulling Winch

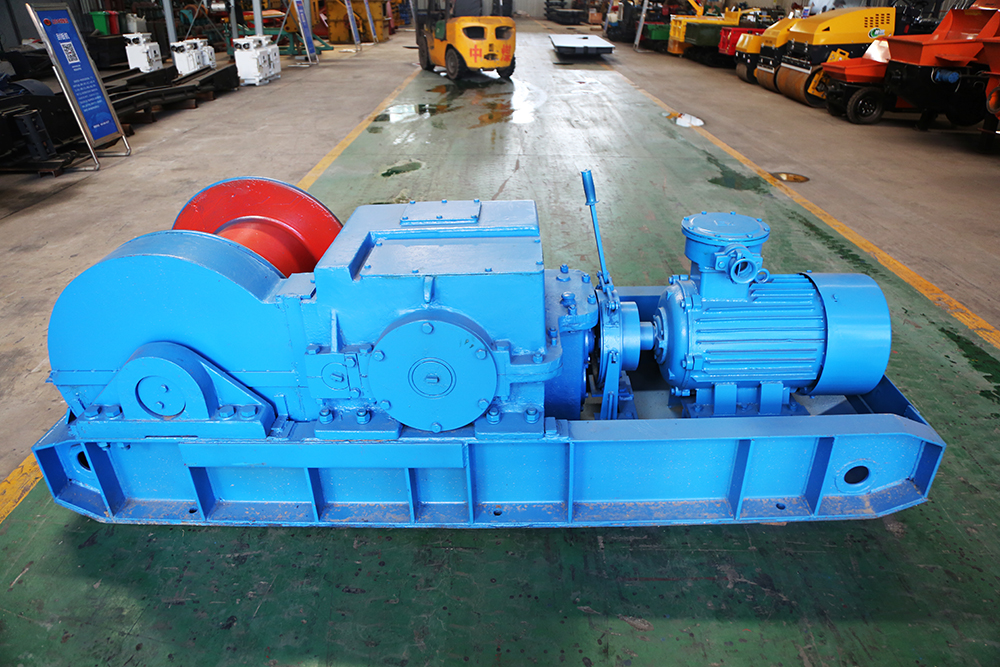

  • JH-20 Prop Pulling Winch

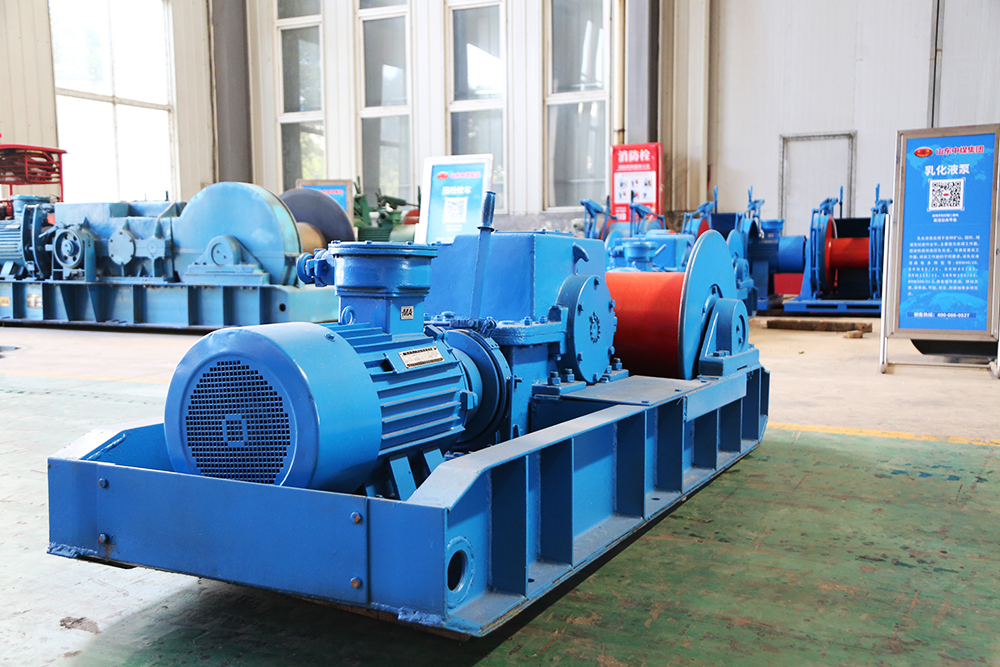

  • JH-20 Prop Pulling Winch
