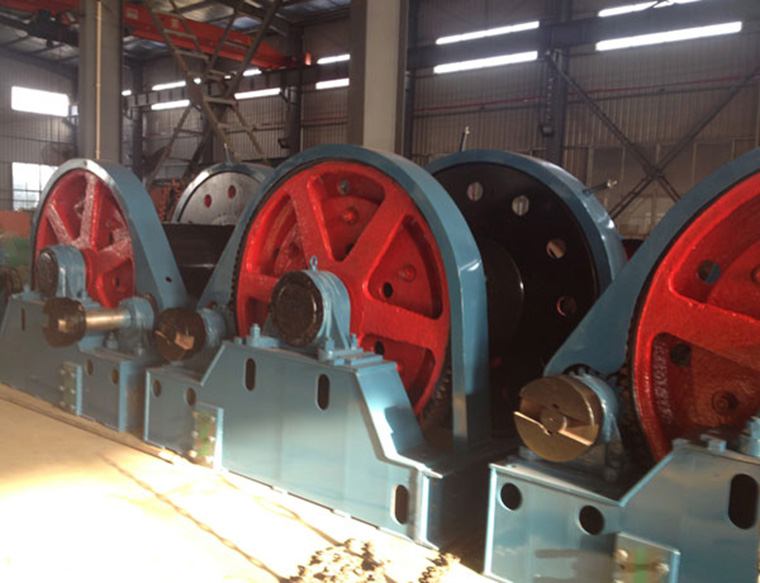

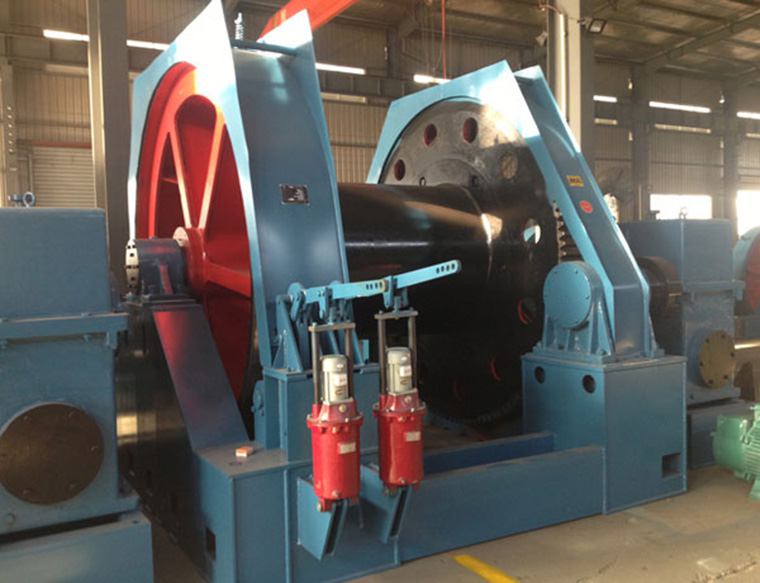

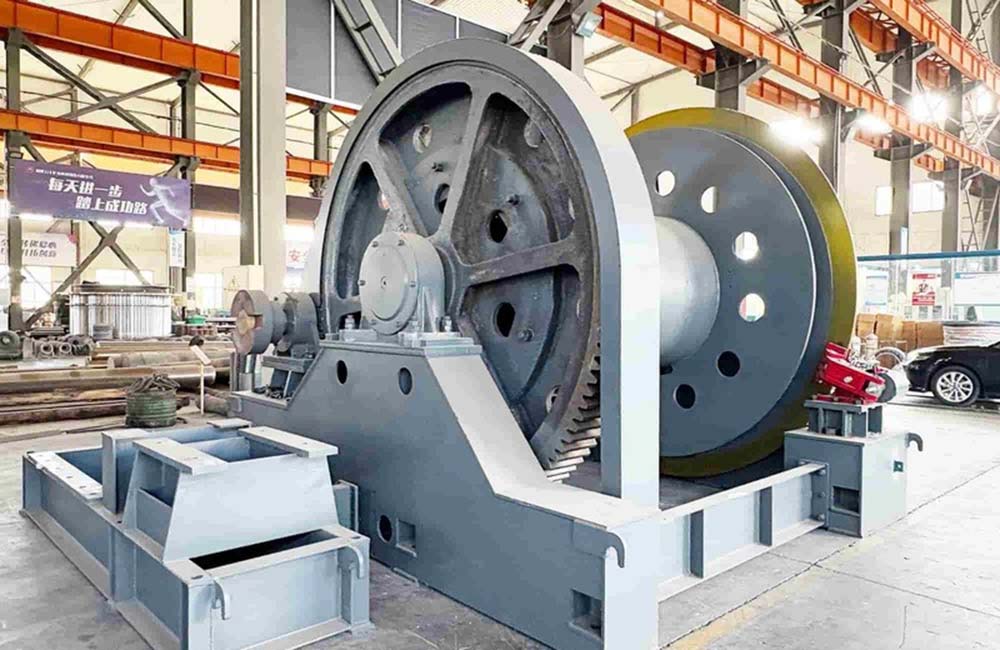

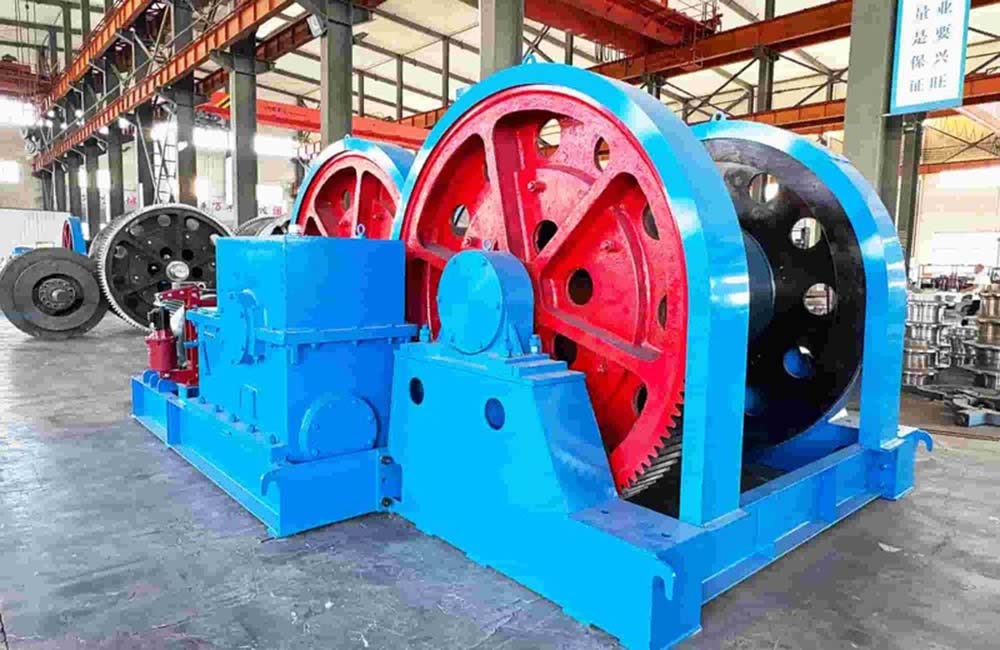

JZ2T-10/700 shaft sinking winch is a special two-speed shaft sinking winch derived from JZ10/600 winch. Compared with JZ10/600, it has the characteristics of fast speed and frequent starting.
Contact Us Product Center
JZ2T-10/700 shaft sinking winch is a special two-speed shaft sinking winch derived from JZ10/600 Mine Winch. Compared with JZ10/600, it has the characteristics of fast speed and frequent starting.
1. In the shaft engineering of coal mine, metal mine and non-metal mine, it is used for lifting large grab on long rope suspension grab machine or lifting large grab separately.
2. Suspension of heavy load and equipment in vertical shaft.
3. It can be used as lifting equipment for lifting and hauling heavy objects on the ground. It is more suitable for lifting heavy objects with frequent starting and reverse operation (its load sustainability rate is less than 40%).
MAIN PARAMETER OF|
Model: |
JZ-2T/10/700 |
|
Maximum static tension of wire rope (kN) |
100 |
|
Drum capacity (m): |
700 |
|
Drum diameter(mm): |
800 |
|
Reel length(mm): |
1050 |
|
Wire rope winding layer: |
seven layers |
|
Specification and type of wire rope: |
D-6 * 19+131 |
|
Average speed of wire rope(m/s) |
Fast 0.34 slow0.13 |
|
Motor power (KW) |
45 |
|
Motor speed(r/min): |
580 |
|
Outline size (L*W*H) (mm) |
3240 *3222 *1740 |
|
Total weight (excluding wire rope) (kg) |
8617 |
