The basic working principle of the use and operation of the mining scraper winch

The basic working principle of the use and operation of the mining scraper winch——

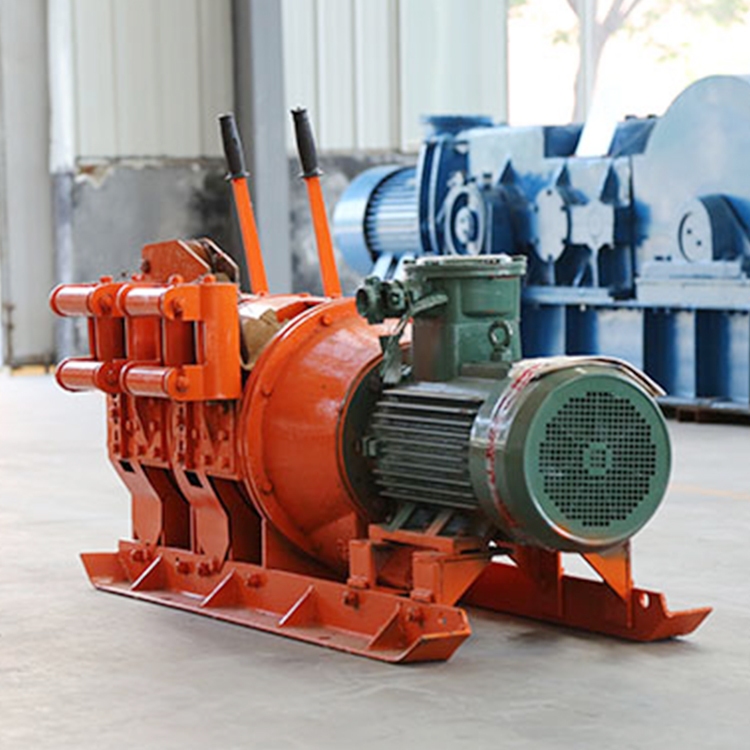

In the application of mining, the mining scraper winch is an indispensable machine, which can be said to play an important role in the development of mining. The mining scraper winch mainly has these kinds of structural devices, including the reduction device, the main drum, the auxiliary drum, the control device, the wire rope guide device and the motor. These components are installed inside and outside the shell of the mining scraper winch.

The basic working principle of the mining scraper winch
1. When the mining scraper winch starts to work, after the motor is started, when all the internal gears are not locked, all the internal gears rotate, and the drum does not move under the action of the steel rope and the raking bucket.
2. One of the internal gears of the mining scraper winch is locked by the control device, then the corresponding drum of the rake winch will rotate and wrap the rope, and at the same time, it will also drive the rake bucket to move.
3. At this time, the other gear of the mining scraper winch is not locked, and the drum is driven by the steel rope to rotate and release the steel rope, and the rake bucket on the rake winch can reciprocate for raking work.
The above is the basic working principle of the use and operation of the mining scraper winch.
